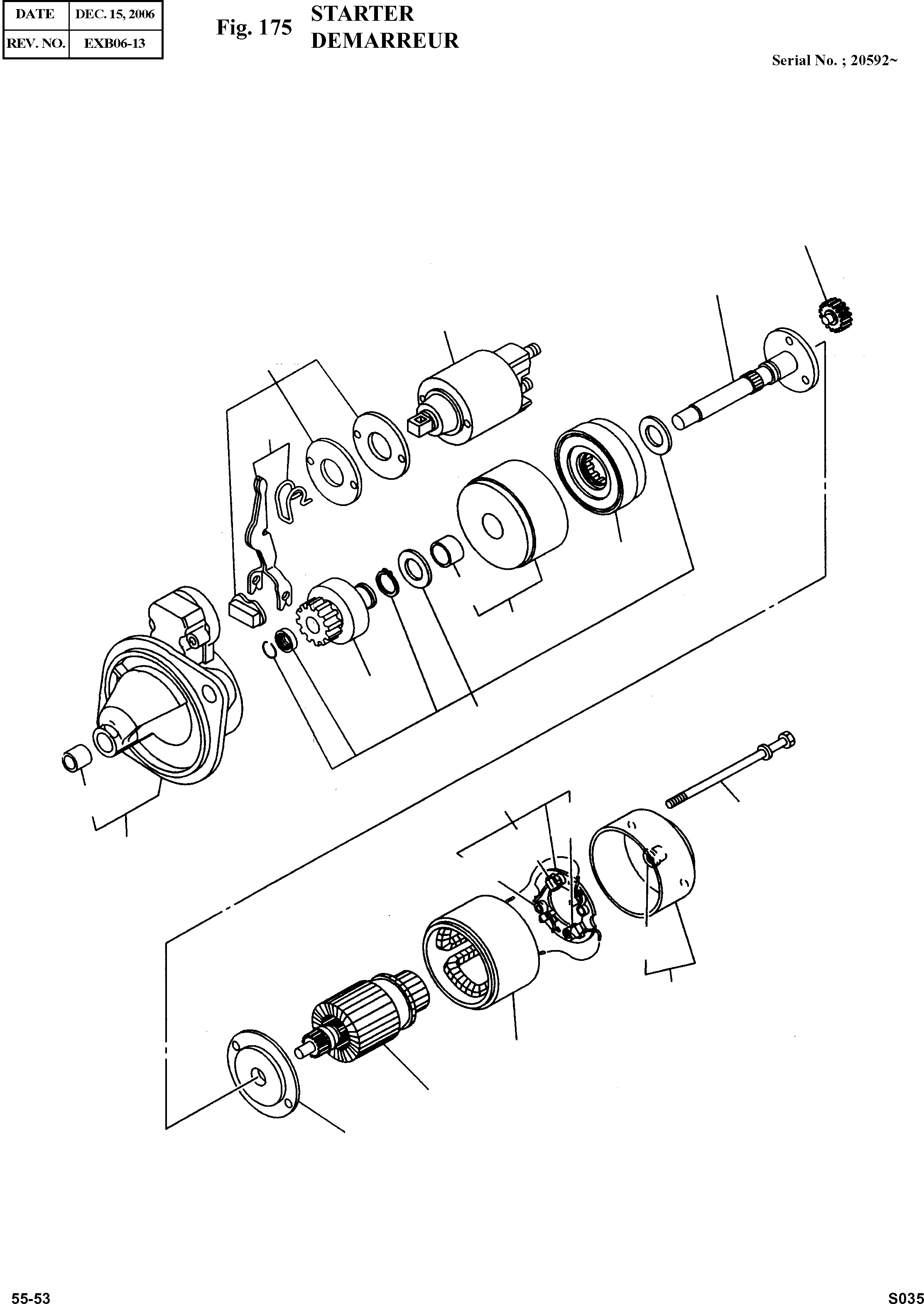

Запчасти Doosan Daewoo STARTER ENGINE PARTS

2

586400-2310

CASE;PINION

desc: CAS

1шт.

3

586400-0090

METAL;PINION

desc: METAL

1шт.

8A

586400-2290

BRACKET

desc: SUPPORT

1шт.

8B

586400-2300

BRACKET

desc: SUPPORT

1шт.

10

586400-2650

SHAFT;GEAR

desc: AXE

1шт.

13

586400-2220

YOKE

desc: JOUG

1шт.

16

586400-2210

ARMATURE;STARTER

desc: ARMATURE

1шт.

20

586400-2240

BRUSH;STARTER

desc: BROSSE

2шт.

21

586400-2260

BRACKET

desc: SUPPORT

4шт.

22

586400-2230

HOLDER

desc: SUPPORT

1шт.

27

586400-1170

BOLT;THROUGH

desc: BOULON A 6 PANS

2шт.

28

586400-2320

LEVER

desc: LEVIER

1шт.

31

586400-2520

SWITCH

desc: AVERTISSEUR

1шт.

37

586400-2280

METAL

desc: COUSSINET

1шт.

50

586400-2250

BRUSH;STARTER

desc: BROSSE

1шт.

51

586400-2330

COVER

desc: COUVERCLE

1шт.

55

586400-2640

PINION

desc: PIGNON

1шт.

57

586400-2270

COVER

desc: COUVERCLE

1шт.

69

586400-2610

METAL;CENTER BRACKET

desc: METAL

1шт.

97A

586400-0210

GEAR;STARTER

desc: PIGNON

3шт.

97B

586400-2620

GEAR;STARTER

desc: PIGNON

1шт.

123

586400-2670

WASHER

desc: CALE

1шт.
