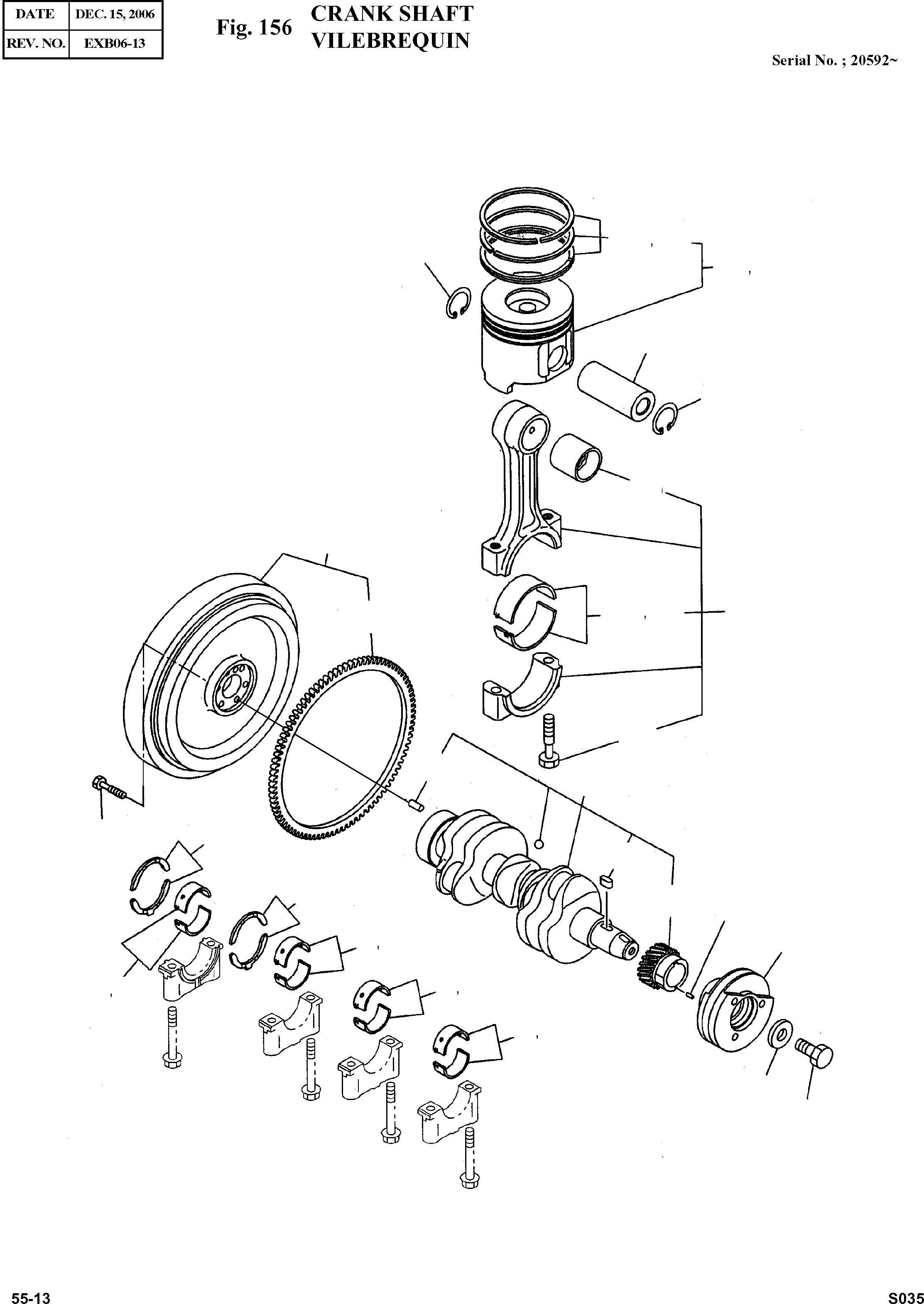

Запчасти Doosan Daewoo CRANK SHAFT ENGINE PARTS

1

586401-0510

CRANKSHAFT ASS'Y

desc: VILEBREQUIN

1шт.

10

586400-1260

METAL SET;MAIN

desc: ENSEMBLE EN METAL

4шт.

12

586400-3780

FLYWHEEL ASS'Y

desc: VOLANT

1шт.

18

586400-1450

PULLEY;CRANKSHAFT

desc: POULIE DE VILEBREQUIN

1шт.

28

586400-9460

GEAR;CRANKSHAFT

desc: PIGNON

1шт.

35

586400-0900

GEAR;RING

desc: PIGNON

1шт.

40

586400-0970

BOLT

desc: BOULON A 6 PANS

6шт.

42

586400-1890

WASHER;THRUST

desc: RONDELLE DE BUTEE

2шт.

42

586400-1900

WASHER;THRUST (0.25)

SC: OS

2шт.

48

586400-2950

KEY;WOODRUFF

desc: CLE

1шт.

57

586400-2930

PIN;PULLEY

desc: GOUPILLE

1шт.

58

586400-1050

BOLT

desc: BOULON A 6 PANS

1шт.

59

586400-2780

WASHER

desc: CALE

1шт.

68

586401-3240

RING SET;PISTON

desc: ENSEMBLE D'ANNEAU

3шт.

71

586401-3260

RING SET;PISTON (0.25)

SC: OS

3шт.

73

586400-2010

METAL;CONNECTING ROD

desc: METAL

3шт.

74

586400-2020

METAL;CONNECTING ROD (0.25)

SC: US

3шт.

83

586400-2140

PIN;PISTON

desc: AXE DE PISTON

3шт.

84

586400-3530

CONNECTING ROD ASS'Y

desc: BIELLE ASS'Y

3шт.

85

586400-1750

BUSHING;CONNROD

desc: DOUILLE

3шт.

86

586400-1040

BOLT;CONNROD

desc: BOULON A 6 PANS

6шт.

101

586400-1710

PIN;CRANKSHAFT

desc: GOUPILLE

1шт.

126

586400-2920

RING;SNAP

desc: CIRCLIP

6шт.

148

586400-1880

METAL SET;MAIN

SC: US

4шт.

174

586401-3230

PISTON SET

desc: PISTON

3шт.

175

586401-3250

PISTON SET (0.25)

SC: OS

3шт.
