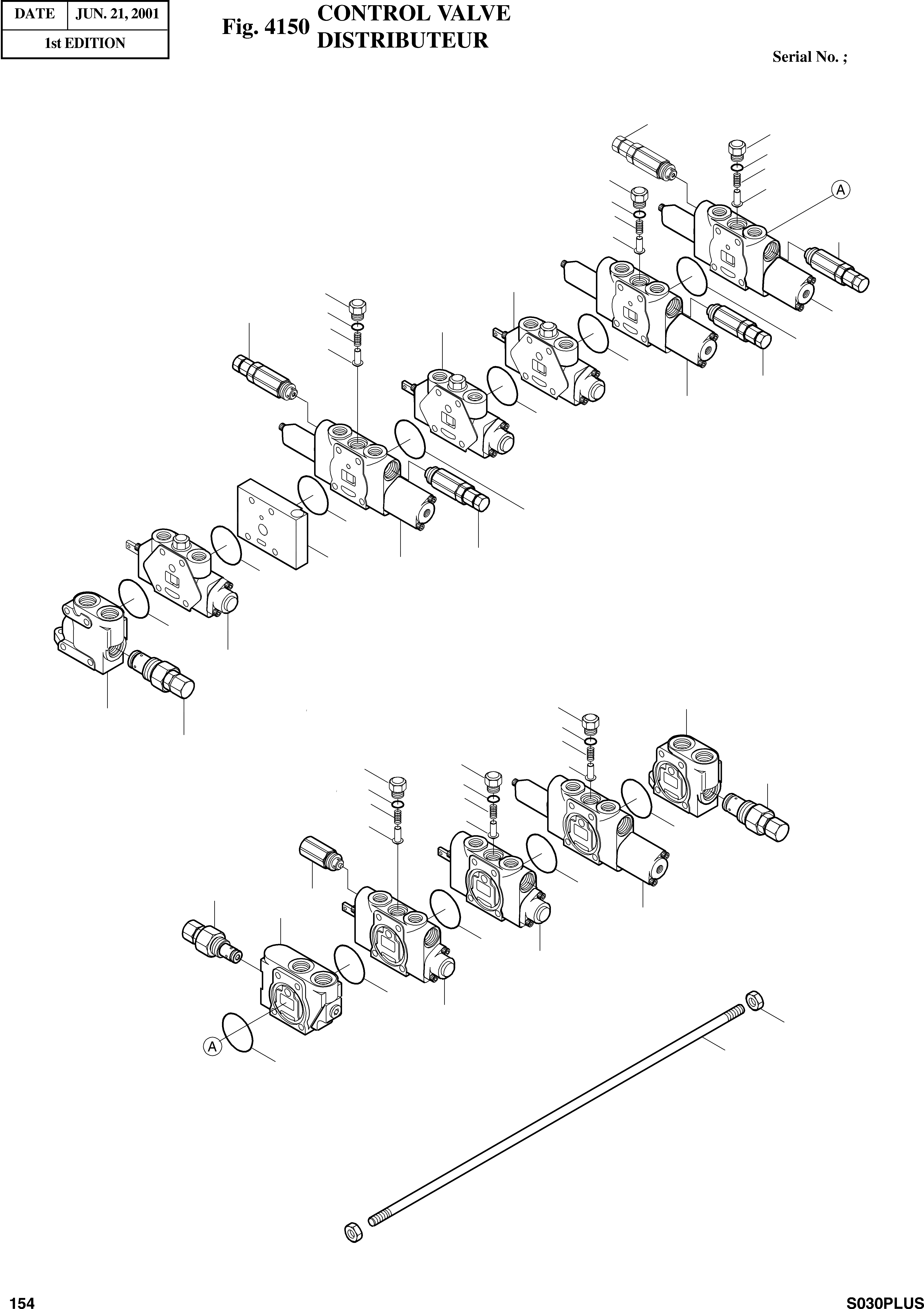

Запчасти Doosan Daewoo CONTROL VALVE LOW PIPING(2)

-

426-00207

CONTROL VALVE ASS'Y

desc: DISTRIBUTEUR

1шт.

1

4-01-506

INLET ASS'Y(A1R)

desc: ENSEMBLE ENTREE

1шт.

1-2

1-56-755

O-RING 1BG-55

desc: . JOINT TORIQUE

1шт.

1-5

4-02-501-200

MAIN RELIEF VALVE

desc: . CARTER

1шт.

2

4-01-50801

BLOCK ASS'Y-TRAVEL

desc: BLOC

1шт.

2-13

1-55-755

O-RING

desc: . JOINT TORIQUE

1шт.

3

4-01-598

SUB BLOCK ASS'Y

desc: BLOC

1шт.

4

4-01-51802

BLOCK ASS'Y-ARM

desc: BLOC

1шт.

4-8

2-05-508

POPPET-L/C

desc: . SOUPAPE SOULEVANTE

1шт.

4-9

1-51-512

SPRING-L/C

desc: . RESSORT

1шт.

4-10

1-53-014

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

4-11

2-09-504

PLUG-L/C

desc: . BOUCHON

1шт.

4-12

1-56-755

O-RING 1BG-55

desc: . JOINT TORIQUE

1шт.

4-13

4-02-502-235

OVERLOAD RELIEF VALVE

desc: . VANNE

2шт.

5

4-01-50802

BLOCK ASS'Y-PTO

desc: BLOC

1шт.

5-13

1-55-755

O-RING

desc: . JOINT TORIQUE

1шт.

6

4-01-51501

BLOCK ASS'Y-TRAVEL

desc: BLOC

1шт.

6-13

1-55-755

O-RING

desc: . JOINT TORIQUE

1шт.

7

4-01-51801

BLOCK ASS'Y-BUCKET

desc: BLOC

1шт.

7-8

2-05-508

POPPET-L/C

desc: . SOUPAPE SOULEVANTE

1шт.

7-9

1-51-512

SPRING-L/C

desc: . RESSORT

1шт.

7-10

1-53-014

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

7-11

2-09-504

PLUG-L/C

desc: . BOUCHON

1шт.

7-12

1-56-755

O-RING 1BG-55

desc: . JOINT TORIQUE

1шт.

7-13

4-02-502-235

OVERLOAD RELIEF VALVE

desc: . VANNE

1шт.

8

4-01-51803

BLOCK ASS'Y-BOOM

desc: BLOC

1шт.

8-8

2-05-508

POPPET-L/C

desc: . SOUPAPE SOULEVANTE

1шт.

8-9

1-51-512

SPRING-L/C

desc: . RESSORT

1шт.

8-10

1-53-014

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

8-11

2-09-504

PLUG-L/C

desc: . BOUCHON

1шт.

8-12

1-56-755

O-RING 1BG-55

desc: . JOINT TORIQUE

1шт.

8-13

4-02-502-235

OVERLOAD RELIEF VALVE

desc: . VANNE

2шт.

9

4-01-53901

INLET ASS'Y(P2)

desc: ENSEMBLE ENTREE

1шт.

9-2

1-56-755

O-RING 1BG-55

desc: . JOINT TORIQUE

1шт.

9-5

4-02-501-200

MAIN RELIEF VALVE

desc: . CARTER

1шт.

10

4-01-51502

BLOCK ASS'Y-BOOM SWING

desc: BLOC

1шт.

10-11

1-51-512

SPRING-L/C

desc: . RESSORT

1шт.

10-12

2-05-508

POPPET-CHECK

desc: . SOUPAPE SOULEVANTE

1шт.

10-13

1-53-014

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

10-14

2-09-504

PLUG-L/C

desc: . BOUCHON

1шт.

10-15

1-55-755

O-RING

desc: . JOINT TORIQUE

1шт.

10-16

4-01-501

ANTI VOID VALVE

desc: . VANNE

1шт.

11

4-01-50803

BLOCK ASS'Y-DOZER

desc: BLOC

1шт.

11-11

1-51-512

SPRING-L/C

desc: . RESSORT

1шт.

11-12

2-05-508

POPPET-CHEK

desc: . SOUPAPE SOULEVANTE

1шт.

11-13

1-53-014

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

11-14

2-09-504

PLUG-L/C

desc: . BOUCHON

1шт.

11-15

1-55-755

O-RING

desc: . JOINT TORIQUE

1шт.

12

4-01-51001

BLOCK ASS'Y-SWING

desc: BLOC

1шт.

12-8

2-05-508

POPPET-L/C

desc: . SOUPAPE SOULEVANTE

1шт.

12-9

1-51-512

SPRING-L/C

desc: . RESSORT

1шт.

12-10

1-53-014

O-RING 1BP-14

desc: . JOINT TORIQUE

1шт.

12-11

2-09-504

PLUG-L/C

desc: . BOUCHON

1шт.

12-12

1-56-755

O-RING 1BG-55

desc: . JOINT TORIQUE

1шт.

13

4-01-504

INLET ASS'Y(A1)

desc: ENSEMBLE ENTREE

1шт.

13-2

1-56-755

O-RING 1BG-55

desc: . JOINT TORIQUE

1шт.

13-5

4-02-501-165

MAIN RELIEF VALVE

desc: . CARTER

1шт.

17

S4010503

NUT

desc: ECROU

8шт.

18

2-20-50201

BOLT;TIE

desc: BOULON A 6 PANS

4шт.
