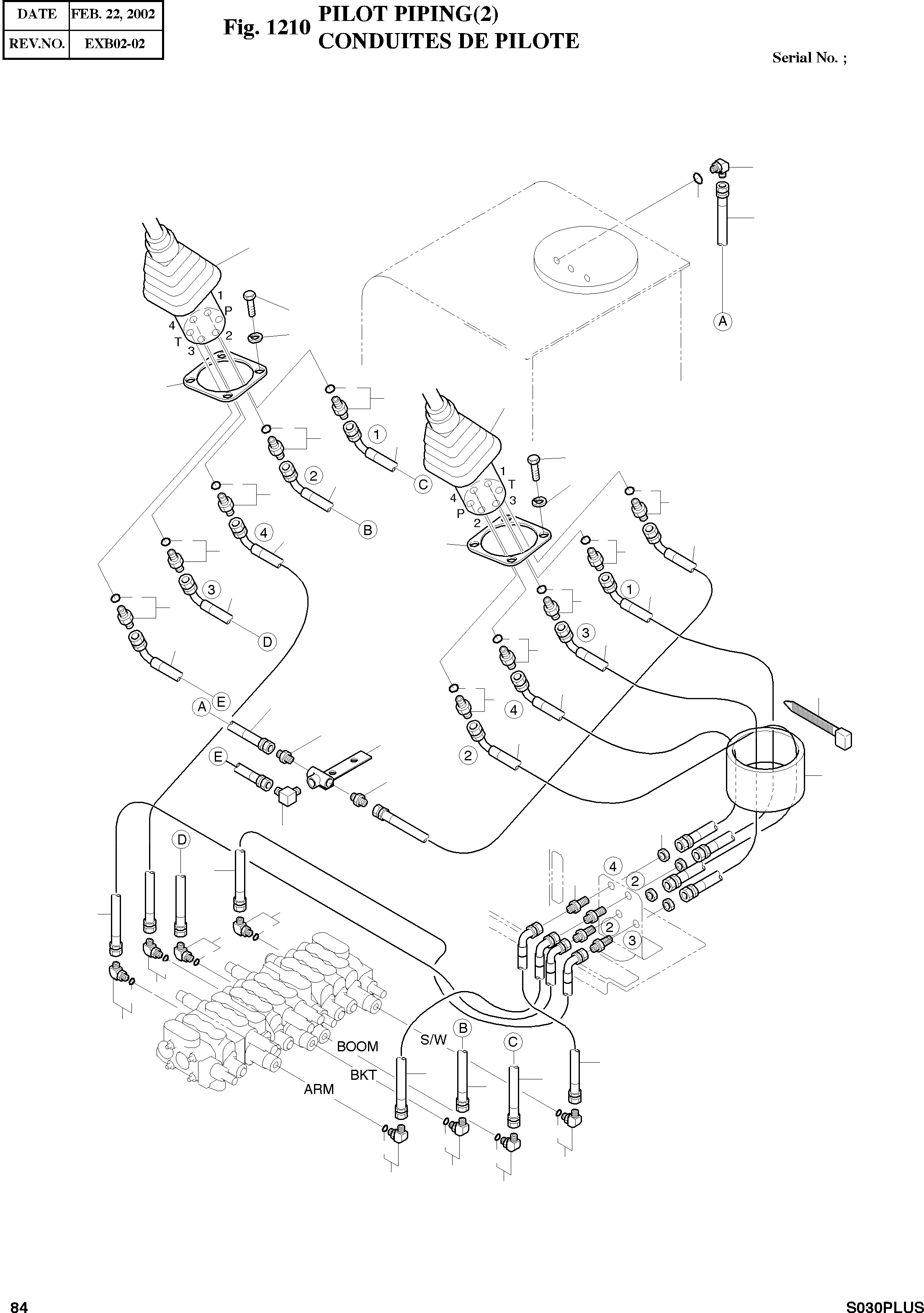

Запчасти Doosan Daewoo PILOT PIPING(2) UPPER STRUCTURE

-

2400-7094

PILOT PIPING(2)

SERIAL: 1001-1054

-2шт.

-

2400-2023

PILOT PIPING(2)

SERIAL: 1055

-2шт.

1

2181-1702D4

ELBOW

desc: COUDE

8шт.

2

S8000111

O-RING

desc: JOINT TORIQUE

8шт.

3

DS2067044

HOSE PF1/4-1850L

desc: TUYAU FLEXIBLE

1шт.

4

DS2067044

HOSE PF1/4-1850L

desc: TUYAU FLEXIBLE

1шт.

5

DS2067046

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

6

2181-1126D14

ADAPTER

desc: RACCORD

10шт.

7

S8000111

O-RING

desc: JOINT TORIQUE

10шт.

8

2181-1110D38

CONNECTOR

desc: RACCORD ADAPTATEUR

2шт.

9

2181-1186D1

ELBOW

desc: COUDE

1шт.

10

2184-1026D3

HOSE

desc: TUYAU FLEXIBLE

1шт.

11

2181-1702D4

ELBOW

desc: COUDE

1шт.

12

2184-1046D68

HOSE

desc: TUYAU FLEXIBLE

4шт.

13

2181-2602

NIPPLE;HOSE

SERIAL: 1001-1054

4шт.

13

2181-2602A

NIPPLE;HOSE

SERIAL: 1055

4шт.

14

2121-1260

NUT

desc: ECROU

4шт.

15

DS2067040

HOSE PF1/4-860L

desc: TUYAU FLEXIBLE

2шт.

16

182-00101

DRAIN MANIFOLD

desc: COLLECTEUR

1шт.

17

S8000111

O-RING

desc: JOINT TORIQUE

1шт.

18

DS2067041

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

19

2161-2117

PLATE;RUBBER

desc: CAOUTCHOUC

4шт.

20

DS2067042

HOSE PF1/4-1920L

desc: TUYAU FLEXIBLE

1шт.

21

DS2067043

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

22

2124-1084D3

CLIP;BAND

desc: ATTACHE

10шт.

23

2420-9615

VALVE;JOY STICK(R.H)

desc: COMMAND DE DISTANCE

1шт.

24

2420-9616

VALVE;JOY STICK(L.H)

desc: COMMAND DE DISTANCE

1шт.

25

S0505053

BOLT M6X1.0X25L

desc: BOULON A 6 PANS

8шт.

26

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

27

2621-2752

PLATE

desc: PLAQUE

2шт.

28

DS2067039

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

2шт.
