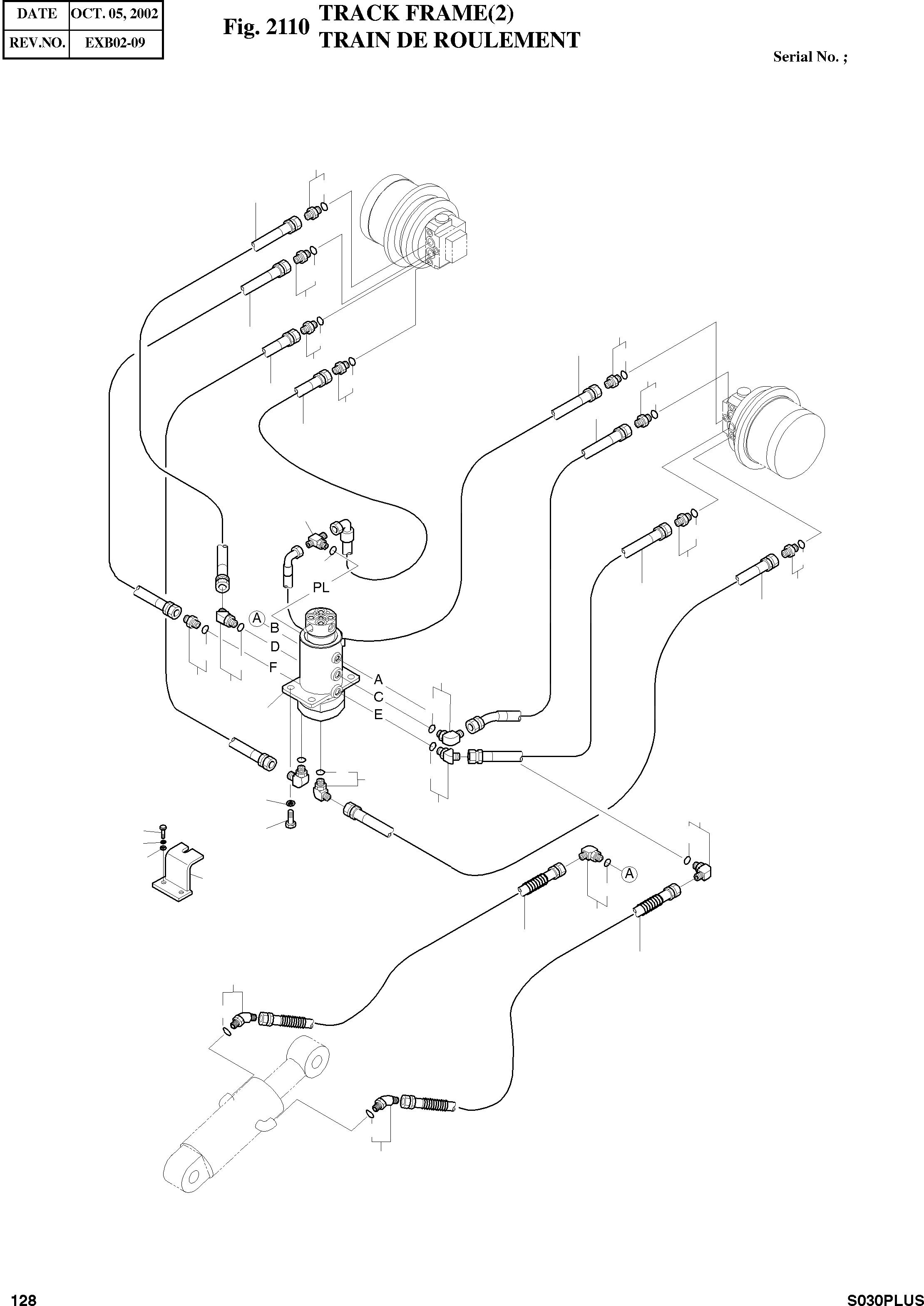

Запчасти Doosan Daewoo TRAVELING PIPING UNDER STRUCTURE

1

2181-1702D4

ELBOW

desc: COUDE

4шт.

2

S8000111

O-RING

desc: JOINT TORIQUE

4шт.

3

2181-2419D3

ELBOW

desc: COUDE

1шт.

4

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

5

2181-1126D6

NIPPLE;HOSE

desc: RACCORD

1шт.

6

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

7

2181-1126D6

NIPPLE;HOSE

desc: RACCORD

4шт.

8

S8000181

O-RING

desc: JOINT TORIQUE

4шт.

9

2181-1126D14

NIPPLE;HOSE

desc: RACCORD

4шт.

10

S8000111

O-RING

desc: JOINT TORIQUE

4шт.

11

2181-2419D1

NIPPLE;HOSE

desc: COUDE

2шт.

12

S8000111

O-RING

desc: JOINT TORIQUE

2шт.

13

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

14

2181-2419D3

ELBOW

desc: COUDE

1шт.

15

2181-2281D1

TEE

desc: TE

1шт.

16

S8000111

O-RING

desc: JOINT TORIQUE

1шт.

17

2184-1046D50

HOSE PF1/4-1070L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1046D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

19

2184-1054D66

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

2шт.

20

2184-1026D309

HOSE PF1/2-960L

desc: TUYAU FLEXIBLE

3шт.

21

2184-1026D338

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

2шт.

22

2181-1702D50

ELBOW 1/2X1/2

desc: COUDE

1шт.

23

2184-1060D159

HOSE PF1/2-960L

desc: TUYAU FLEXIBLE

1шт.

24

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

4шт.

25

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

26

2197-1413B

PLATE;STOPPER

desc: PLAQUE

1шт.

27

S0515253

BOLT

desc: BOULON A 6 PANS

2шт.

28

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

29

S5010713

WASHER

desc: RONDELLE

2шт.

30

2480-1016

CENTER JOINT ASS'Y

desc: TOURILLON PIVOTANT

1шт.
