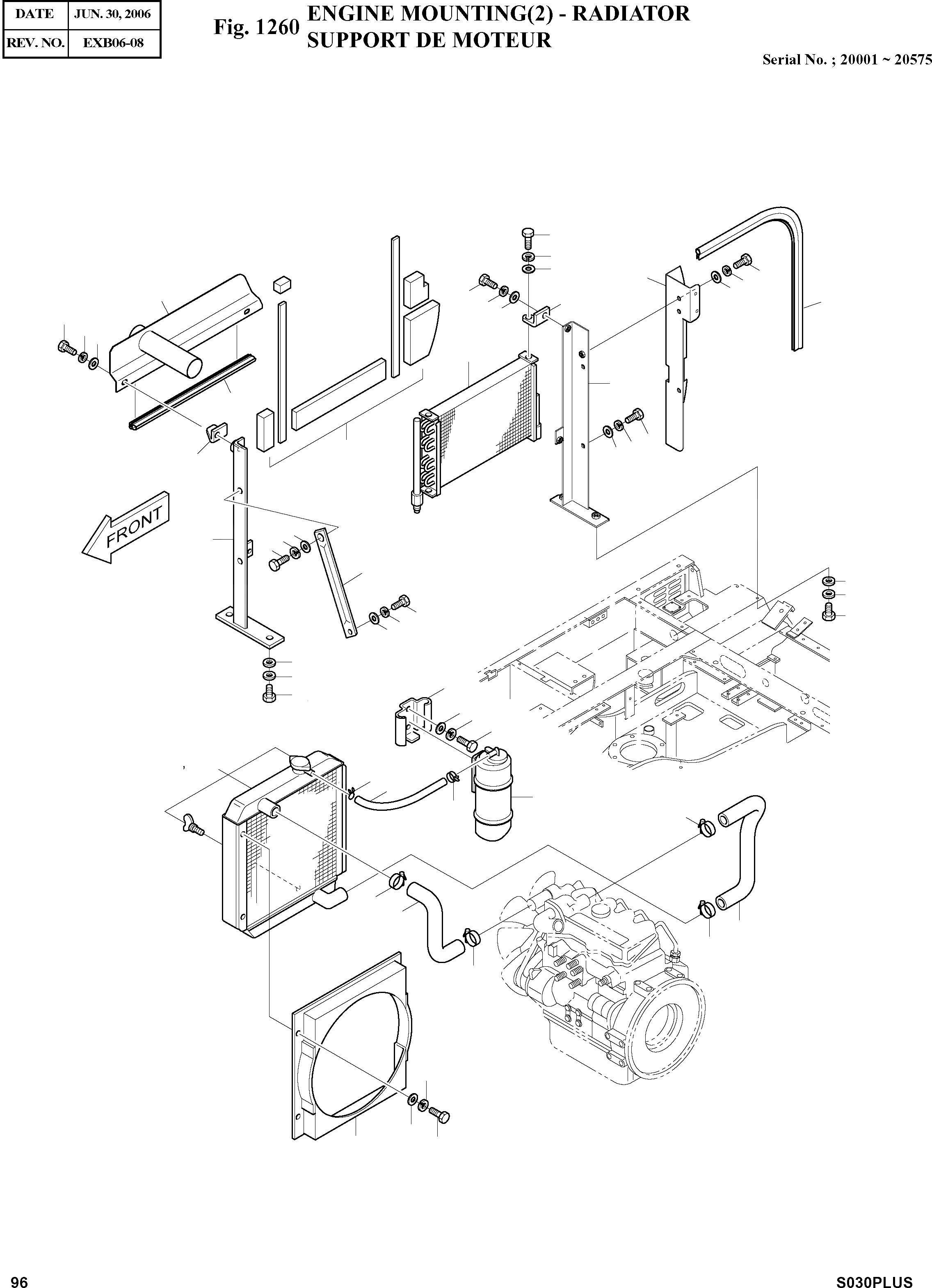

Запчасти Doosan Daewoo ENGINE MOUNTING(2) - RADIATOR UPPER STRUCTURE

-

201-00086

ENGINE MOUNT

SERIAL: 20001-20575

-2шт.

6

S0512053

BOLT M10X1.5X25

desc: BOULON A 6PANS

4шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

14

2197-1226A

BRACKET;RADIATOR(L.H)

desc: SUPPORT

1шт.

15

2114-1058D10

WASHER M10

desc: RONDELLE PLATE

4шт.

16

2197-1225A

BRACKET;RADIATOR(R.H)

desc: SUPPORT

1шт.

17

6202-6001

RADIATOR

desc: RADIATEUR

1шт.

17A

1041-013-5100

CAP;RADIATOR

desc: . CHAPEAU

1шт.

18

S0508853

BOLT M8X1.25X20

desc: BOULON A 6PANS

8шт.

19

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

13шт.

20

S5010513

WASHER;PLAIN M8

desc: RONDELLE

13шт.

21

2205-1012

SHROUD

desc: GARDE

1шт.

22

S0504453

BOLT M6X1.0X12

desc: BOULON A 6PANS

4шт.

23

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

6шт.

24

S5010313

WASHER;PLAIN M6

desc: RONDELLE

6шт.

25

40121-01051

COOLER;OIL

desc: REFROIDISSEUR D'HUILE

1шт.

26

2621-3279

PLATE(L.H)

desc: PLAQUE

1шт.

27

2621-3278

PLATE(R.H)

desc: PLAQUE

1шт.

28

621-01958A

COVER;BAFFLE

desc: COUVERCLE

1шт.

29

S0508653

BOLT

desc: BOULON A 6PANS

2шт.

30

621-01959B

COVER;BAFFLE

desc: COUVERCLE

1шт.

31

2185-1619

HOSE;UPPER

desc: TUYAU FLEXIBLE

1шт.

32

S8450044

BAND;WIRE

desc: COLLIER

4шт.

33

2185-1620

HOSE;LOWER

desc: TUYAU FLEXIBLE

1шт.

35

897041-0220

HANGER;SURGE TANK

desc: SUPPORT

1шт.

36

894370-4500

TANK;SURGE

desc: RESERVOIR

1шт.

37

S8450006

CLIP;HOSE

desc: COLLIER

1шт.

38

40124-00350

HOSE

desc: TUYAU FLEXIBLE

1шт.

39

30572-08012

CLIP

desc: ATTACHE

1шт.

47

2145-1233A

STAY

desc: ENTRETOISE

1шт.

48

S0504653

BOLT M6X1.0X16

desc: BOULON A 6PANS

2шт.

49

161-00420B

SPONGE ASS'Y

desc: EPONGE

1шт.

50

162-00029

STRIP;WEATHER 1000L

desc: BANDE

1шт.

51

2160-1023

TRIM;RUBBER 350L

desc: EPONGE

1шт.

52

S0508953

BOLT

desc: BOULON A 6PANS

2шт.
