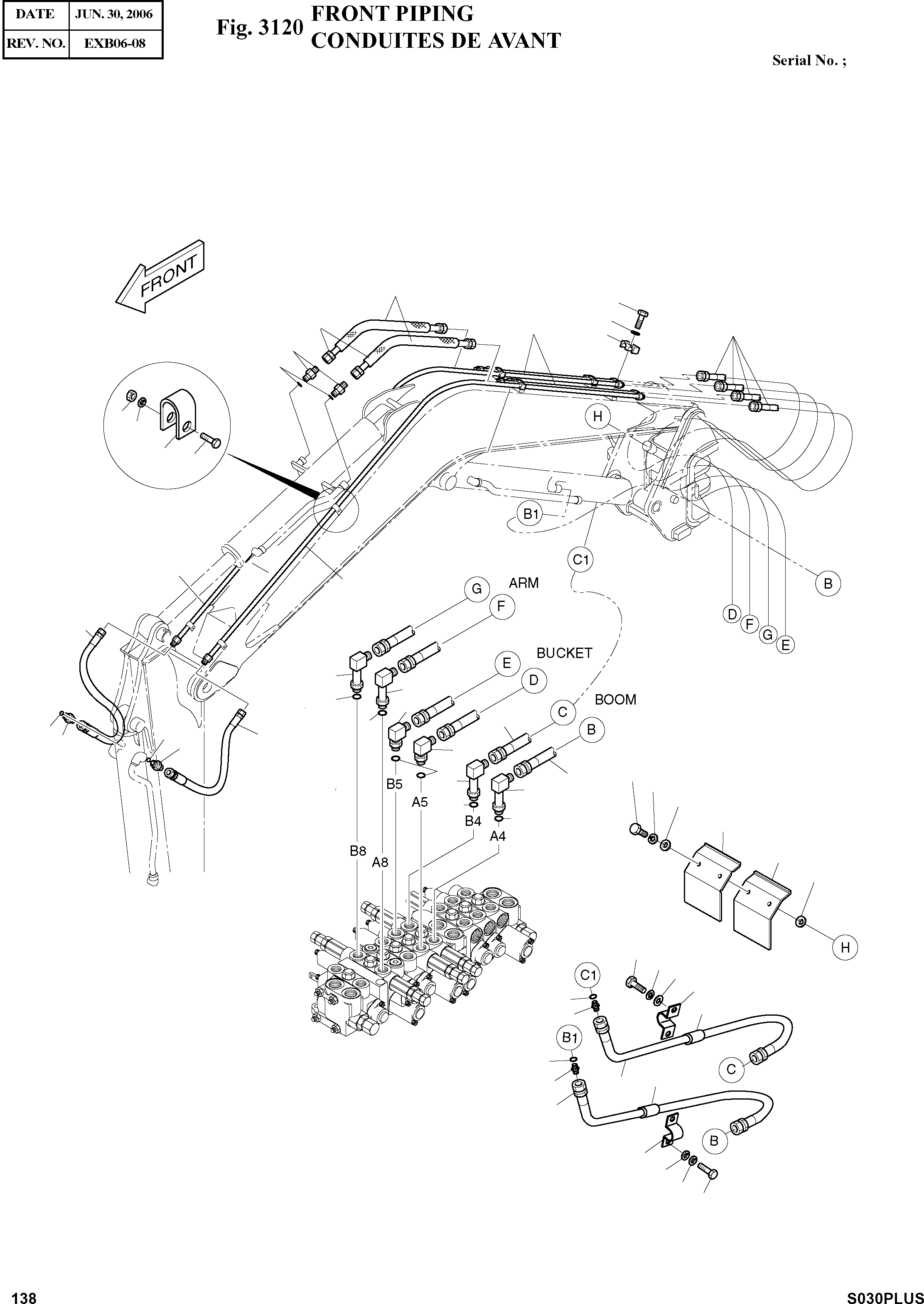

Запчасти Doosan Daewoo FRONT PIPING FRONT ATTACHMENTS

-

2400-7088

FRONT PIPING

SC: D

-2шт.

1

2181-1702D5

ELBOW PFO3/8XPF3/8.90'

desc: COUDE

4шт.

2

S8000141

O-RING P14

desc: JONT TORIQUE

3шт.

3

2181-1702D51

ELBOW PFO3/8XPF3/8.90'

desc: COUDE

2шт.

4

S8000141

O-RING P14

desc: JONT TORIQUE

3шт.

5

2184-1026D340

HOSE 3/8-2500L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1026D363

HOSE 3/8-2850L

desc: TUYAU FLEXIBLE

4шт.

7

2181-1126D7

ADAPTER PFO3/8XPF3/8

desc: ADAPTEUR

2шт.

8

S8000141

O-RING P14

desc: JONT TORIQUE

4шт.

17

2124-1025D9

CLAMP;PIPE

desc: ATTACHE DE TUYAU

4шт.

18

S0512053

BOLT M10X1.5X25

desc: BOULON A 6PANS

4шт.

19

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

20

2124-1559

CLAMP;PIPE

desc: ATTACHE DE TUYAU

4шт.

21

S0555953

BOLT M8X1.25X30

desc: BOULON A 6PANS

4шт.

22

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

27

2181-1126D7

ADAPTER PFO3/8XPF3/8

desc: ADAPTEUR

2шт.

28

S8000141

O-RING P14

desc: JONT TORIQUE

2шт.

31

S0511853

BOLT M10X1.5X20

desc: BOULON A 6PANS

2шт.

32

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

33

S5010613

WASHER

desc: RONDELLE PLATE

2шт.

34

2114-1058D10

WASHER M10

desc: RONDELLE PLATE

2шт.

35

2621-3487C

COVER

desc: COUVERCLE

1шт.

36

2161-2135B

PLATE;RUBBER

desc: PLAQUE

1шт.

37

2184-1026D192

HOSE PF3/8-820L

desc: TUYAU FLEXIBLE

2шт.

38

S4012533

NUT M8X1.25

desc: ECROU

4шт.

39

2184-1054D34

HOSE PF3/8X650L

desc: TUYAU FLEXIBLE

2шт.

40

2193-1361A

PIPE;ARM

desc: TUYAU DE BALANCIER

2шт.

41

2193-1362C

PIPE;BUCKET

desc: CONDUITE

2шт.

42

2185-1623D3

HOSE

desc: TUYAU FLEXIBLE

2шт.

43

2184-1026D362

HOSE PF3/8-2300L

desc: TUYAU FLEXIBLE

1шт.

45

2124-1565

CLAMP;HOSE

desc: ATTACHE DE TUYAU

2шт.

47

2161-2065

PLATE;RUBBER

desc: SUPPORT

2шт.

48

S0508853

BOLT M8X1.25X20

desc: BOULON A 6PANS

4шт.

49

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

50

S5010513

WASHER;PLAIN M8

desc: RONDELLE

4шт.
