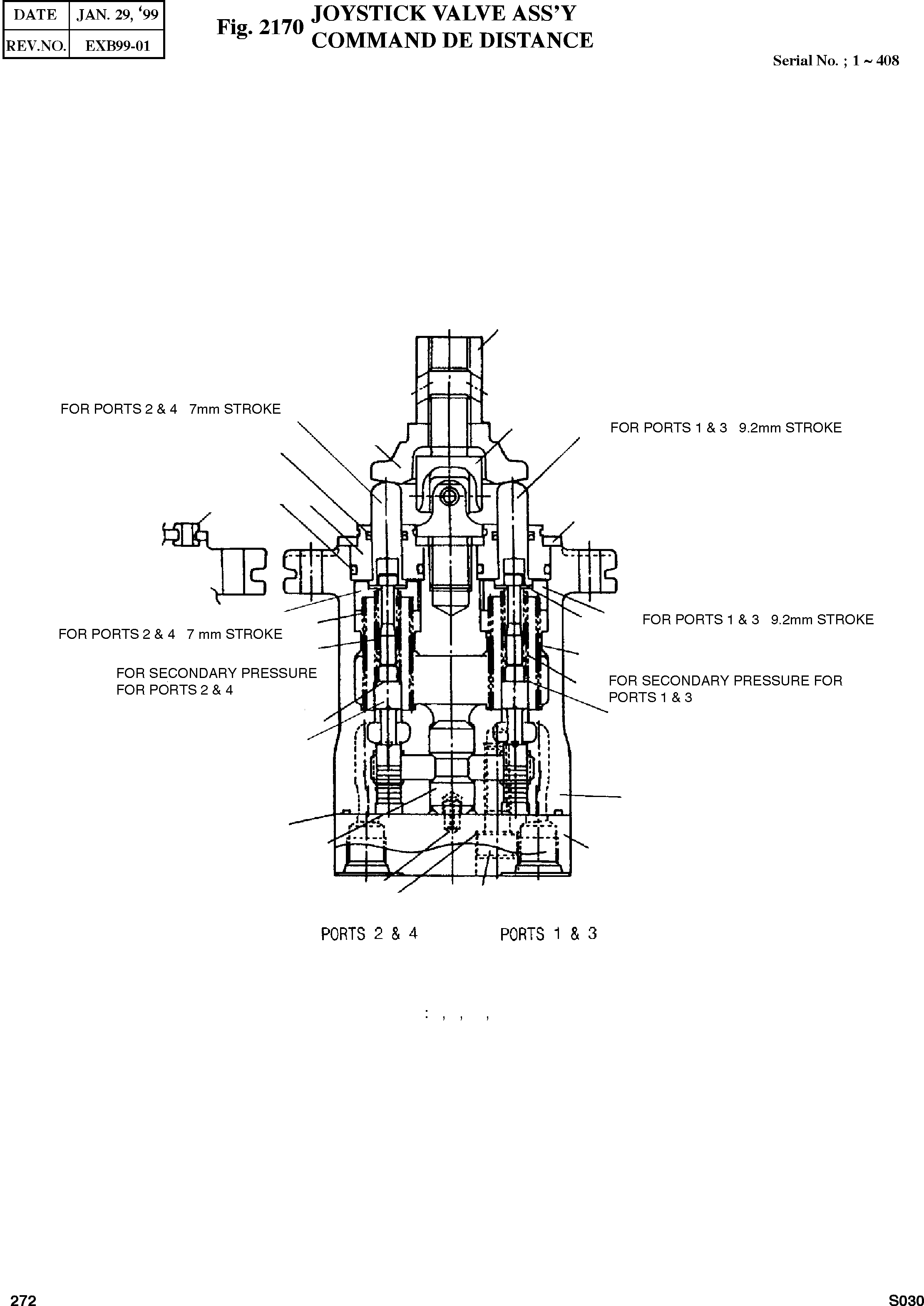

Запчасти Doosan Daewoo JOYSTICK VALVE ASSY TRACK PARTS

-

40501-01821

JOYSTICK VALVE ASS'Y

SERIAL: 1-408

2шт.

1

5DTM1X01-101

CASING

SC: D

1шт.

2

5DTM1X03-111

PLATE;PORT

desc: PLAQUE

1шт.

3

5DT01X01-121

WASHER;SEAL

SC: K

2шт.

4

VZ50105770-03

O-RING

SC: K

1шт.

5

VZ50106900

BOLT;SOCKET HEAD

desc: BOULON A 6 PANS CREUX

2шт.

6

OSPV510

PIN;SPRING

REP_PNO: 205273

1шт.

7

5DTM1X00-131

BUSH

desc: COUSSINET

1шт.

8

5DTM1X00-151

PLATE

desc: PLAQUE

1шт.

9

5DT01X00-201

SPOOL

SC: D

4шт.

10

5DT01X00-211

PLUG

desc: BOUCHON

4шт.

11

5DT01X05-212

ROD;PUSH

desc: POUSSOIR

2шт.

12

5DT01X04-212

ROD;PUSH

desc: POUSSOIR

2шт.

13

5DT61X20-213

SEAL

REP_PNO: 211700

4шт.

14

OORBP20

O-RING 1BP-20

REP_PNO: 201713

4шт.

15

5DT01X00-215

WASHER 1

desc: PLATEAU OSCILLANT

8шт.

16

5DT01X00-216

SEAT;SPRING

desc: SIEGE

2шт.

17

5DT01X01-216

SEAT;SPRING

desc: SIEGE

2шт.

18

5DT01X00-217

WASHER 2

desc: RONDELLE PLATE

4шт.

19

5DT01X40-221

SPRING

desc: RESSORT

4шт.

20

5DT01X13-241

SPRING

desc: RESSORT

2шт.

21

5DT01X00-241

SPRING

desc: RESSORT

2шт.

22

5DT61X01-301

JOINT

desc: JOINT

1шт.

23

5DT61X02-302

PLATE;CIRCULAR

desc: PLAQUE

1шт.

24

5DT61X20A-312

NUT;ADJUSTING

REP_PNO: 108312

1шт.

25

5DT61X20-457

BUSH

REP_PNO: 108305

1шт.

99

40501-01821KT

SEAL KIT

SC: S

1шт.
