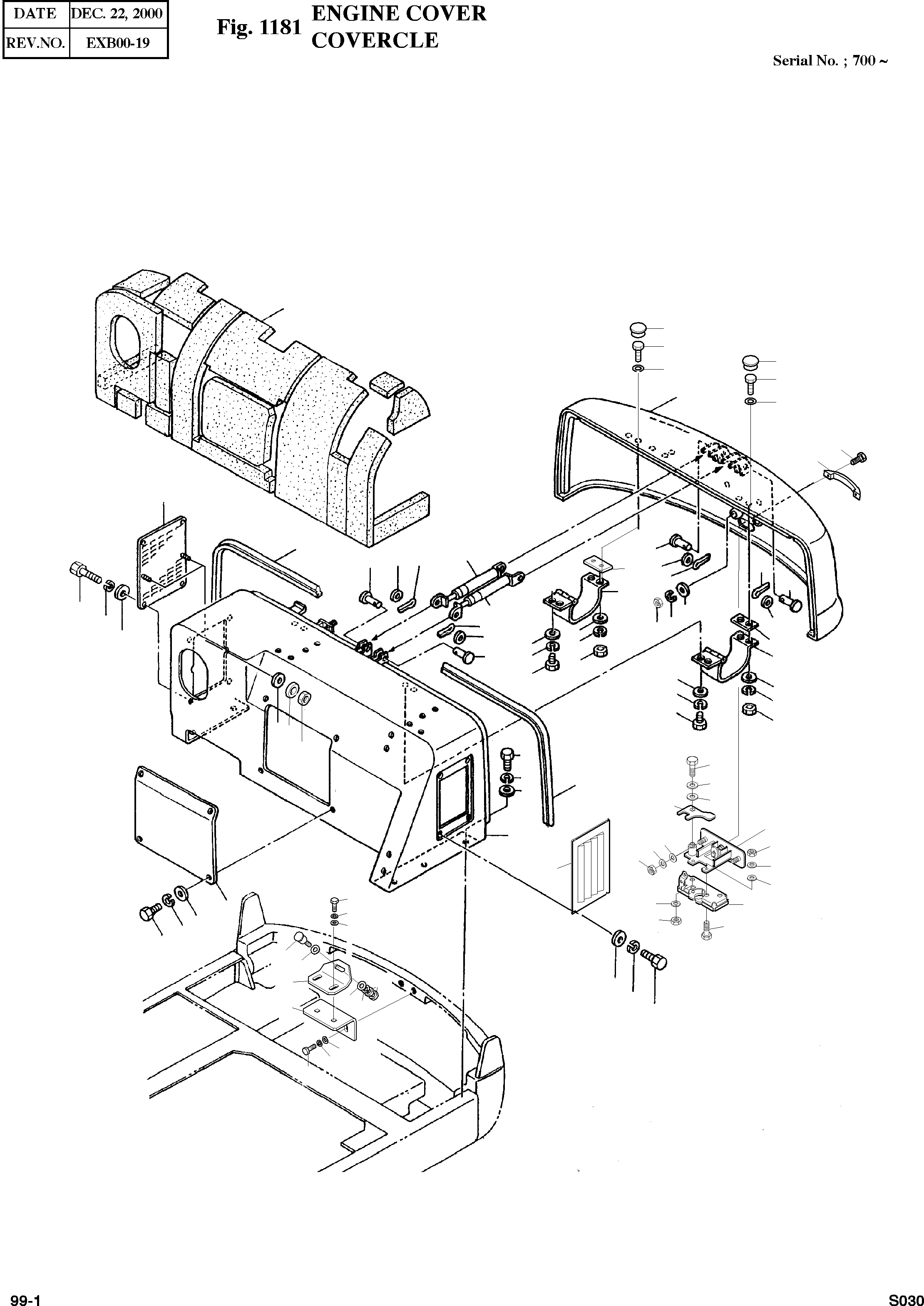

Запчасти Doosan Daewoo ENGINE COVER BODY PARTS

-

621-00952

BONNET & ARCH ASS'Y

SERIAL: 700

-2шт.

1

2621-3266H

ARCH ASS'Y

desc: LAQUET

1шт.

2

2621-3267B

COVER;R.H

desc: COUVERCLE

1шт.

3

2627-1060A

COVER;LOOVER

desc: COUVERCLE

1шт.

4

S4012333

NUT M6X1.0

desc: ECROU

4шт.

5

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

2шт.

6

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

2шт.

7

2621-3269C

COVER;FRONT

desc: COUVERCLE

1шт.

8

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

4шт.

9

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

5шт.

10

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

5шт.

11

S0560453

BOLT M12X1.75X35

desc: BOULON A 6 PANS

5шт.

12

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

5шт.

13

S5010713

WASHER;PLAIN M12

desc: RONDELLE

5шт.

14

2160-1023

TRIM;RUBBER

desc: CAOUTCHOUC

2шт.

15

2627-1163B

BONNET ASS'Y

desc: COUVERCLE

1шт.

15A

1.162-00001

RUBBER;CUSHION

desc: . CAOUTCHOUC

1шт.

16

2172-9025

HANDLE

desc: POIGNEE

1шт.

17

2143-1003

LOCK ASS'Y

desc: LOQUET

1шт.

22

2171-1070

HINGE

desc: PAUMELLE

2шт.

23

S0508853

BOLT M8XX1.25X20

desc: BOULON A 6 PANS

4шт.

24

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

8шт.

25

2114-1058D29

WASHER

desc: RONDELLE PLATE

12шт.

26

440-00012

SPRING;GAS

desc: REGISTRE

2шт.

27

2123-2096A

PIN

desc: BROCHE

4шт.

28

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

4шт.

29

S5735391

PIN;SPLIT

desc: GOUPILLE FENDUE

4шт.

30

2197-1216A

BRACKET

desc: SUPPORT

1шт.

31

S0508953

BOLT M8X1.25X22

desc: BOULON A 6 PANS

2шт.

32

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

33

2114-1059D29

WASHER

desc: RONDELLE PLATE

2шт.

34

195-01016

BRACKET

desc: SUPPORT

1шт.

35

S0509053

BOLT M8X1.25X22

desc: BOULON A 6 PANS

2шт.

36

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

37

2114-1058D29

WASHER

desc: RONDELLE PLATE

2шт.

41

2161-2319

FORM ASS'Y

desc: EPONGE

1шт.

43

S0504653

BOLT M6X1.0X16

desc: BOULON A 6 PANS

8шт.

44

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

8шт.

45

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

8шт.

47

S4012533

NUT M8X1.25

desc: ECROU

4шт.

49

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

5шт.

50

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

51

S4012333

NUT M6X1.0

desc: ECROU

3шт.

52

S3450991

SCREW M6X1.0X25

desc: VIS

2шт.

54

2160-1291

HOLDER

desc: CHAPEAU DE CAOUTCHOUC

4шт.

55

S0509353

BOLT M8X1.25X35

desc: BOULON A 6 PANS

4шт.

56

2114-1180D16

SHIM

desc: CALE

2шт.

57

195-00280

PLATE;LEVER

desc: SUPPORT

1шт.

58

S4012533

NUT M8X1.25

desc: ECROU

2шт.

59

2114-1058D29

WASHER;PLAIN

desc: RONDELLE PLATE

1шт.

60

2142-1094

STRIKE

desc: FRAPPER

1шт.

61

S0505353

BOLT M6X1.0X35

desc: BOULON A 6 PANS

2шт.

62

S0553853

BOLT M6X1.0X60

desc: BOULON A 6 PANS

1шт.

63

195-00283

BRACKET;LATCH

desc: SUPPORT

1шт.

64

2114-1058D69

WASHER;PLAIN

desc: RONDELLE PLATE

1шт.

65

S4012633

NUT M10X1.5

desc: ECROU M10X1.5

2шт.

66

2114-1058D10

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

67

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.
