JOYSTICK

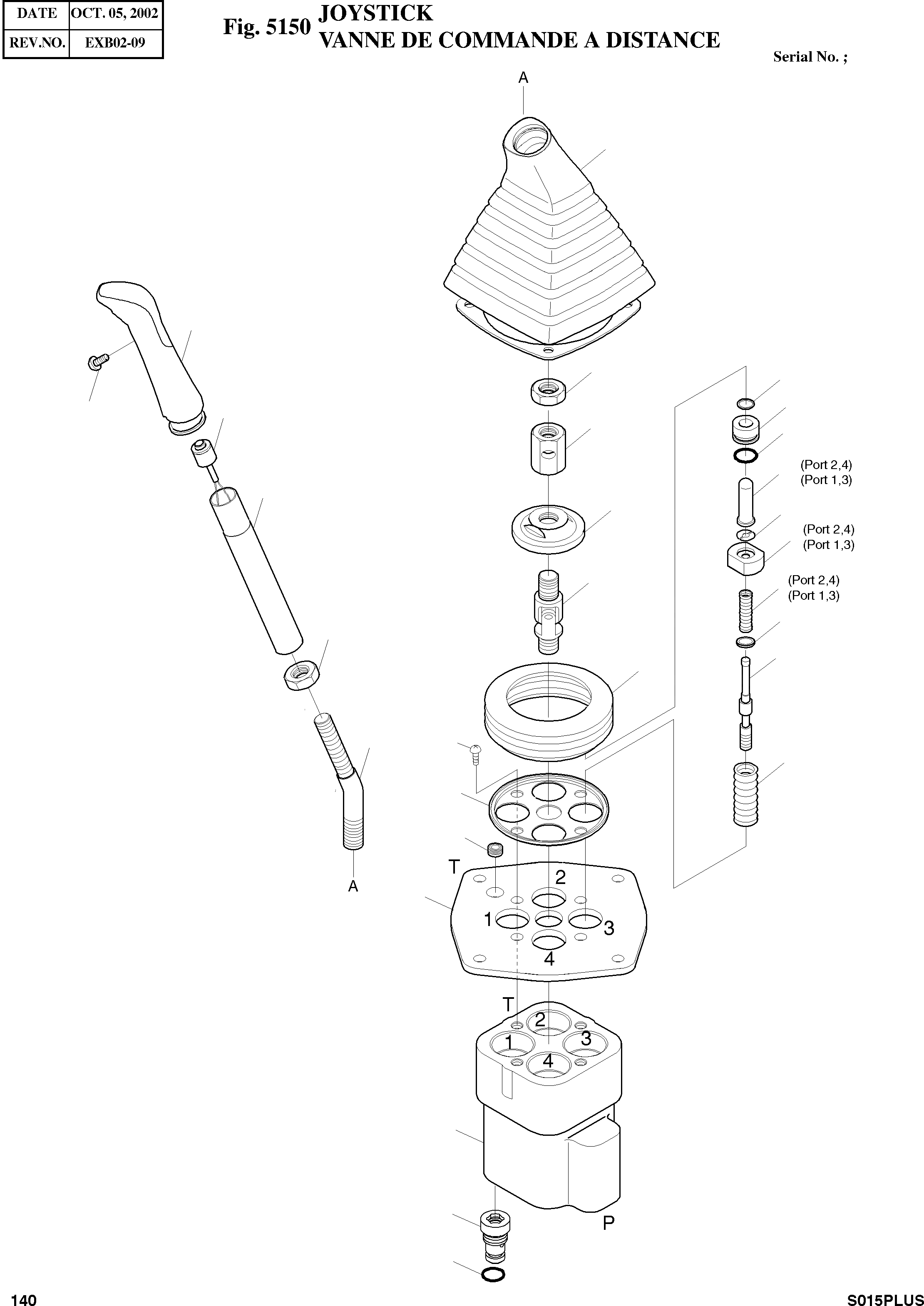

Запчасти Doosan Daewoo JOYSTICK OTHER PARTS

25
29
24
16
14
30
27
22
15
13
12
28
21
7
6
5
20
9
8
10
26
11
32
23
19
4
31
18
17
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

-

2420-9615

REMOTE CONTROL(R.H)

desc: VANNE DE COMMANDE A DISTANCE

1шт.

-

2420-9616

REMOTE CONTROL(L.H)

desc: VANNE DE COMMANDE A DISTANCE

1шт.

1

J97A5001

BODY

desc: CARTER

1шт.

2

J98E1001

PLUG

desc: BOUCHON

4шт.

3

P008

O-RING

desc: JOINT TORIQUE

4шт.

4

J98E1002

SPRING

desc: RESSORT

4шт.

5

J97A5003

SEAT;SPRING

desc: RESSORT

2шт.

6

J97A5004

SEAT;SPRING

desc: RESSORT

2шт.

7

J97A5005

STOPPER

desc: ARRET

4шт.

8

J98E1003

SPRING

desc: RESSORT

2шт.

9

J98E1004

SPRING

desc: RESSORT

2шт.

10

AJV12D103

SEAT;SPRING

desc: SIEGE DE RESSORT

4шт.

11

J96H2004

SPOOL

desc: BROUCHE

4шт.

12

J98E1005

PUSH;ROD

desc: TIGE

2шт.

13

J98E1006

PUSH;ROD

desc: TIGE

2шт.

14

J97A5013

PLUG

desc: BOUCHON

4шт.

15

P0020

O-RING

desc: JOINT TORIQUE

4шт.

16

RSY12

SEAL;ROD

desc: JOINT

4шт.

17

J97A5014

PLATE

desc: PLAQUE

1шт.

18

J97A5015

BUSING

desc: DOUILLE

1шт.

19

MB0620

SCREW;MACHINE

desc: VIS

4шт.

20

J95C1012

JOINT ASS'Y

desc: ENSEMBLE DE JOINT

1шт.

21

J97A5016

SWASH PLATE

desc: PLAQUE

1шт.

22

J95C1014

NUT;HEX

desc: ECROU

1шт.

23

J97A1001

CONNECTOR

desc: RACCORD

1шт.

24

HNM14-1

NUT M14

desc: ECROU

1шт.

25

J97A1002

BOOT(R.H)

desc: GAINE DE PROTECTION

1шт.

25

J97A1003

BOOT(L.H)

desc: GAINE DE PROTECTION

1шт.

26

HNM12-1

NUT M12X1.25P

desc: ECROU

1шт.

27

J97A1004

SWITCH ASS'Y

desc: INTERRUPTEUR

1шт.

28

J97A1005

INSERT

desc: INSERT

1шт.

29

J97A1006

HANDLE ASS'Y

desc: HANDLE ASS'Y

1шт.

30

SAM103

SCREW(TAPPING)

desc: VIS

1шт.

31

J97A5017

PLATE

desc: PLAQUE

1шт.

32

J97A5018

BOOT

desc: BOOTS

1шт.
