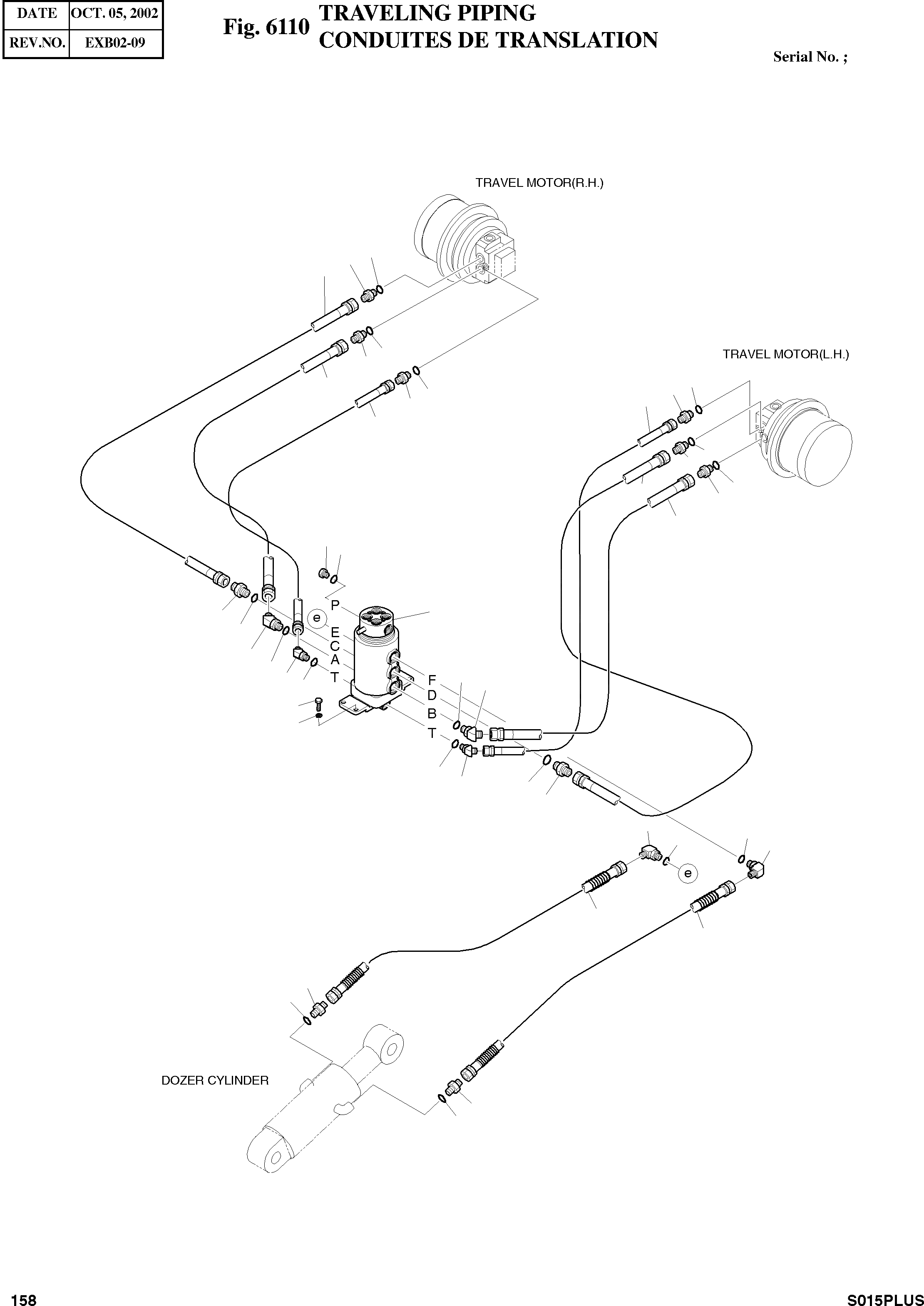

Запчасти Doosan Daewoo TRAVELING PIPING OPTION PARTS

-

400-00414

TRACK PIPING

SC: D

-2шт.

1

2480-9028A

JOINT;CENTER

desc: JOINT CENTRAL

1шт.

2

2181-2419D1

ELBOW PF1/4-PF1/4

desc: COUDE

2шт.

3

2181-1126D36

ADAPTER PF3/8-PF1/4

desc: RACCORD ADAPTATEUR

4шт.

4

2181-1890D2

PLUG PF1/4

desc: BOUCHON

1шт.

5

2181-1126D14

ADAPTER PF1/4-PF1/4

desc: RACCORD ADAPTATEUR

4шт.

7

2181-1702D4

ELBOW PFO1/4-1/4

desc: COUDE

2шт.

8

2181-2419D6

ELBOW PFO3/8-1/4

desc: COUDE

2шт.

9

S8000111

O-RING P11

desc: JOINT TORIQUE

9шт.

11

S8000141

O-RING P14

desc: JOINT TORIQUE

8шт.

13

2184-1054D45

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

2шт.

14

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

15

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

17

2181-1702D10

ADAPTER PF3/8-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

18

2184-1026D450

HOSE PF1/4-710L

desc: TUYAU FLEXIBLE

2шт.

19

2184-1060D238

HOSE PF1/4-730L

desc: TUYAU FLEXIBLE

2шт.

20

2184-1045D143

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

2шт.
