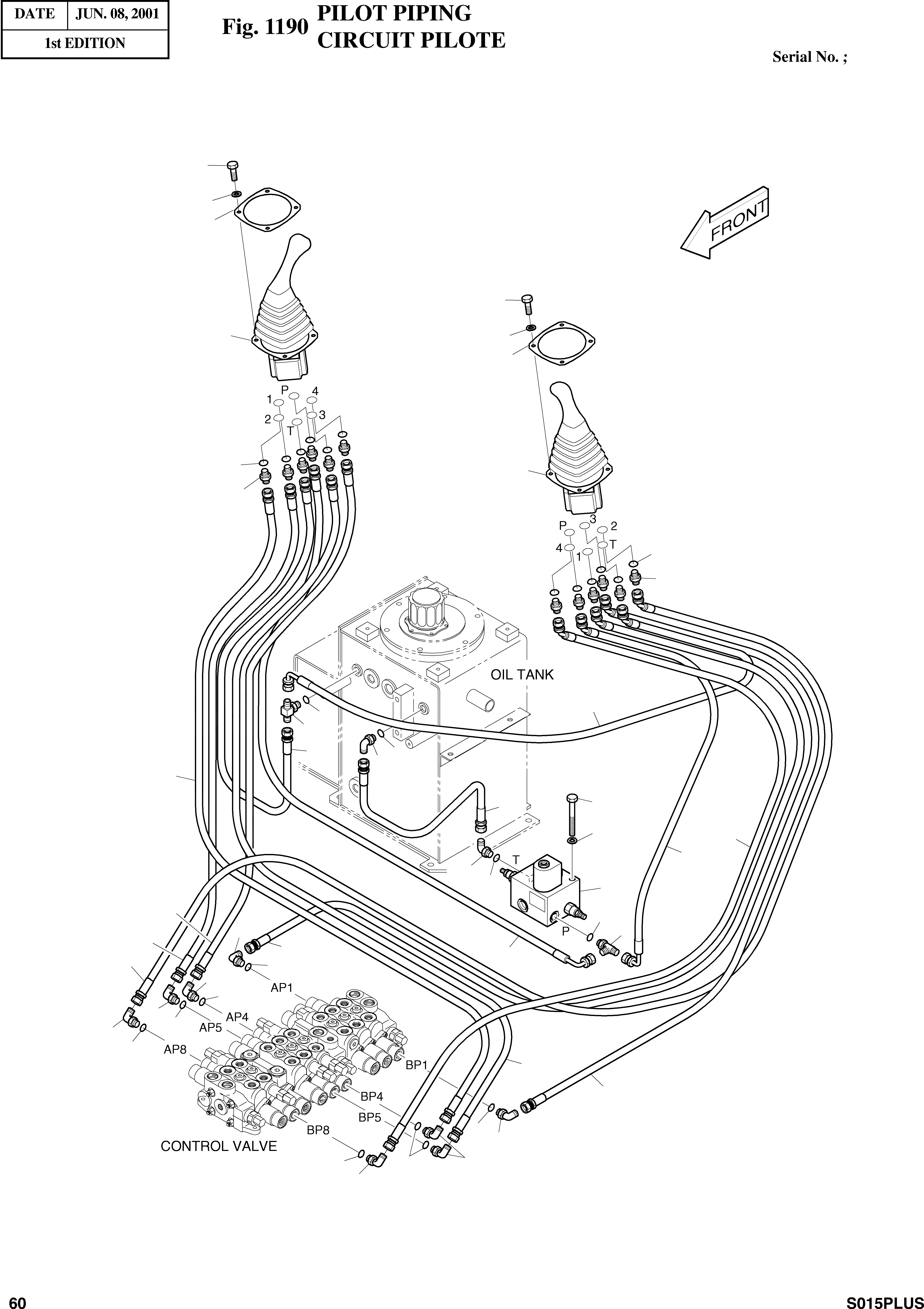

Запчасти Doosan Daewoo PILOT PIPING BODY PARTS

-

400-00582

PILOT PIPING

SC: D

-2шт.

1

426-00110A

VALVE;SOLENOID

desc: VANNE

1шт.

2

2184-1045D254

HOSE PF1/4-2130L

desc: TUYAU FLEXIBLE

1шт.

3

2184-1045D149

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

4

2184-1045D124

HOSE PF1/4-2100L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1045D102

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1060D108

HOSE PF1/4-1300L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1060D41

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

8

DS2057035

HOSE PF1/4-1920L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1060D65

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1046D143

HOSE PF1/4-1150L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1045D165

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1046D196

HOSE PF1/4-1550L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1045D253

HOSE PF1/4-280L

desc: TUYAU FLEXIBLE

1шт.

14

S8000111

O-RING P11

desc: JOINT TORIQUE

24шт.

15

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

12шт.

17

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

10шт.

18

2181-2281D1

TEE PF1/4-PFO1/4-PF1/4

desc: TE

1шт.

19

2181-1951D1

TEE PFO1/4-PF1/4-PF1/4

desc: TE

1шт.

20

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

21

S0559253

BOLT M10X1.5X85

desc: BOULON A 6 PANS

2шт.

22

2420-9616

VALVE;JOYSTICK(L.H)

desc: COMMAND DE DISTANCE

1шт.

23

2420-9615

VALVE;JOYSTICK(R.H)

desc: COMMAND DE DISTANCE

1шт.

24

2621-2752

PLATE

desc: PLAQUE

2шт.

25

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

8шт.

26

S5102303

WAHSER;SPRING M6

desc: RONDELLE ELASTIQUE M6

8шт.

27

DS2058205

HOSE PF1/4-1150L

desc: TUYAU FLEXIBLE

1шт.
