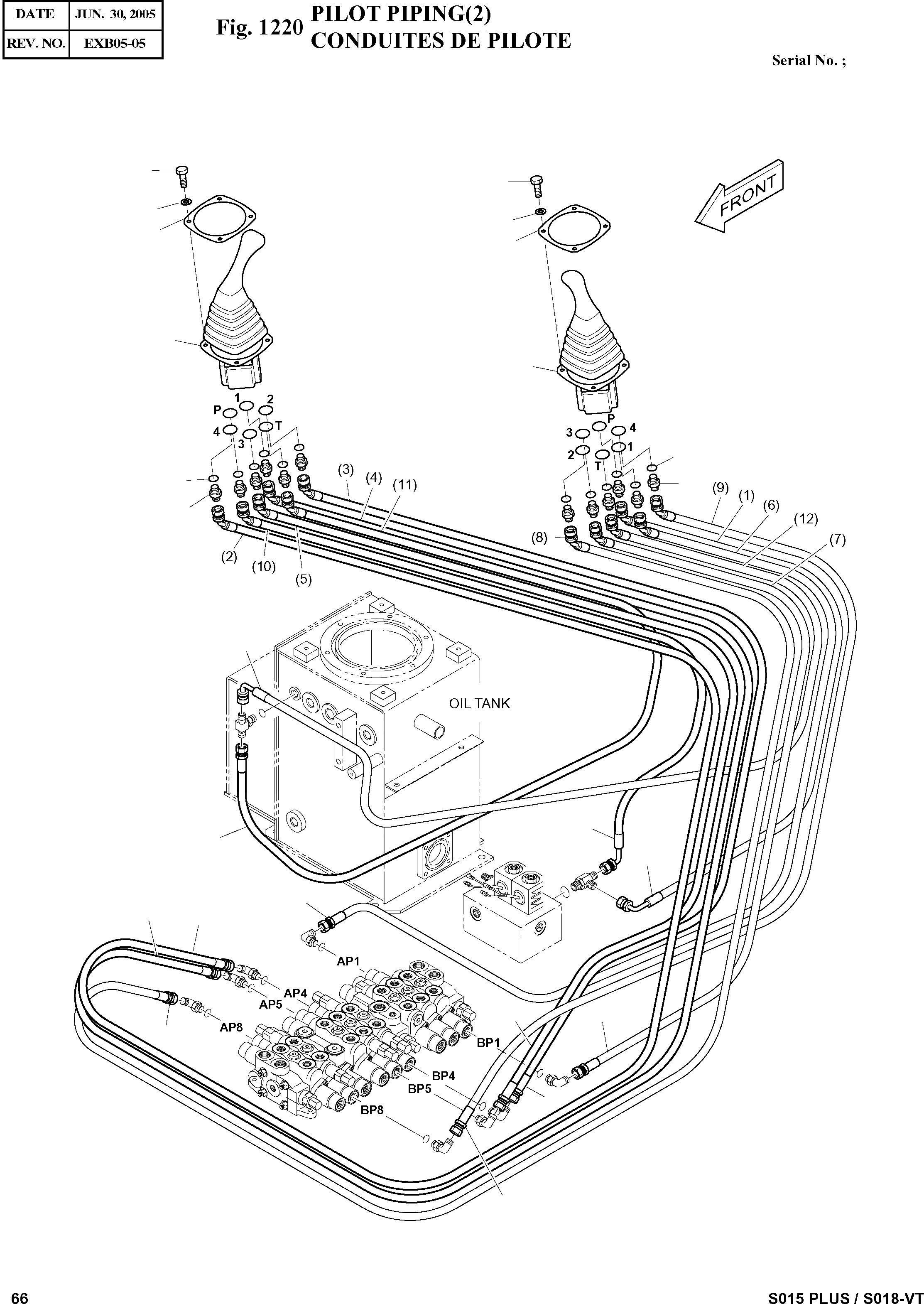

Запчасти Doosan Daewoo PILOT PIPING(2) BODY PARTS

-

400-01508B

PILOT PIPING(2)

SERIAL: 30001-30373

-2шт.

-

400-01508C

PILOT PIPING(2)

SERIAL: 30374

-2шт.

1

DS2088001

HOSE

desc: TUYAU FLEXIBLE

1шт.

2

2184-1249D33

HOSE

desc: TUYAU FLEXIBLE

1шт.

3

2184-1249D2

HOSE PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

4

2184-1249D33

HOSE

desc: TUYAU FLEXIBLE

1шт.

5

DS2067048

HOSE

desc: TUYAU FLEXIBLE

1шт.

6

DS2067049

HOSE

desc: TUYAU FLEXIBLE

1шт.

7

DS2067041

HOSE

desc: TUYAU FLEXIBLE

1шт.

8

DS2089001

HOSE

desc: TUYAU FLEXIBLE

1шт.

9

2184-1249D23

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

10

DS2088002

HOSE

desc: TUYAU FLEXIBLE

1шт.

11

2184-1249D11

HOSE PF1/4-2100L

desc: TUYAU FLEXIBLE

1шт.

12

DS2088004

HOSE

desc: TUYAU FLEXIBLE

1шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

12шт.

14

2181-1126D14

ADAPTER;S PFO1/4XPF1/4

desc: ADAPTEUR

12шт.

15

420-00504

VALVE;REMOCON(LH)

SERIAL: 30001-30373

1шт.

15

420-00504A

VALVE;REMOCON(LH)

SERIAL: 30374

1шт.

16

420-00506

VALVE;REMOCON(RH)

SERIAL: 30001-30373

1шт.

16

420-00506A

VALVE;REMOCON(RH)

SERIAL: 30374

1шт.

17

2621-2752

PLATE

desc: PLAQUE

2шт.

18

S0505053

BOLT M6X1.0X25L

desc: BOULON

8шт.

19

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

8шт.
