Запчасти Doosan Daewoo MAIN PIPING(3) - VARIABLE TRACK BODY PARTS

-

400-01312A

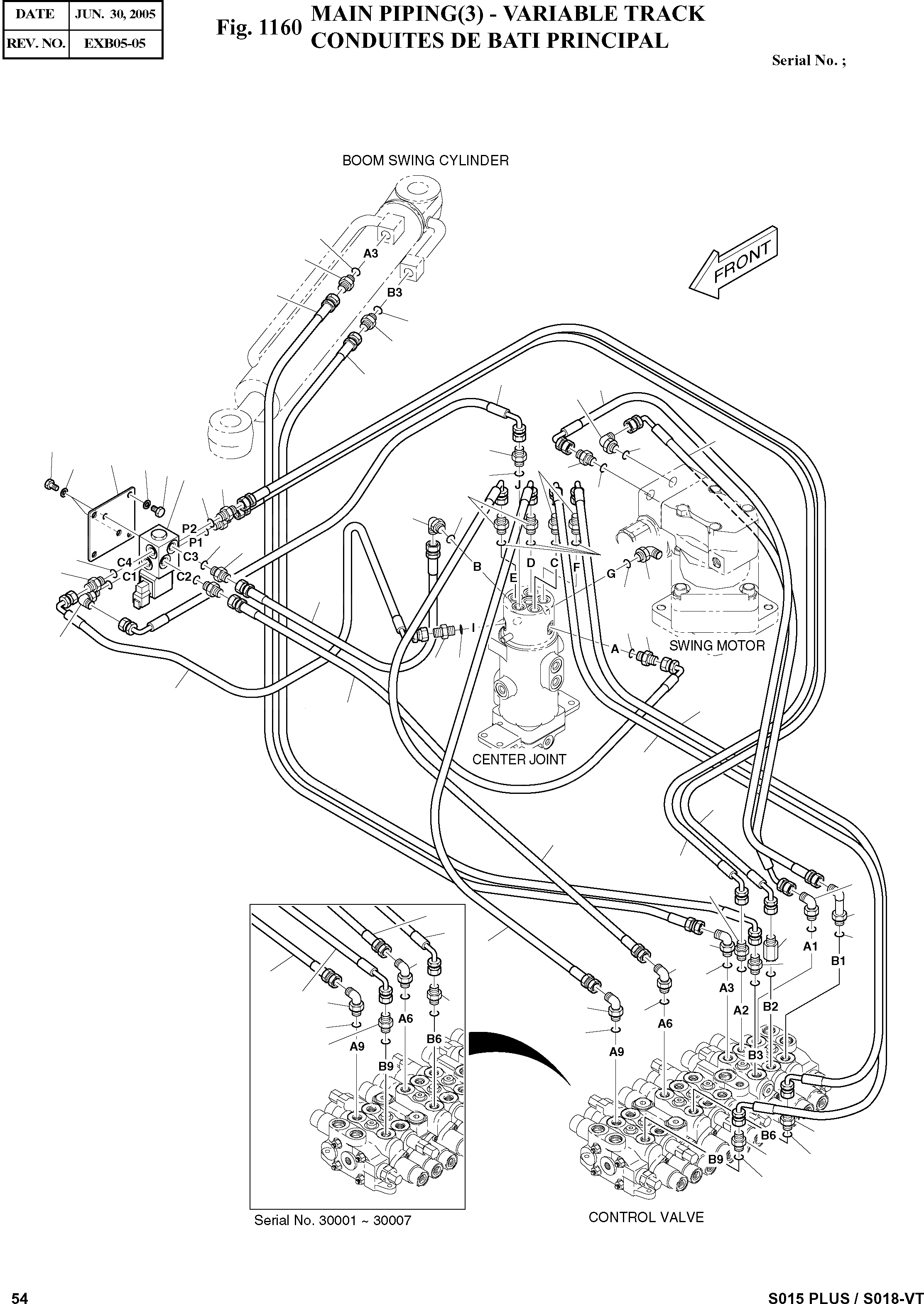

MAIN PIPING(3)

SC: D

-2шт.

1

2184-1060D165

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.

2

DS2058207

HOSE

SERIAL: 30001-30007

1шт.

2

DS2059469

HOSE PF1/4-1270L

SERIAL: 30008

1шт.

3

2184-1060D239

HOSE

desc: TUYAU FLEXIBLE

1шт.

4

DS2058252

HOSE

SERIAL: 30001-30007

1шт.

4

DS2059470

HOSE PF1/4-1100L

SERIAL: 30008

1шт.

5

2184-1026D127

HOSE

desc: TUYAU FLEXIBLE

1шт.

6

2184-1036D425

HOSE

desc: TUYAU FLEXIBLE

1шт.

7

2184-1036D325

HOSE

desc: TUYAU FLEXIBLE

2шт.

8

2184-1036D6

HOSE PF1/4-490L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1128D37

HOSE

desc: TUYAU FLEXIBLE

1шт.

10

2184-1036D277

HOSE;AMP-UL-HP

desc: TUYAU FLEXIBLE

1шт.

11

S8000141

O-RING

desc: JOINT TORIQUE

16шт.

12

2181-1702D10

ELBOW;S PF1/4 PF3/8

desc: COUDE

5шт.

13

2181-1126D36

ADAPTER PF3/8XPF1/4

desc: ADAPTEUR

7шт.

14

2181-1702D58

ELBOW

desc: COUDE

1шт.

15

S8000111

O-RING

desc: JOINT TORIQUE

13шт.

16

2181-1126D14

ADAPTER;S PFO1/4XPF1/4

desc: ADAPTEUR

10шт.

17

2181-1126D96

ADAPTER

desc: ADAPTEUR

1шт.

18

DS2213166

ADAPTER

desc: ADAPTEUR

2шт.

19

2181-1702D4

ELBOW PF1/4XPF1/4

desc: COUDE

3шт.

20

422-00053A

SELECTOR VALVE ASS'Y

desc: VANNE

1шт.

21

621-02669A

PLATE;SELECTOR

desc: PLAQUE

1шт.

22

S0508553

BOLT M8X1.25X14

desc: BOULON

6шт.

23

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

6шт.

24

DS2059455

HOSE

desc: TUYAU FLEXIBLE

1шт.

25

DS2059465

HOSE

desc: TUYAU FLEXIBLE

1шт.

26

DS2055817

HOSE PF1/4-580L

desc: TUYAU FLEXIBLE

1шт.
