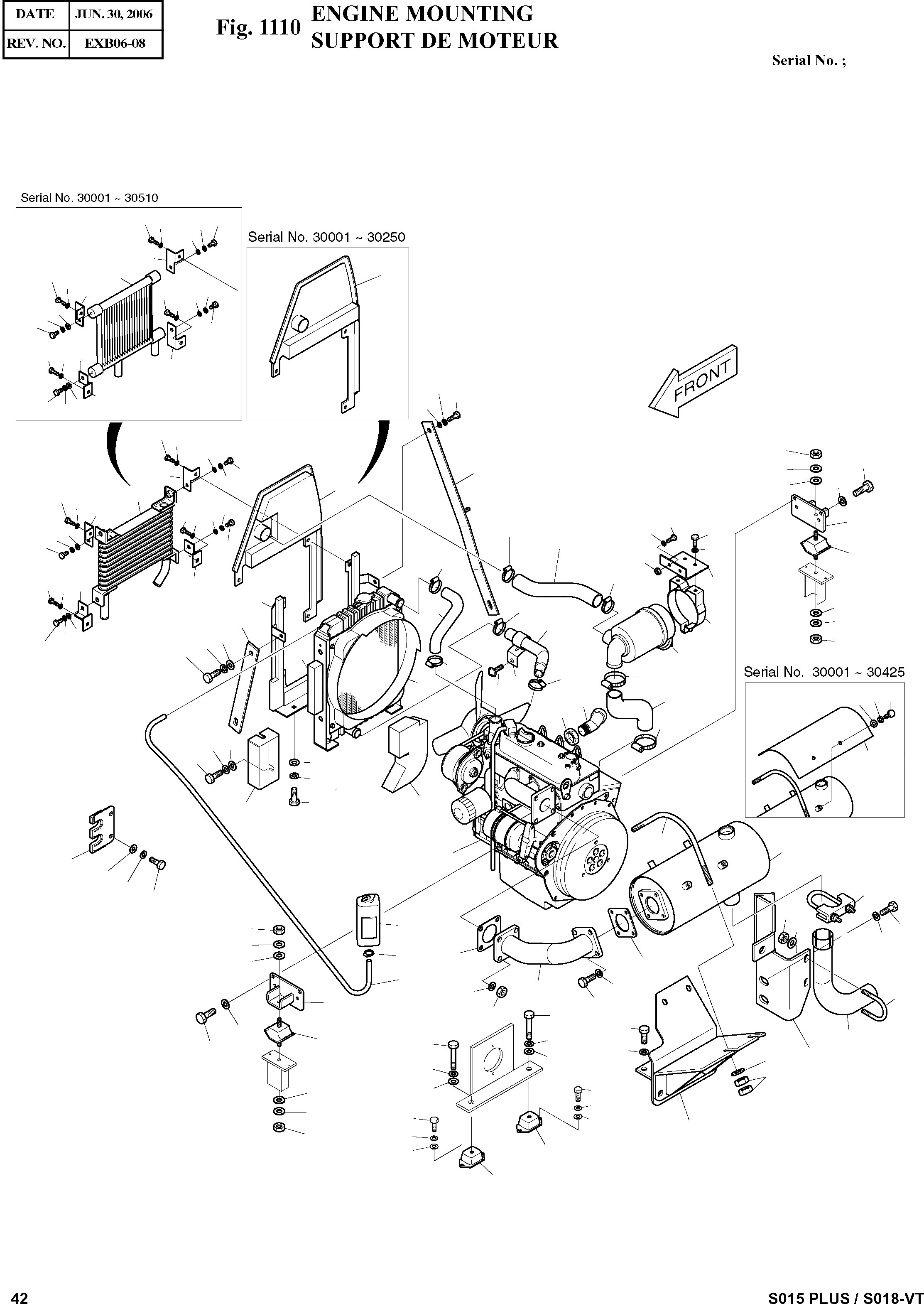

Запчасти Doosan Daewoo ENGINE MOUNTING BODY PARTS

-

201-00198A

ENGINE MOUNTING ASS'Y

SC: D

-2шт.

1

201-00039

ENGINE ASS'Y

desc: MOTEUR

1шт.

2

30L47-00601

RADIATOR

desc: RADIATEUR

1шт.

3

204-00034

AIR CLEANER ASS'Y

desc: FILTRE AIR

1шт.

3A

474-00026

ELEMENT;AIR CLEANER

desc: ELEMENT

1шт.

4

203-00030C

MUFFLER

SERIAL: 30001-30425

1шт.

4

K1014910

MUFFLER

SERIAL: 30426

1шт.

5

161-00387

RUBBER;ENGINE MTG

desc: CAOUTCHOUC

2шт.

5-1

-

NUT

SC: D

1шт.

5-2

-

WASHER

SC: D

1шт.

6

195-01739A

BRACKET;ENGINE MTG

desc: SUPPORT

2шт.

7

195-00529A

BRACKET;MUFFLER

SERIAL: 30001-30425

1шт.

7

K1014913

BRACKET;MUFFLER

SERIAL: 30426

1шт.

8

621-00723

COVER;MUFFLER

SERIAL: 30001-30425

1шт.

9

193-00192C

PIPE;EXHAUST

SERIAL: 30001-30425

1шт.

9

K1014914

PIPE;EXHAUST

SERIAL: 30426

1шт.

10

120-00148

BOLT;U

SERIAL: 30001-30425

2шт.

10

K1014911

BOLT;U

SERIAL: 30426

2шт.

11

185-00002B

HOSE;AIR-CLEANER

desc: TUYAU FLEXIBLE

1шт.

12

193-00191

PIPE;EXHAUST

desc: TUYAU

1шт.

13

195-00531

BRACKET

desc: SUPPORT

1шт.

14

2120-2161

BOLT;U

desc: BOULON DE U

1шт.

16

30A30-00100

GASKET

desc: JOINT

2шт.

17

124-00190

BAND;AIR-CLEANER

desc: BANDE

1шт.

19

30L47-00800

HOSE;UPPER

desc: TUYAU FLEXIBLE

1шт.

20

30L47-00900

HOSE;LOWER

desc: TUYAU FLEXIBLE

1шт.

21

202-00130

COOLER;WATER & OIL

SERIAL: 30001-30510

1шт.

21

K1012335

COOLER;WATER & OIL

SERIAL: 30511

1шт.

22

195-00571B

BRACKET;COOLER

desc: SUPPORT

1шт.

23

191-00377B

PLATE

desc: PLAQUE

1шт.

24

195-01370C

BRACKET

SERIAL: 30001-30250

1шт.

24

195-01370E

BRACKET

SERIAL: 30251

1шт.

25

S0515453

BOLT M12X1.75 40

desc: BOULON

2шт.

26

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

10шт.

27

S4012633

NUT M10X1.5

desc: ECROU

8шт.

28

S0712063

BOLT M10X1.25X25

desc: BOULON

10шт.

29

S0508853

BOLT M8X1.25X20

SERIAL: 30001-30425

22шт.

29

S0508853

BOLT M8X1.25X20

SERIAL: 30426

18шт.

30

S5102503

WASHER;SPRING M8

SERIAL: 30001-30425

36шт.

30

S5102503

WASHER;SPRING M8

SERIAL: 30426

32шт.

31

S5010513

WASHER;PLAIN M8

SERIAL: 30001-30425

10шт.

31

S5010513

WASHER;PLAIN M8

SERIAL: 30426

6шт.

32

MM434-427

SUPPORT;HOSE

desc: SUPPORT

1шт.

33

MS350-029

SCREW

desc: VIS

1шт.

34

MF661019

CLAMP;HOSE

desc: FIXATION DE TUYAU

4шт.

35

S4012533

NUT M8X1.25

desc: ECROU

6шт.

36

S4012333

NUT M6X1.0

desc: ECROU

4шт.

37

S8450044

CLAMP;HOSE

desc: FIXATION DE TUYAU

4шт.

39

124-00264

CLAMP

desc: ATTACHE

1шт.

40

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

6шт.

41

S0504453

BOLT M6X1.0X12

desc: BOULON

2шт.

42

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

43

MM301-607

TANK;RESERVIER

desc: RESERVOIR DE RESEVE

1шт.

44

2185-1247D4

HOSE;FUEL 580mm

desc: TUYAU FLEXIBLE

1шт.

45

S8450012

CLAMP;HOSE

desc: FIXATION DE TUYAU

1шт.

46

195-00603

BRACKET;RADIATOR

desc: SUPPORT

1шт.

47

191-00475A

PLATE

desc: PLAQUE

1шт.

48

195-00697A

BRACKET;AIR-CLEANER

desc: SUPPORT

1шт.

52

161-00124

RUBBER;MOUNTING

desc: CAOUTCHOUC

2шт.

53

2114-1058D29

WASHER

desc: RONDELLE

6шт.

54

2114-1058D62

SHIM

desc: CALE

6шт.

55

S0711853

BOLT M10X1.25X20

desc: BOULON

2шт.

56

S0509053

BOLT M8X1.25X25

desc: BOULON

4шт.

57

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

2шт.

58

161-00303

SPONGE

desc: EPONGE

1шт.

62

S0508853

BOLT M8X1.25X20

desc: BOULON

4шт.

63

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

4шт.

64

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

65

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

66

S5010713

WASHER;PLAIN M12

desc: RONDELLE PLATE

2шт.

69

185-00289B

HOSE

desc: TUYAU FLEXIBLE

1шт.

70

193-00679B

PIPE;OIL FILLER

desc: TUYAU

1шт.

71

121-00070

NUT;OIL FILLER PIPE

desc: ECROU

1шт.

72

195-02759A

BRACKET

SERIAL: 30001-30510

1шт.

72

195-02759B

BRACKET

SERIAL: 30511

1шт.

73

195-02756

BRACKET

desc: SUPPORT

1шт.

74

195-02757

BRACKET

desc: SUPPORT

1шт.

75

195-02758

BRACKET

SERIAL: 30001-30510

1шт.

75

195-02758A

BRACKET

SERIAL: 30511

1шт.

76

S0508653

BOLT M8X1.25X16

desc: BOULON

4шт.

77

191-03454

PLATE

desc: PLAQUE

1шт.

78

161-00636

SPONGE

desc: EPONGE

1шт.
