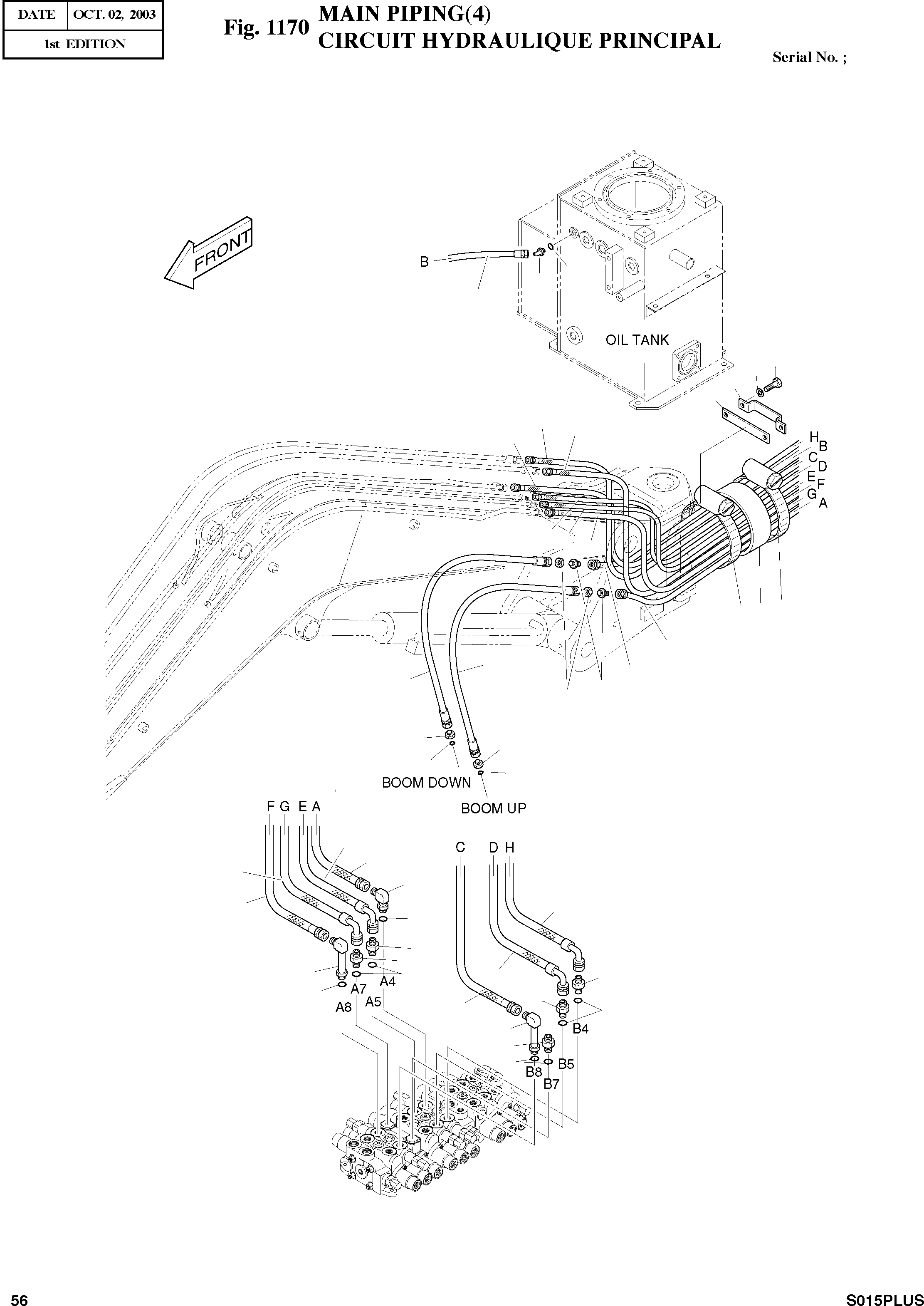

Запчасти Doosan Daewoo MAIN PIPING(4) UPPER STRUCTURE

-

400-00593

MAIN PIPING (4)

SC: D

-2шт.

1

2124-1651A

CLAMP

desc: COLLIER

1шт.

2

2124-1630C

CLAMP

desc: COLLIER

1шт.

3

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

2шт.

4

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

5

2181-1890D3

PLUG

desc: BOUCHON

1шт.

6

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

7

DS2281094

ELBOW PFO3/8-PF3/8

desc: COUDE

2шт.

8

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

9

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

10

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

11

S8000141

O-RING

desc: JOINT TORIQUE

9шт.

12

S8000111

O-RING

desc: JOINT TORIQUE

2шт.

13

2184-1036D442

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1026D451

HOSE PF1/4-1350L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1036D153

HOSE PF3/8-1400L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1026D403

HOSE PF3/8-1400L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1026D223

HOSE PF3/8-1500L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1036D443

HOSE PF1/4-1370L

desc: TUYAU FLEXIBLE

1шт.

19

2184-1036D444

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

21

2184-1054D66

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

2шт.

22

2181-2178

ADAPTER PF1/4

desc: RACCORD ADAPTATEUR

2шт.

23

2121-1260

NUT

desc: ECROU

2шт.

24

2184-1026D453

HOSE PF3/8-1550L

desc: TUYAU FLEXIBLE

1шт.

25

2181-2419D2

ELBOW PFO3/8 PF3/8

desc: COUDE

1шт.

26

160-00036

PLATE;RUBBER

desc: PLAQUE

1шт.

27

2124-1084D1

BAND;CLIP

desc: TUYAU FLEXIBLE

2шт.
