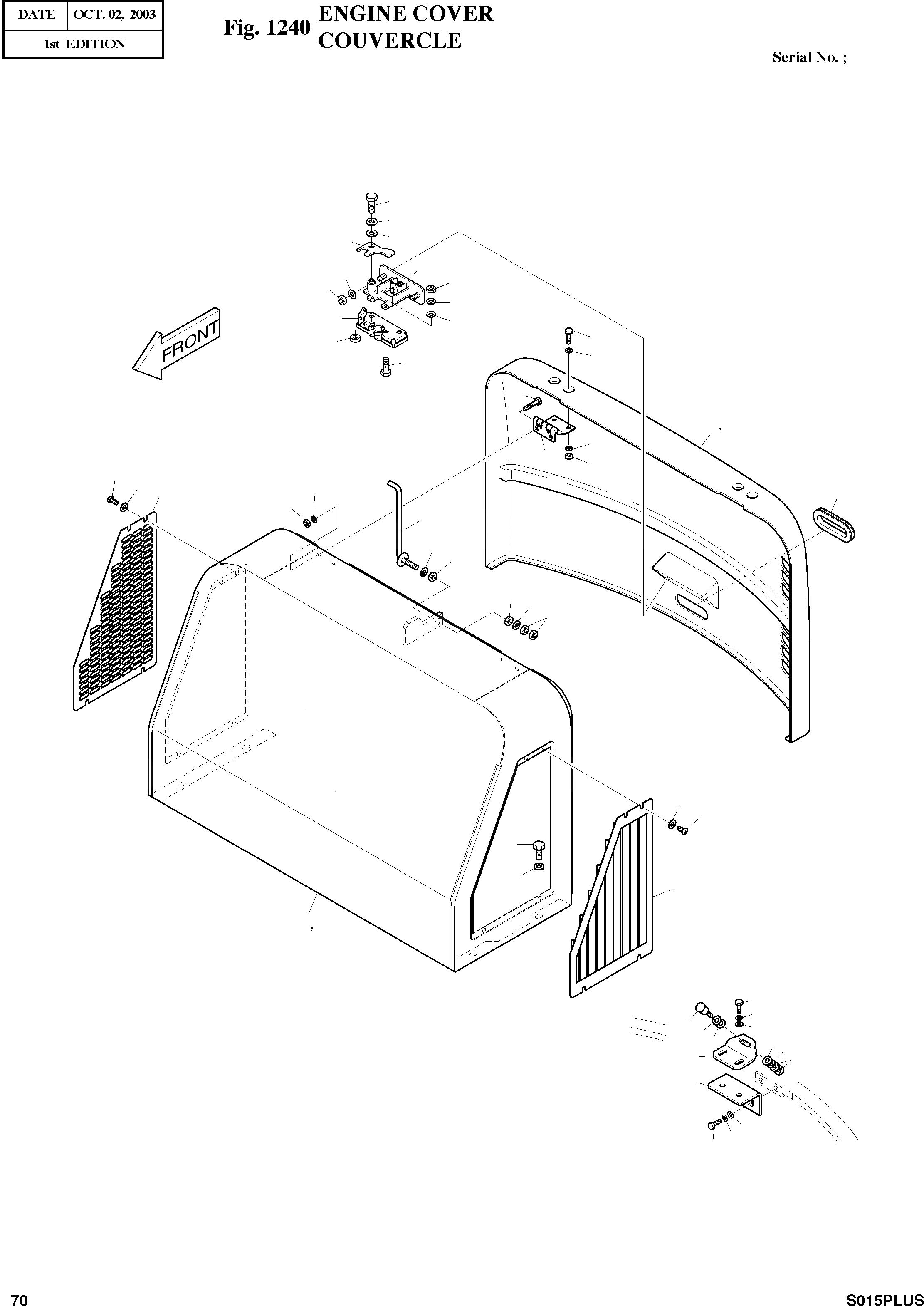

Запчасти Doosan Daewoo ENGINE COVER UPPER STRUCTURE

-

621-00883

ENGINE COVER ASS'Y

SC: D

-2шт.

1

621-00780B

COVER;ENGINE

desc: COUVERCLE

1шт.

1A

1.162-00001

RUBBER;CUSHION

desc: . CAOUTCHOUC

1шт.

2

621-00740B

COVER;ENGINE

desc: COUVERCLE

1шт.

2A

1.162-00001

RUBBER;CUSHION

desc: . CAOUTCHOUC

1шт.

3

621-00885A

COVER;ENGINE(L.H)

desc: COUVERCLE

1шт.

4

621-00886A

COVER;ENGINE(R.H)

desc: COUVERCLE

1шт.

5

195-00824A

BRACKET

desc: SUPPORT

1шт.

6

2197-2661

BRACKET;LATCH

desc: SUPPORT

1шт.

7

2143-1003

LATCH

desc: LOQUET

1шт.

8

195-01460

BRACKET;LATCH

desc: SUPPORT

1шт.

9

195-00280

BRACKET

desc: SUPPORT

1шт.

10

312-00021A

ROD

desc: TIGE

1шт.

11

171-00009A

HINGE

desc: CHARNIERE

2шт.

12

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

14шт.

13

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

13шт.

14

2142-1094

STRIKER

desc: FRAPPER

1шт.

15

S4012533

NUT M8X1.25

desc: ECROU

10шт.

16

2114-1058D29

WASHER;PLAIN

desc: RONDELLE PLATE

5шт.

17

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

2шт.

18

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

2шт.

19

S4012333

NUT M6X1.0

desc: ECROU

2шт.

20

S0505353

BOLT M6X1.0X35

desc: BOULON A 6 PANS

2шт.

21

S0509253

BOLT M8X1.25X30

desc: BOULON A 6 PANS

8шт.

22

S0553853

BOLT M6X1.0X60

desc: BOULON A 6 PANS

1шт.

23

2114-1058D69

WASHER

desc: RONDELLE PLATE

1шт.

24

S4012633

NUT M10X1.5

desc: ECROU

3шт.

25

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

4шт.

26

S0556153

BOLT M8X1.25X40

desc: BOULON A 6 PANS

4шт.

27

2160-1004D4

BUSH;RUBBER

desc: MANCHON CAOUTCHOUC

2шт.

28

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

4шт.

29

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

30

S3457113

SCREW M8X1.25X20

desc: VIS

8шт.

31

2160-1201D21

BUSH;RUBBER

desc: MANCHON CAOUTCHOUC

1шт.
