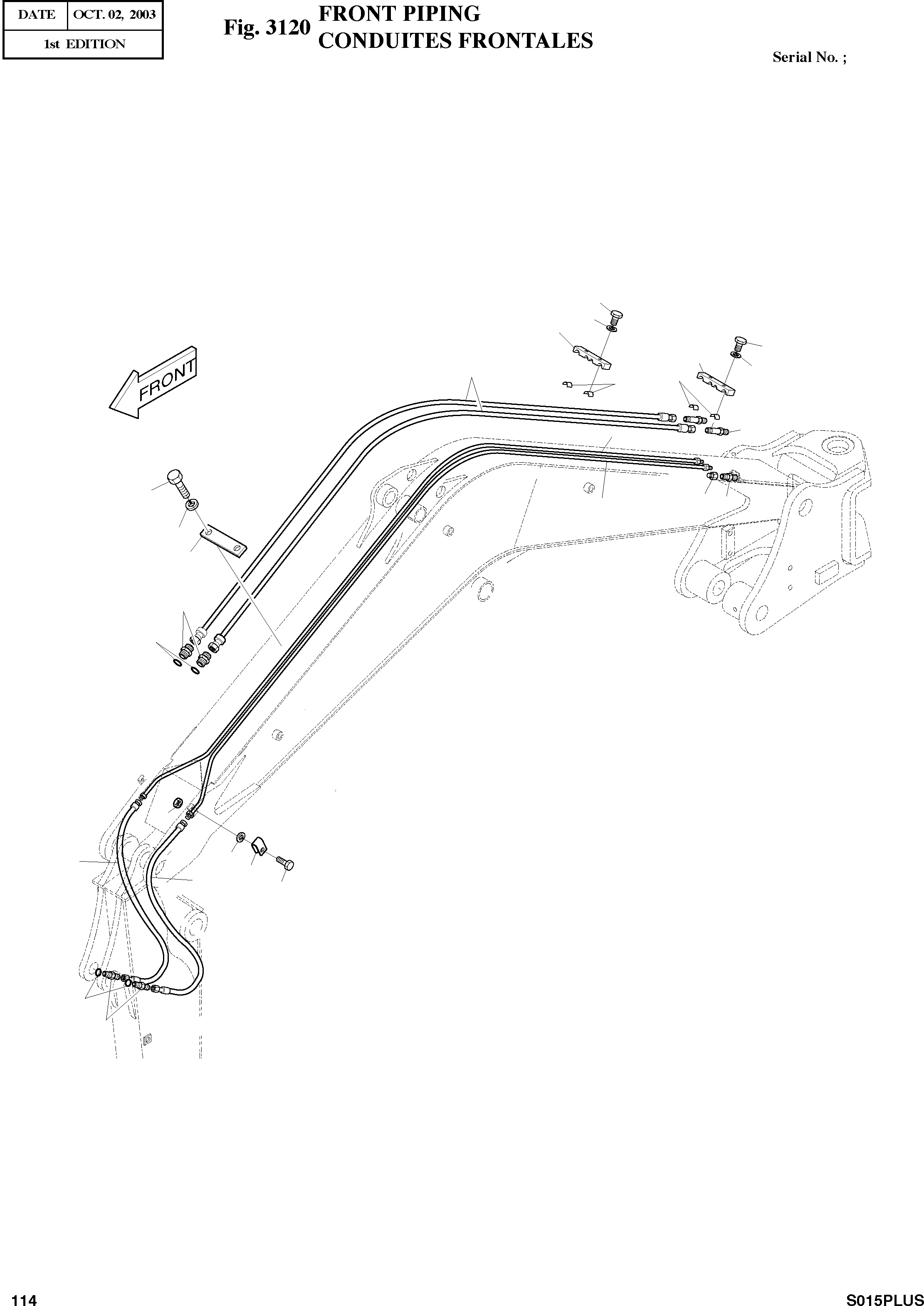

Запчасти Doosan Daewoo FRONT PIPING FRONT ATTACHMENTS

-

400-00585

FRONT PIPING

SC: D

-2шт.

1

2182-1660A

PIPE

desc: CONDUITES

1шт.

2

2182-1661A

PIPE

desc: CONDUITES

1шт.

3

2124-1628

CLAMP

desc: COLLIER

2шт.

4

2181-2820D2

PLUG PF3/8

desc: BOUCHON

2шт.

5

S4012633

NUT M10X1.5

desc: ECROU

2шт.

6

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

7

2124-1644

CLAMP

desc: COLLIER

1шт.

8

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

9

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

10

DS2053738

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

2шт.

11

2184-1026D455

HOSE PF3/8-930L

desc: TUYAU FLEXIBLE

2шт.

12

S8000111

O-RING P11

desc: JOINT TORIQUE

4шт.

13

2124-1626

CLAMP

desc: COLLIER

2шт.

14

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

4шт.

15

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

16

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

17

2181-1126D39

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

18

2181-2718

ADAPTER PFO3/8

desc: RACCORD ADAPTATEUR

2шт.

20

2181-2671A

ADAPTER PF3/8

desc: RACCORD ADAPTATEUR

2шт.

21

S0512353

BOLT M10X1.5X35

desc: BOULON A 6 PANS

2шт.

22

160-00037

PLATE;RUBBER

desc: PLAQUE

4шт.
