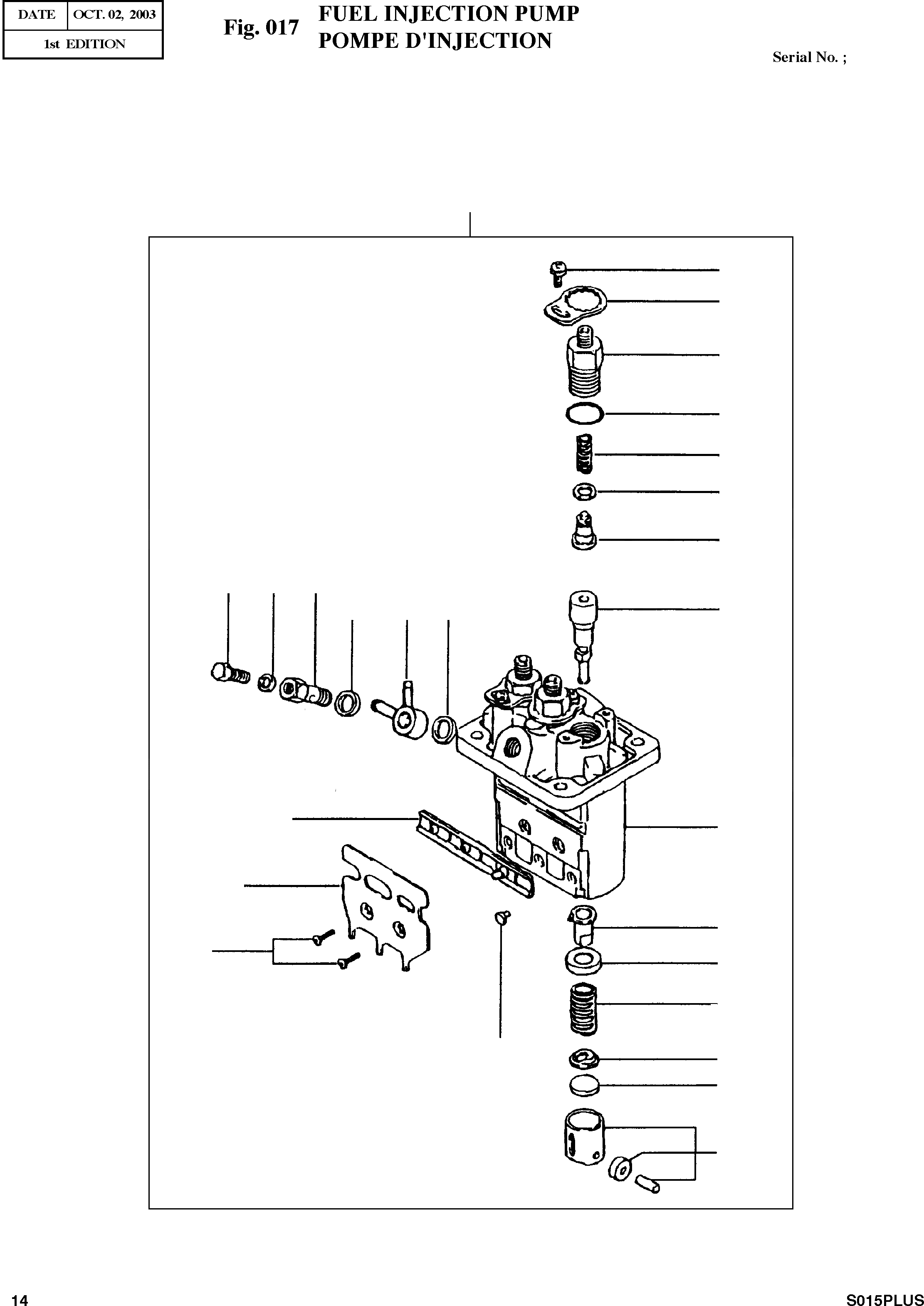

Запчасти Doosan Daewoo FUEL INJECTION PUMP ENGINE PARTS

1

30L65-01700

FUEL INJ PUMP ASS'Y

desc: POMPE

1шт.

1-1

09011-03730

HOUSING SUB ASS'Y

desc: . CARTER

1шт.

1-2

09013-10830

HOLDER;DELIVERY

desc: . POSSESSEUR

3шт.

1-3

90801-10130

O-RING

desc: . JOINT TORIQUE

3шт.

1-4

09013-60530

SPRING;DELIVERY

desc: . RESSORT

3шт.

1-5

09013-70130

GASKET;DELIVERY

desc: . JOINT

3шт.

1-6

09014-02110

VALVE SUB ASS'Y

desc: . VANNE

3шт.

1-7

09015-04280

ELEMENT SUB ASS'Y

desc: . ELEEMENT

3шт.

1-8

09016-00140

SLEEVE SUB ASS'Y

desc: . MANCHON

3шт.

1-9

09016-30140

SEAT;SPRING

desc: . SIEGE

3шт.

1-10

09016-40220

SPRING;PUMP PLUNGER

desc: . RESSORT

3шт.

1-11

09016-50170

SEAT;SPRING

desc: . SIEGE

3шт.

1-12

PLATE;TAPPET SHIM

SC: D

-2шт.

1-13

09017-00220

TAPPET ASS'Y

desc: . ENS.POUSSOIR

3шт.

1-14

09024-40010

SCREW;AIR BLEEDER

desc: . VIS

1шт.

1-15

09024-80010

WASHER;DRAIN SCREW

desc: . RONDELLE

1шт.

1-16

09024-50310

SCREW;HOLLOW

desc: . VIS

1шт.

1-17

09221-70590

NIPPLE;SWIVEL

desc: . GRAISSEUR

1шт.

1-18

09025-10010

WASHER;DRAIN UNION

desc: . RONDELLE

2шт.

1-19

09023-00070

PLATE;LOCK

desc: . PLAQUE

3шт.

1-20

94900-75390

SCREW;WITH WASHER

desc: . VIS

3шт.

1-21

09021-00560

CONTROL RACK ASS'Y

desc: . CREMAILLERE DE LUTTE

1шт.

1-22

94900-20500

SCREW;COUNTERSUNK

desc: . VIS

2шт.

1-23

09069-11020

BRACKET;STOP

desc: . SUPPORT

1шт.

1-24

09018-30090

PIN;TAPPET

desc: . GOUPILLE

3шт.
