Запчасти Doosan Daewoo TRAVELING PIPING TRACK PARTS

-

2400-1898

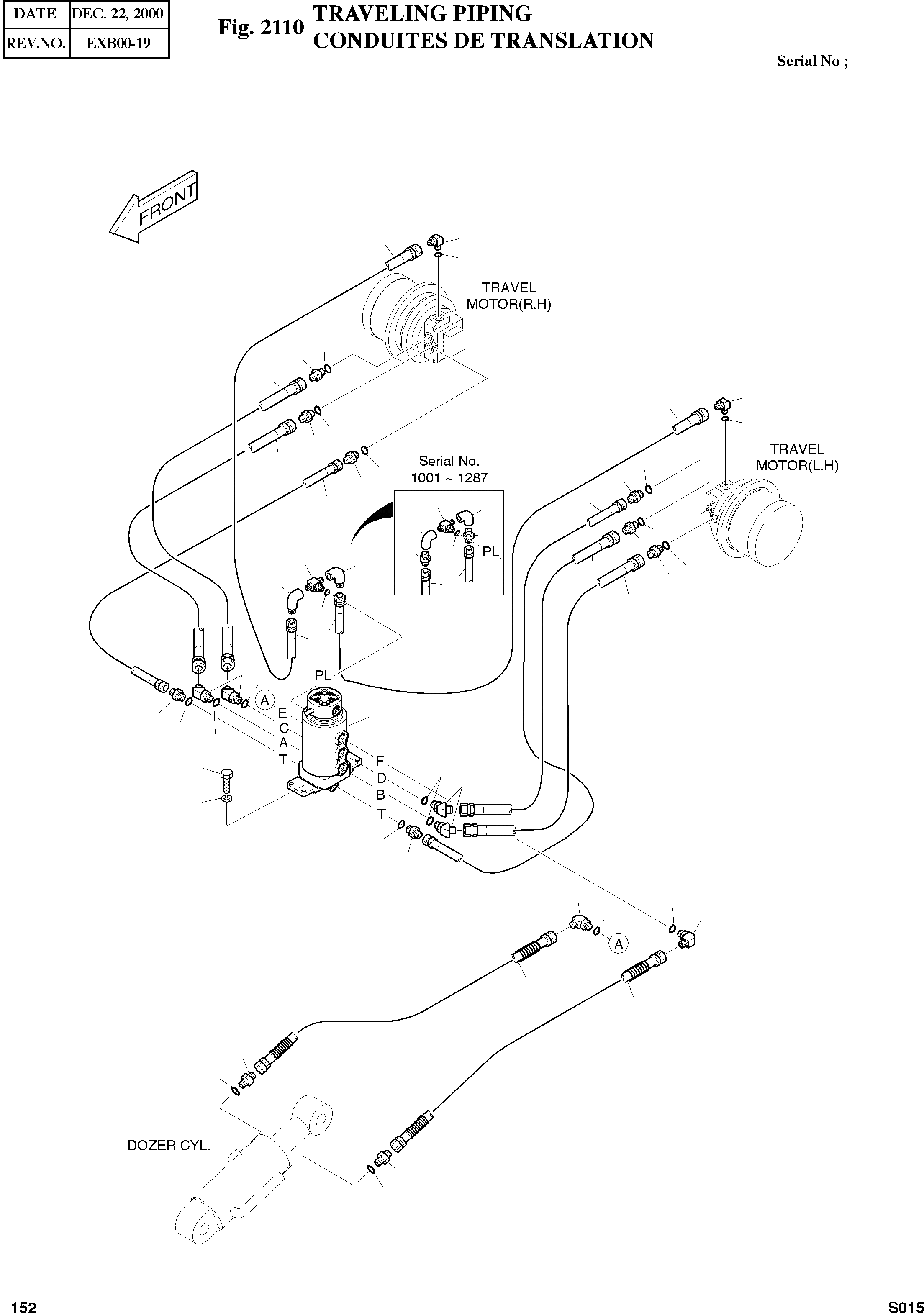

TRAVELLING PIPING

SC: D

-2шт.

1

2480-9021A

JOINT;CENTER

SERIAL: 1001-1287

1шт.

1

2480-9028A

JOINT;CENTER

SERIAL: 1288

1шт.

2

2181-1126D125

ADAPTER PFO1/4X1/8

desc: RACCORD ADAPTATEUR

2шт.

3

2181-1126D36

ADAPTER PFO3/8X1/4

desc: RACCORD

4шт.

4

2181-6079

ELBOW PFO1/8X1/8

SERIAL: 1001-1245

2шт.

4

181-00058

ELBOW PFO1/8X1/8

SERIAL: 1246

2шт.

5

2181-2739

ADAPTER PFO1/8X1/8

desc: RACCORD ADAPTATEUR

2шт.

6

2181-1126D14

ADAPTER PFO1/4X1/4

desc: RACCORD ADAPTATEUR

2шт.

7

2181-1702D4

ELBOW PFO1/4X1/4

desc: COUDE

2шт.

8

2181-2419D6

ELBOW PFO3/8X1/4

desc: COUDE

4шт.

9

2181-2281D18

TEE PFO1/4X1/8X1/8

desc: TE

1шт.

10

2184-9093A

HOSE PF1/8. 750L

SERIAL: 1001-1153

2шт.

10

2184-1045D232

HOSE PF1/8. 750L

SERIAL: 1154

2шт.

11

2184-9094A

HOSE PF1/4. 950L

SERIAL: 1001-1156

2шт.

11

2184-1045D233

HOSE PF1/8. 950L

SERIAL: 1157

2шт.

12

2184-1026D357

HOSE PF1/4. 750L

desc: TUYAU FLEXIBLE

4шт.

13

2184-1054D48

HOSE PF1/4. 600L

desc: TUYAU FLEXIBLE

2шт.

14

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

15

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE M8

4шт.

16

S8000081

O-RING P8

desc: JOINT TORIQUE

4шт.

17

S8000111

O-RING P11

desc: JOINT TORIQUE

5шт.

18

S8000141

O-RING P14

desc: JOINT TORIQUE

10шт.

19

2181-2741

ELBOW PT1/8

SERIAL: 1001-1287

2шт.

19

181-00412

ELBOW PT1/8XPF1/8

SERIAL: 1288

2шт.

20

2181-2742

ADAPTER PT1/8XPF1/8

SERIAL: 1001-1287

2шт.
