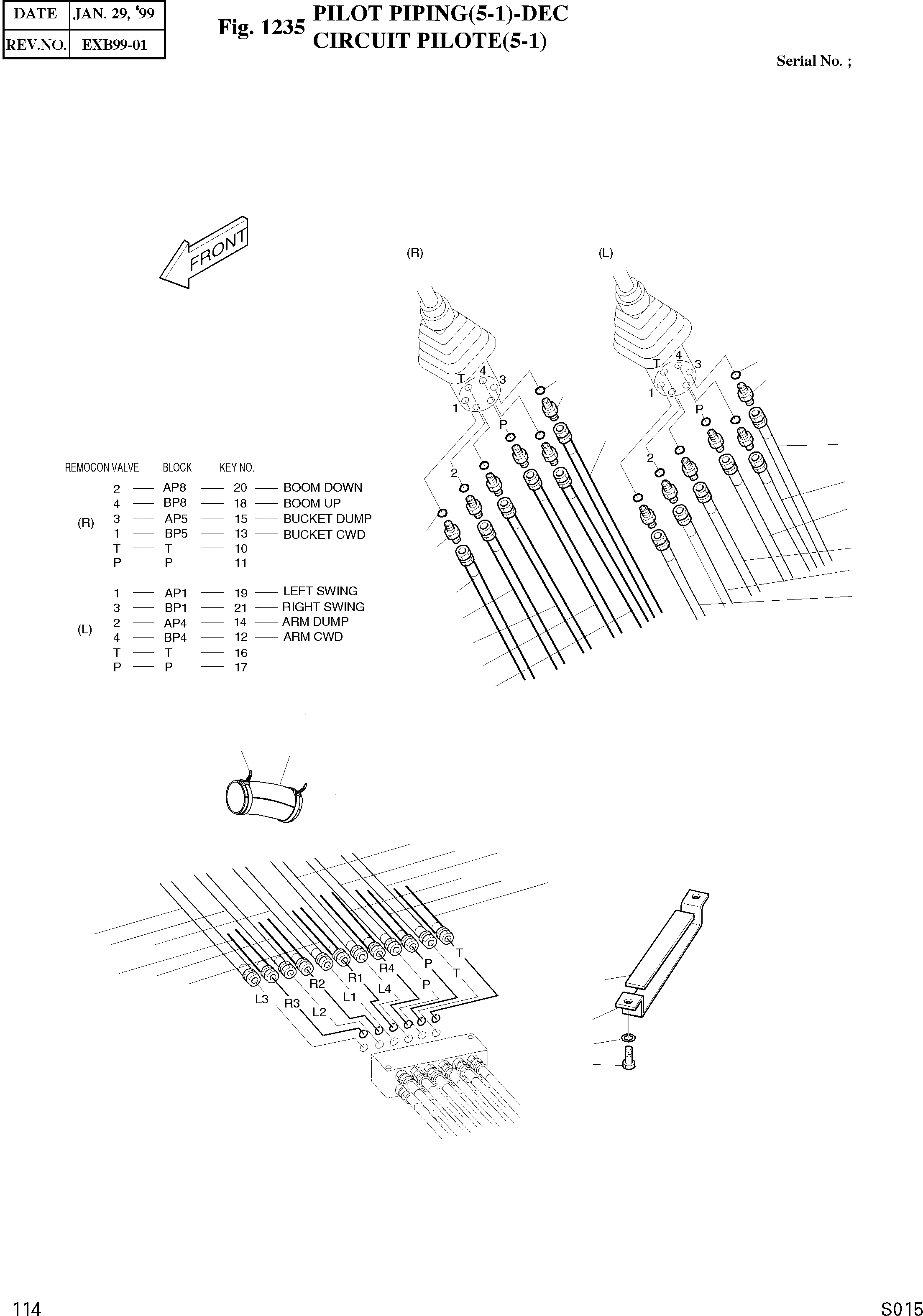

Запчасти Doosan Daewoo PILOT PIPING(5-1)-ISO TYPE BODY PARTS

-

2400-1942

PILOT PIPING

SC: D

-2шт.

4

2159-1204

GUARD;HOSE D60-D50-386L

desc: GARDE

1шт.

5

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

2шт.

6

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE M8

2шт.

7

2181-1126D14

ADAPTER PFO1/4X1/4

desc: RACCORD ADAPTATEUR

12шт.

8

S8000111

O-RING P11

desc: JOINT TORIQUE

12шт.

9

2161-2408

PLATE;RUBBER

desc: CAOUTCHOUC

1шт.

10

2184-1045D115

HOSE PF1/4-1280L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1045D83

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1045D83

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1045D102

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1045D102

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1045D157

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1045D157

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1045D102

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1045D102

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

17

2184-1045D157

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1045D111

HOSE PF1/4-1570L

desc: TUYAU FLEXIBLE

1шт.

19

2184-1045D111

HOSE PF1/4-1570L

desc: TUYAU FLEXIBLE

1шт.

20

2184-1045D221

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

21

2184-1045D221

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

22

2161-1908D2

PLATE;RUBBER

SERIAL: 1041

2шт.

23

2124-1084D3

CLIP;BAND

SERIAL: 1041

6шт.
