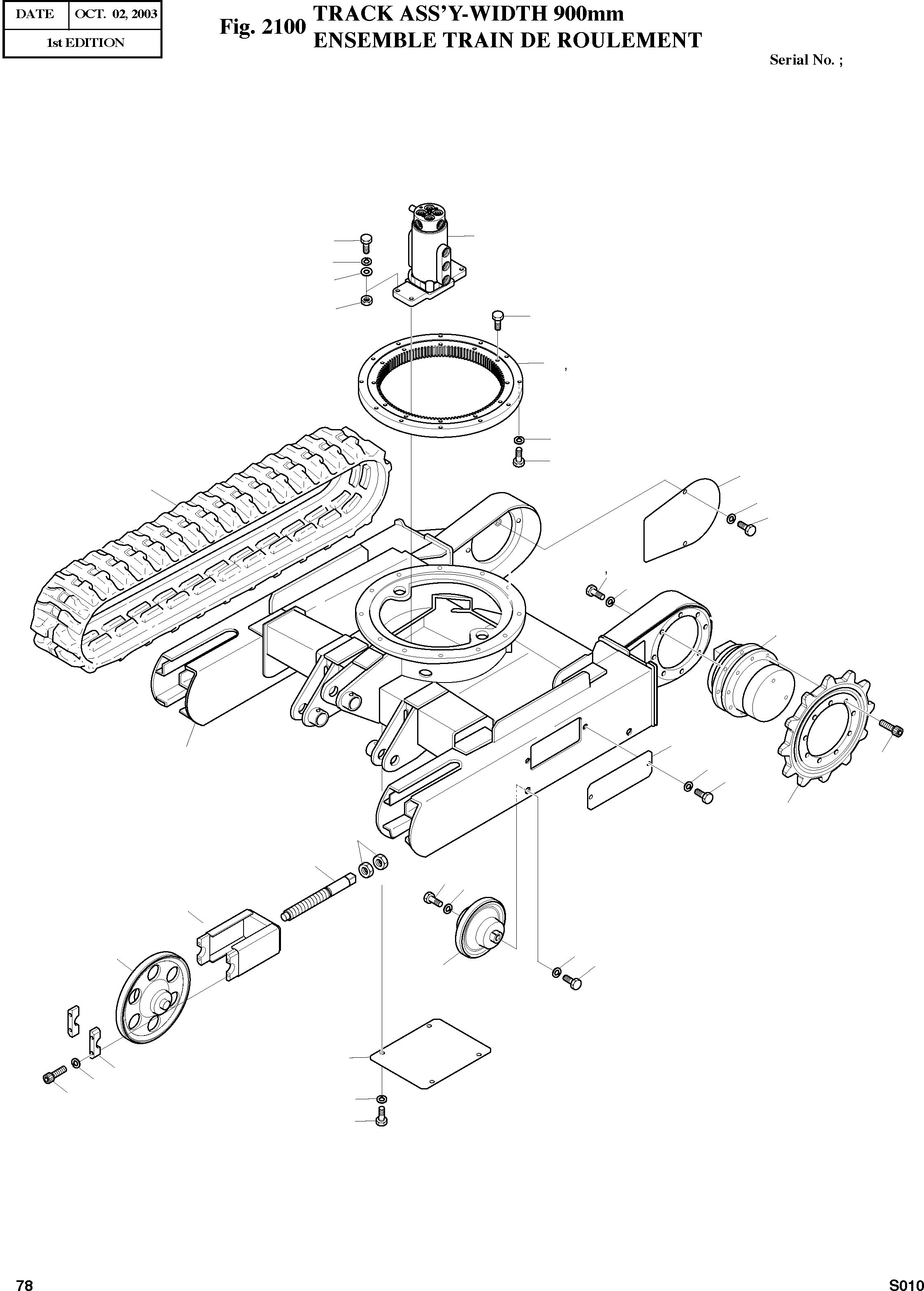

Запчасти Doosan Daewoo TRACK ASSY-WIDTH 900MM TRACK PARTS

-

2604-1339

TRACK ASS'Y

SC: D

-2шт.

1

2604-1353B

FRAME;TRACK

desc: CHASSIS A CHAINES

1шт.

2

401-00084

TRAVEL DEVICE

desc: MOTEUR DE TRANSLATION

2шт.

3

S2211961

BOLT M10X1.5X22

desc: BOULON A 6 PANS

20шт.

5

2108-9001A

SPROCKET

desc: COURONNE DENTEE

2шт.

6

2181-9085B

JOINT;CENTER

desc: JOINT TOURNANT

1шт.

7

S0509353

BOLT M8X1.25X35

desc: BOULON A 6 PANS

4шт.

8

S4012533

NUT M6X1.0

desc: ECROU

4шт.

9

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

16шт.

10

S5010513

WASHER;PLAIN M8

desc: RONDELLE

4шт.

11

2272-9056

RUBBER;TRACK

desc: CAOUTCHOUC

2шт.

12

2270-9006

IDLER ASS'Y

desc: ENSEMBLE BARBOTIN

2шт.

13

2120-1476A

BOLT;ADJUSTER

desc: BOULON A 6 PANS

2шт.

14

2157-1025A

YOKE

desc: ETRIER

2шт.

15

2124-1511

CLAMP

desc: COLLIER

4шт.

16

S2205261

BOLT;SOCKET M6

desc: BOULON A 6 PANS CREUX

8шт.

17

S5102303

WASHER;SPRING M5

desc: RONDELLE ELASTIQUE

8шт.

18

2270-9008

ROLLER;LOWER

desc: GALET

4шт.

19

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

8шт.

20

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

20шт.

21

2109-9049

BEARING;SWING

desc: PALIER D'ORIENTATION

1шт.

21A

180-00297D1

SEAL

desc: . JOINT

1шт.

22

S0560853

BOLT M12X1.75X55

desc: BOULON A 6 PANS

24шт.

23

2213-1072B

COVER;UNDER

desc: COUVERCLE

1шт.

24

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

12шт.

25

2213-1073B

COVER;SIDE

desc: COUVERCLE

2шт.

26

2213-1074B

COVER;MOTOR

desc: COUVERCLE

2шт.

27

S4035231

NUT M22X1.5

desc: ECROU

4шт.

28

S5110601

WASHER;SPRING

desc: RONDELLE ELASTIQUE

16шт.

29

S2212061

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

14шт.
