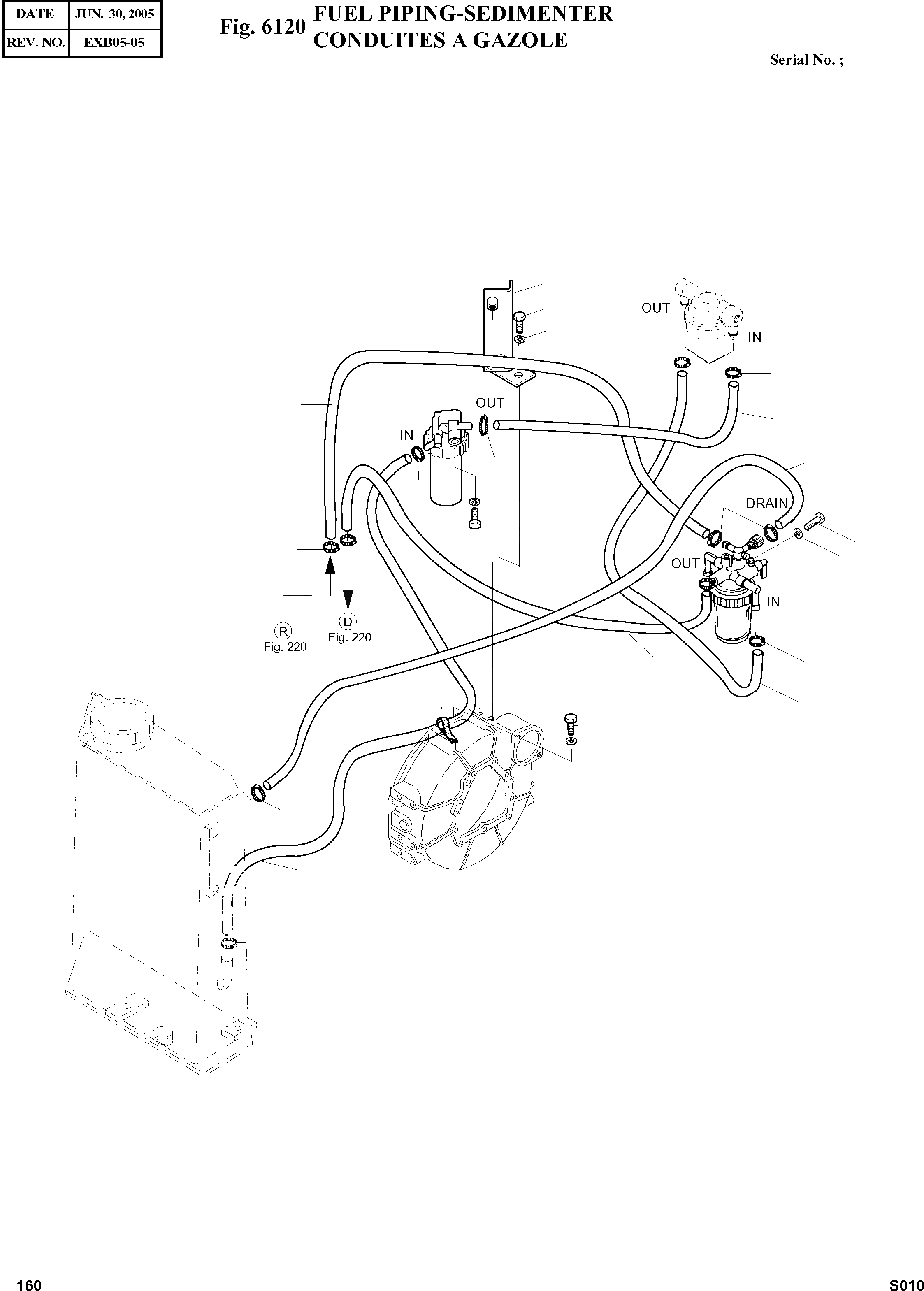

Запчасти Doosan Daewoo FUEL PIPING-SEDIMENTER OPTION PARTS

-

400-00184

FUEL PIPING;SEDIMENTER

SC: D

-2шт.

1

2185-1247D100

HOSE;FUEL(650mm)

desc: TUYAU FLEXIBLE

3шт.

2

2185-1247D98

HOSE;FUEL(500mm)

desc: TUYAU FLEXIBLE

1шт.

3

2185-1247D99

HOSE;FUEL(600mm)

desc: TUYAU FLEXIBLE

1шт.

4

2185-1247D97

HOSE;FUEL(850mm)

desc: TUYAU FLEXIBLE

1шт.

5

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

1шт.

6

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

7

S8450006

CLAMP;HOSE

desc: COLLIER

12шт.

8

2124-1027D18

CLAMP;PIPE

desc: ATTACHE DE TUBE

1шт.

9

S0504353

BOLT M6X1.0X10

desc: BOULON A 6 PANS

1шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

11

195-00238

BRACKET;SEDIMENTER

desc: SUPPORT

1шт.

12

15831-4335-3

SEDIMENTER

desc: SEDIMENTATION

1шт.

13

S0711653

BOLT M10X1.25X16

desc: BOULON A 6 PANS

2шт.

14

S0556753

BOLT M8X1.25X70

desc: BOULON A 6 PANS

1шт.
