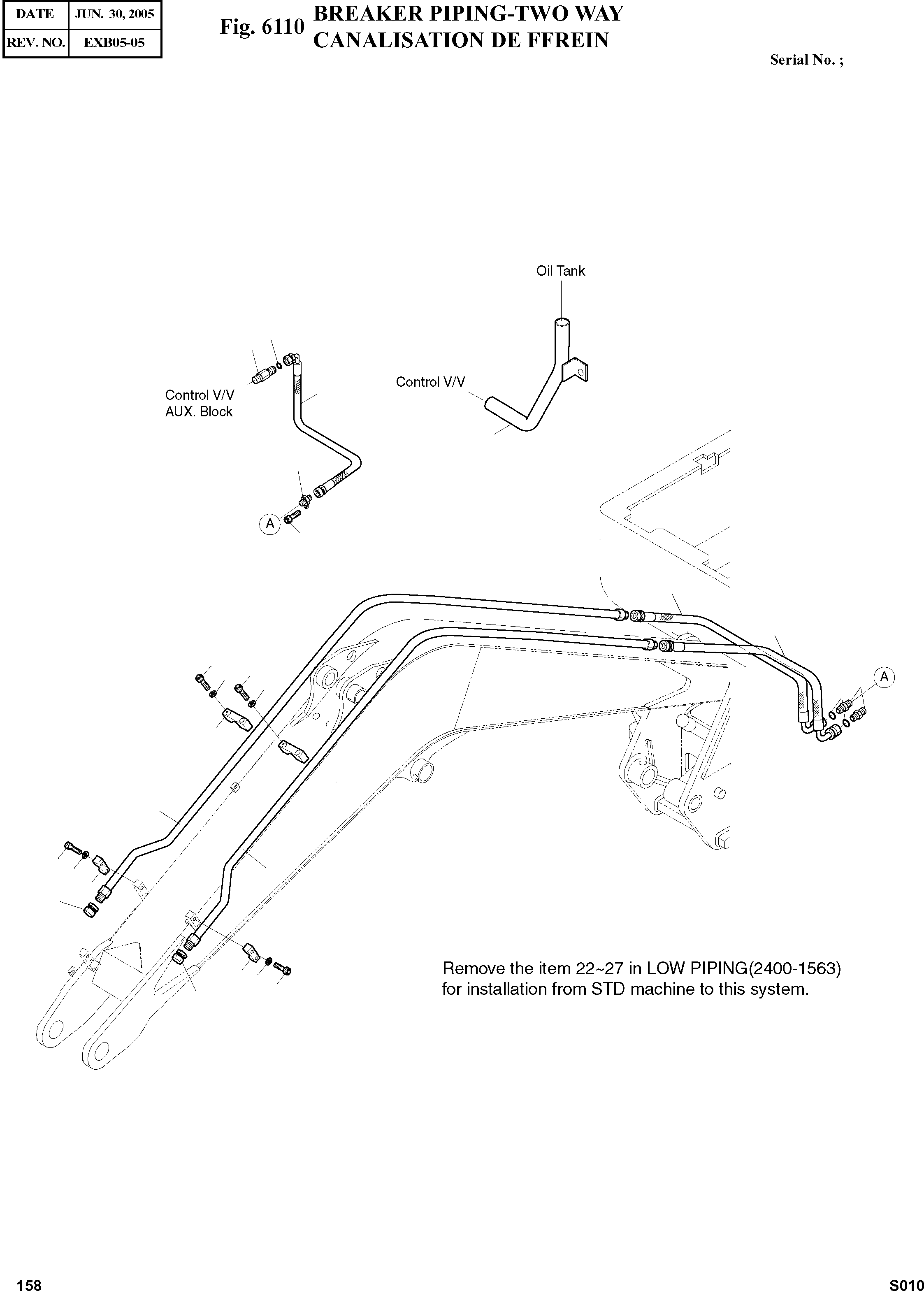

Запчасти Doosan Daewoo BREAKER PIPING-TWO WAY OPTION PARTS

-

2400-2163

OPTION PIPING-TWO WAY

SC: D

-2шт.

1

2140-1687

PIPE

desc: CONDUITE

1шт.

2

2140-1688

PIPE

desc: CONDUITE

1шт.

3

2184-1036D376

HOSE PF3/8XPF3/8-900L

desc: TUYAU FLEXIBLE

1шт.

4

2184-1036D377

HOSE PF3/8XPF3/8-1000L

desc: TUYAU FLEXIBLE

1шт.

5

2181-1126D23

ADAPTER PF3/8XPF1/2

desc: RACCORD

2шт.

6

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

7

S2209263

BOLT;SOCKET M8X1.25X30

desc: BOULON A 6 PANS

12шт.

8

S5110503

SPRING WASHER M8

desc: RONDELLE ELASTIQUE

12шт.

9

2124-1698

CLAMP;PIPE

desc: ATTACHE DE TUBE

12шт.

10

2181-2820D2

PLUG

desc: BOUCHON

2шт.

12

2181-1126D85

ADAPTER PF1/4XPF3/8

desc: RACCORD

1шт.

13

S8000111

O-RING

desc: JOINT TORIQUE

1шт.

14

2184-1036D382

HOSE PF3/8-450L

desc: TUYAU FLEXIBLE

1шт.

15

2181-2427

ADAPTER PF1/2XPF3/8

desc: RACCORD ADAPTATEUR

1шт.

17

S2208663

BOLT;SOCKET M8X1.25X16L

desc: BOULON A 6 PANS

1шт.

19

140-00019

PIPE

desc: CONDUITE

1шт.
