Запчасти Doosan Daewoo FRONT PIPING FRONT PARTS

-

2400-1560

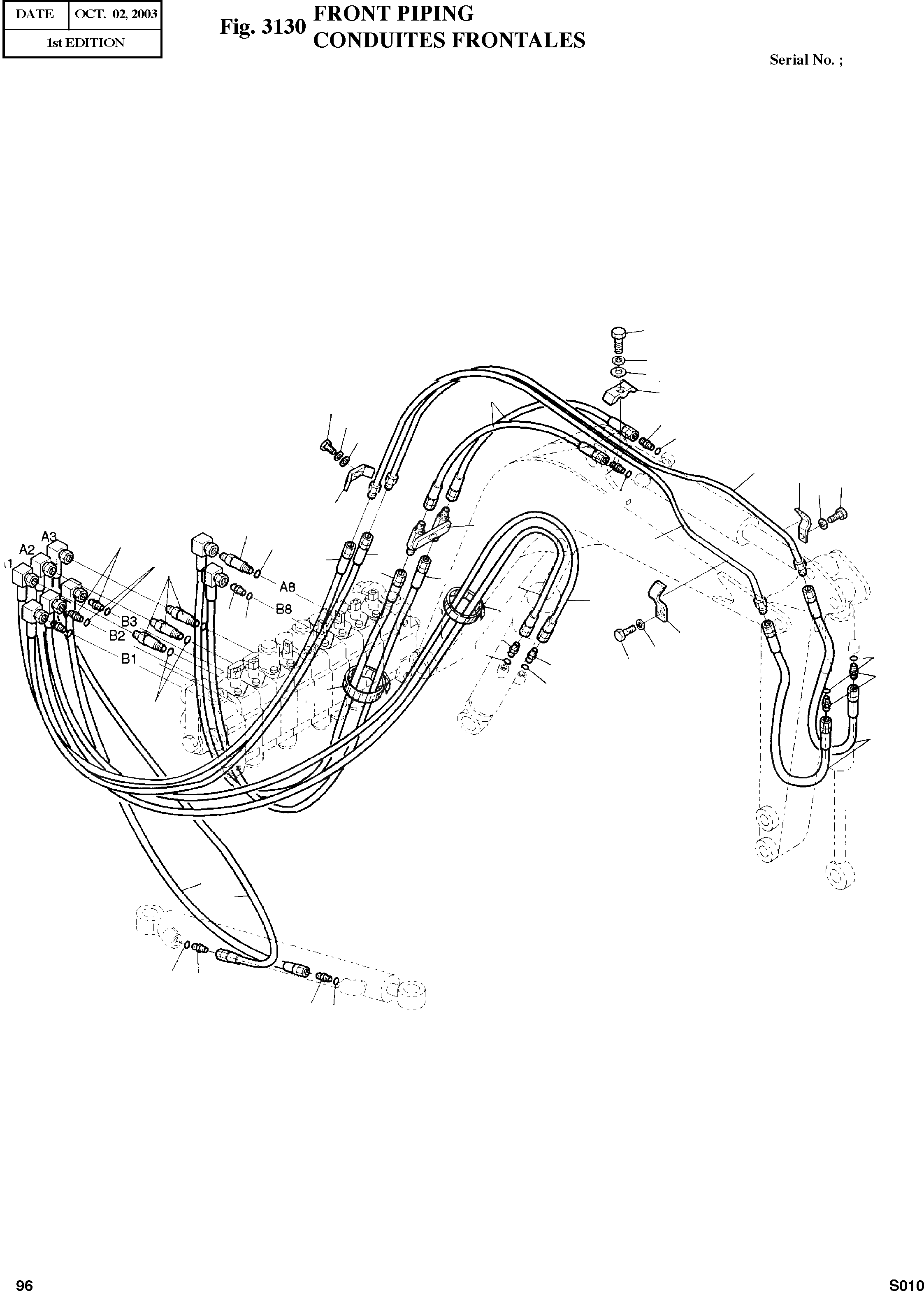

FRONT PIPING ASS'Y

SC: D

-2шт.

1

2181-2397

ADAPTER;S PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

4шт.

2

2181-2396

ELBOW PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

4шт.

3

S8000110

O-RING

desc: JOINT TORIQUE

16шт.

4

2184-1090D21

HOSE;BOOM UP PF1/4-1340L

desc: TUYAU FLEXIBLE

1шт.

5

2184-1090D22

HOSE;BOOM DOWN PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

6

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

8шт.

7

2184-1090D20

HOSE;ARM CWD PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1090D19

HOSE;ARM DUMP PF1/4-1010L

desc: TUYAU FLEXIBLE

1шт.

9

2181-2393

JOINT

desc: JOINT

1шт.

10

2184-1090D18

HOSE;BUCKET CWD PF1/4-950L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1090D17

HOSE;BUCKET DUMP PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1026D326

HOSE PF1/4-610L

desc: TUYAU FLEXIBLE

2шт.

13

2124-1513B

CLAMP

desc: COLLIER

1шт.

14

S5010513

WASHER;PLAIN M8

desc: RONDELLE

2шт.

15

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

16

S0556053

BOLT M8X1.25X35

desc: BOULON A 6 PANS

1шт.

17

S0509153

BOLT M8X1.25X28

desc: BOULON A 6 PANS

1шт.

18

2183-3831C

PIPE;BUCKET CWD

desc: CONDUITE

1шт.

19

2183-3832C

PIPE;BUCKET DUMP

desc: CONDUITE VIDAGE GODET(DROIT)

1шт.

20

2124-1512B

CLAMP

desc: COLLIER

2шт.

21

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

22

S0508453

BOLT M8X1.25X12

desc: BOULON A 6 PANS

2шт.

23

2184-1054D45

HOSE;BUCKET PF1/4-550L

desc: TUYAU FLEXIBLE

2шт.

24

2184-1090D15

HOSE;BOOM SWING PF1/4-520L

desc: TUYAU FLEXIBLE

1шт.

25

2184-1090D18

HOSE;BOOM SWING PF1/4-950L

desc: TUYAU FLEXIBLE

1шт.

26

2124-1084D2

CLIP;BAND

desc: ATTACHE

4шт.
