Запчасти Doosan Daewoo MAIN PIPING BODY PARTS

-

2400-1561

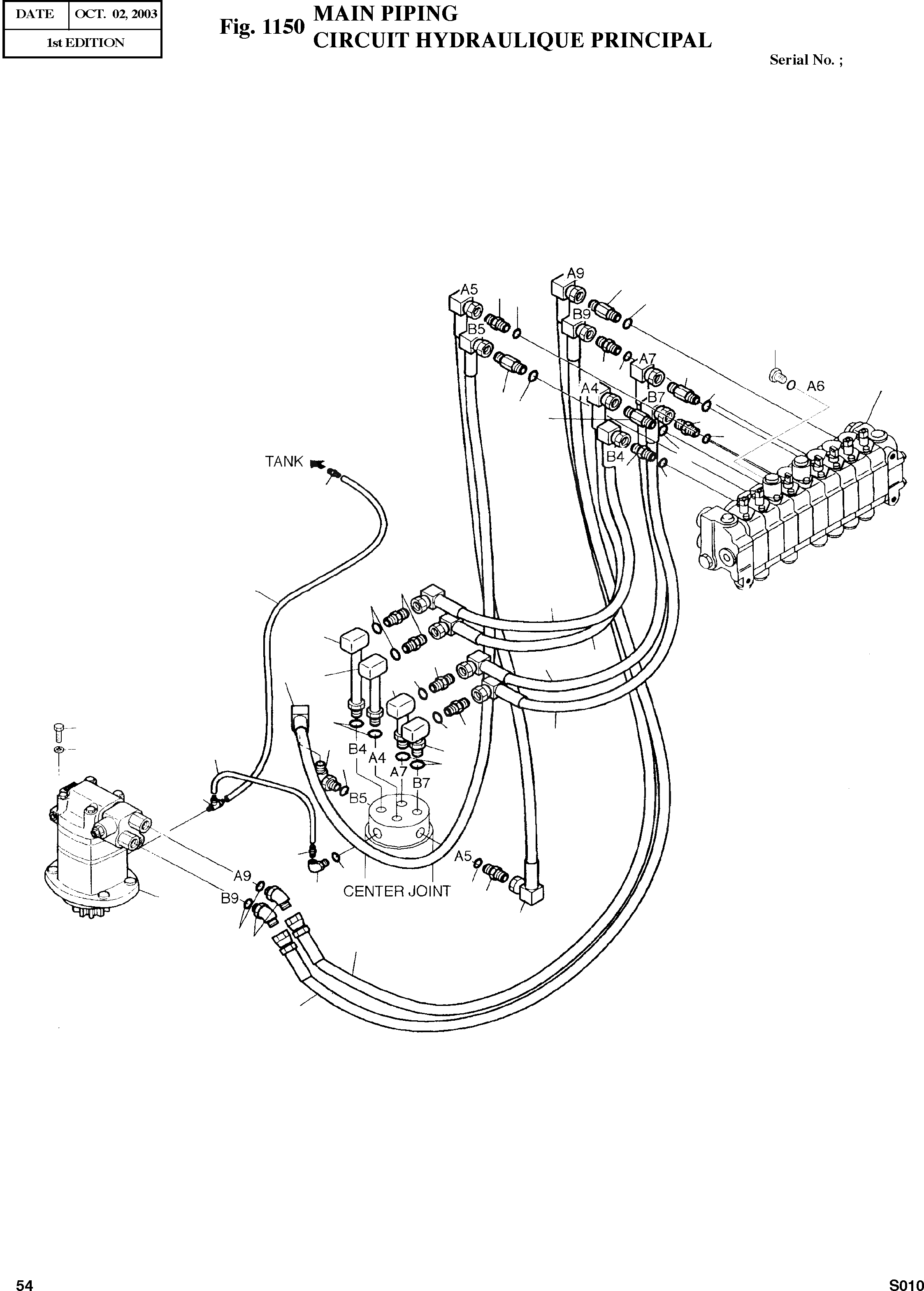

MAIN PIPING ASS'Y

SC: D

-2шт.

1

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

5шт.

2

S8000111

O-RING P11

desc: JOINT TORIQUE

18шт.

3

2181-2295D8

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

4

2181-2295D9

ELBOW PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

5

2181-2295D10

ELBOW PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

6

2181-2295D11

ELBOW PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

7

2184-1129D14

HOSE;B5 PF1/4-360L

desc: TUYAU FLEXIBLE

1шт.

8

DS2064020

HOSE;B7 PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1129D16

HOSE;A4 PF1/4-260L

desc: TUYAU FLEXIBLE

1шт.

10

2401-9174

VALVE;CONTROL

desc: VANNE DE COMMANDE

1шт.

11

2184-1129D17

HOSE;B4 PF1/4-310L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1129D18

HOSE;A5 PF1/4-280L

desc: TUYAU FLEXIBLE

1шт.

13

2181-2430D1

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

14

2184-1052D41

HOSE;B9 PF1/4-360L

desc: TUYAU FLEXIBLE

1шт.

15

2181-2397

ADAPTER;S PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

4шт.

16

2181-2396

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

4шт.

17

2184-1052D42

HOSE;A9 PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

18

2181-9092

TEE PT1/8

desc: TE

1шт.

19

2181-1703D2

ELBOW PFO1/4-PT1/4

desc: COUDE

1шт.

20

2185-1006D41

TUBE 750L

desc: TUBE

1шт.

21

2181-9093

ADAPTER PT1/4

desc: RACCORD ADAPTATEUR

2шт.

22

2185-1006D42

TUBE 200L

desc: TUBE

1шт.

23

2184-1129D15

HOSE;A7 FP1/4-180L

desc: TUYAU FLEXIBLE

1шт.

24

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

25

2401-9169

MOTOR;SWING

desc: MOTEUR

1шт.

26

2181-1950D1

PLUG

desc: BOUCHON

1шт.

27

S0512353

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

28

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.
