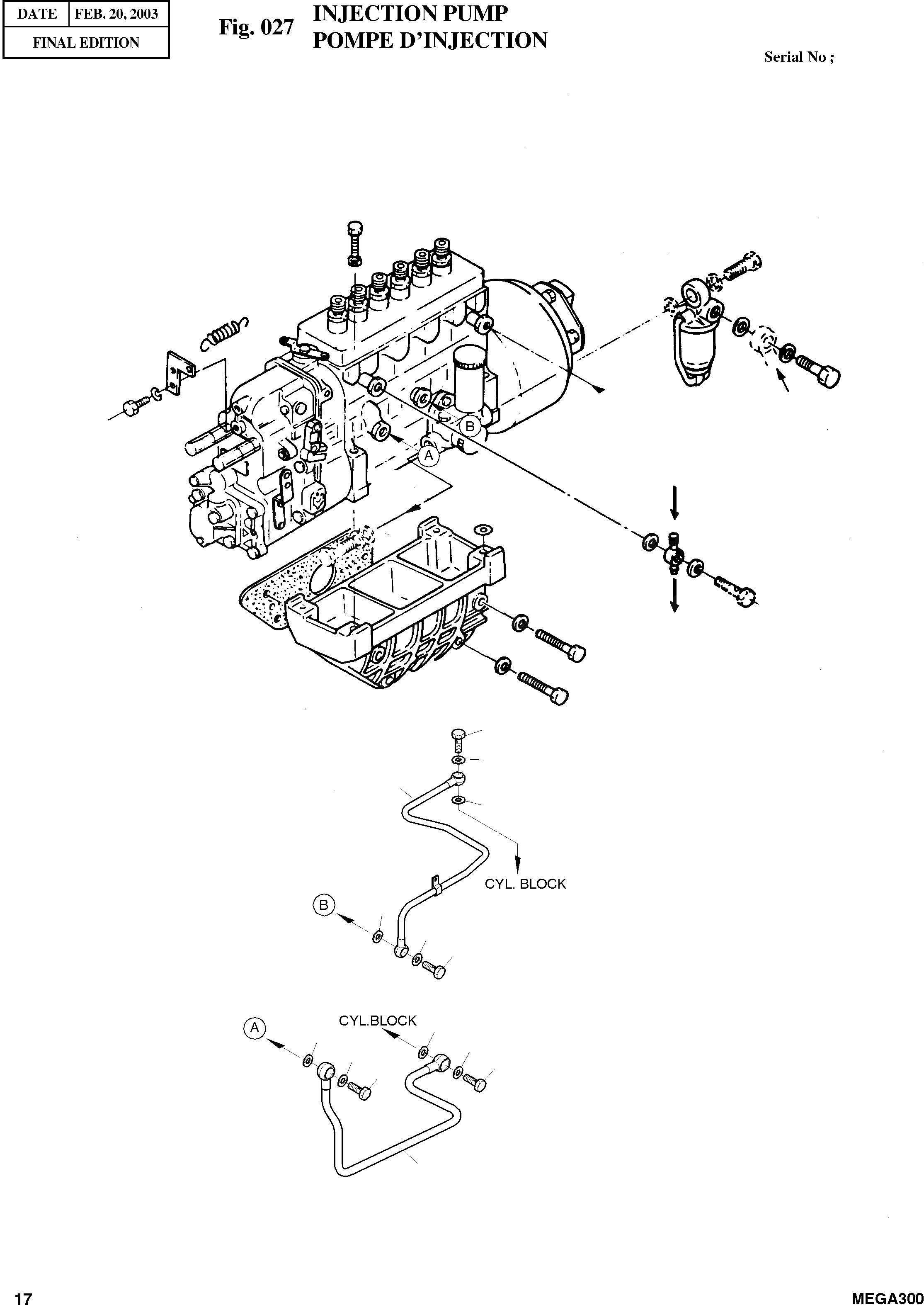

Запчасти Doosan Daewoo INJECTION PUMP ENGINE PARTS

1

65.11101-7167

PUMP;INJECTION

SERIAL: 200004

1шт.

1

65.11101-7240

PUMP;INJECTION

SERIAL: 200005

1шт.

2

65.12501-7019

FUEL STRAINER ASS'Y

desc: ENSEMBLE FILTRE A GAZOLE

1шт.

3

06.78140-2404

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

4

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

2шт.

5

65.98101-0008

UNION;DOUBLE BANJO

desc: RACCORD UNION

1шт.

6

65.11605-0056

BRACKET

desc: SUPPORT

1шт.

6

65.11605-0056

BRACKET

desc: SUPPORT

7

06.01283-7111

BOLT;HEX. M8X16

desc: BOULON 6 PANS

2шт.

7

06.01283-7111

BOLT;HEX. M8X16

desc: BOULON 6 PANS

8

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE A8

2шт.

8

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE A8

9

65.97610-0007

SPRING;TENSION

desc: RESSORT DE TENSION

1шт.

9

65.97610-0007

SPRING;TENSION

desc: RESSORT DE TENSION

11

06.11405-0005

SHIM 0.1mm

desc: CALE

1шт.

11

06.11405-0006

SHIM 0.15mm

desc: CALE

1шт.

11

06.11405-0007

SHIM 0.2mm

desc: CALE

1шт.

11

06.11405-0008

SHIM 0.5mm

desc: CALE

1шт.

12

65.11401-0029

BRACKET;FUEL INJECTION PUMP

SERIAL: 300038

1шт.

12

65.11401-0033

BRACKET;FUEL INJECTION PUMP

SERIAL: 300039

1шт.

13

06.01493-4315

BOLT;HEX. M12X1.5X80

SERIAL: 300038

1шт.

13

06.01493-4320

BOLT;HEX. M12X1.5X110

SERIAL: 300039

2шт.

13-1

06.01493-4305

BOLT;HEX. M12X1.5X30

SERIAL: 300038

2шт.

13-1

06.01493-4312

BOLT;HEX. M12X1.5X65

SERIAL: 300039

2шт.

13-1

06.01493-4315

BOLT;HEX. M12X1.5X80

SERIAL: 300038

1шт.

13-1

06.01493-4315

BOLT;HEX. M12X1.5X80

SERIAL: 300039

14

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

4шт.

16

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

4шт.

16

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

17

06.15010-2312

WASHER 10.5

desc: RONDELLE 10.5

4шт.

17

06.15010-2312

WASHER 10.5

desc: RONDELLE 10.5

18

06.01013-9222

BOLT;HEX. M10X85

desc: BOULON A 6 PANS

4шт.

18

06.01923-3228

BOLT;HEX. M10X85

desc: BOULON A 6 PANS

4шт.

19

65.11405-0009

SHIM 0.1mm

desc: CALE

4шт.

19

65.11405-0010

SHIM 0.3mm

desc: CALE

4шт.

19

65.11405-0013

SHIM 0.2mm

desc: CALE

1шт.

20

65.05701-5332

PIPE;OIL(BLOCK-I/P)

desc: TUYAU D'HUILE

1шт.

21

65.98150-0028

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

21

65.98150-0052

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

22

06.56190-0716

RING;SEAL A10X16

desc: BAGUE D'ETANCHEITE

2шт.

22

06.56180-0714

RING;SEAL A10X16

desc: BAGUE

3шт.

23

65.05701-5188

PIPE;OIL(BLOCK-I/P)

desc: TUYAU D'HUILE

1шт.

24

06.78140-2404

SCREW;HOLLOW

desc: VIS CREUSE

2шт.

25

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

4шт.
