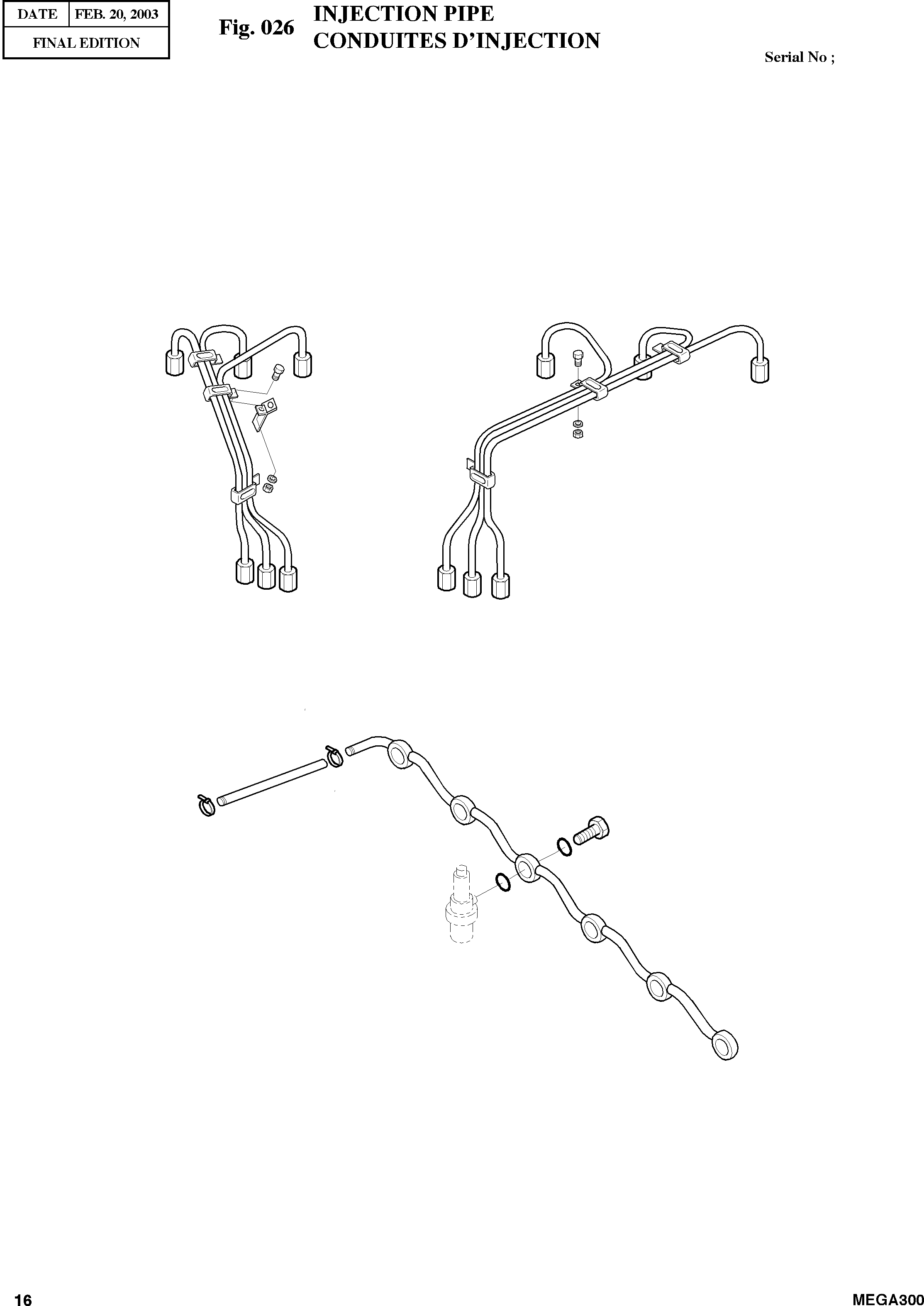

Запчасти Doosan Daewoo INJECTION PIPE ENGINE PARTS

-

65.00301-6034

INJECTION PIPE ASS'Y

SERIAL: 309999

1шт.

-

65.10301-6151

INJECTION PIPE ASS'Y

SERIAL: 400001

1шт.

1

65.10301-5167

CYLINDER;INJECTION PIPE NO.1

desc: CYLINDRE

1шт.

2

65.10301-5168

CYLINDER;INJECTION PIPE NO.2

desc: CYLINDRE

1шт.

3

65.10301-5169

CYLINDER;INJECTION PIPE NO.3

desc: CYLINDRE

1шт.

4

65.97480-0144

BRACKET

desc: SUPPORT

1шт.

5

65.97401-0145

CLIP;PIPE

desc: CLIP DE FIXATION

1шт.

6

06.04050-1308

SCREW

desc: VIS

2шт.

7

06.16731-2106

WASHER;SPRING A6

desc: RONDELLE ELASTIQUE A6

2шт.

8

06.11062-8112

NUT;HEX. M6

desc: ECROU 6 PANS M6

2шт.

-

65.10301-6152

INJECTION PIPE ASS'Y(FR)

SERIAL: 400001

1шт.

9

65.10301-5170

CYLINDER;INJECTION PIPE NO4

desc: CYLINDRE

1шт.

10

65.10301-5171

CYLINDER;INJECTION PIPE NO5

desc: CYLINDRE

1шт.

11

65.10301-5172

CYLINDER;INJECTION PIPE NO6

desc: CYLINDRE

1шт.

12

65.96330-0005

TUBE;FUEL OVER FLOW

desc: TUYAU

1шт.

12

65.96330-0134

TUBE;FUEL OVER FLOW

desc: TUYAU

1шт.

13

65.97445-0001

CLAMP;SPRING

desc: COLLIER A RESSSORT

2шт.

14

65.12301-5096

FUEL OVER FLOW PIPE ASS'Y

desc: ENSEMBLE CONDUITES DE TROP-PLEIN

1шт.

15

65.98150-0042

SCREW;HOLLOW M8X1

desc: VIS CREUSE

6шт.

16

06.56180-0712

RING;SEAL A8X14

desc: BAGUE D'ETANCHEITE

12шт.
