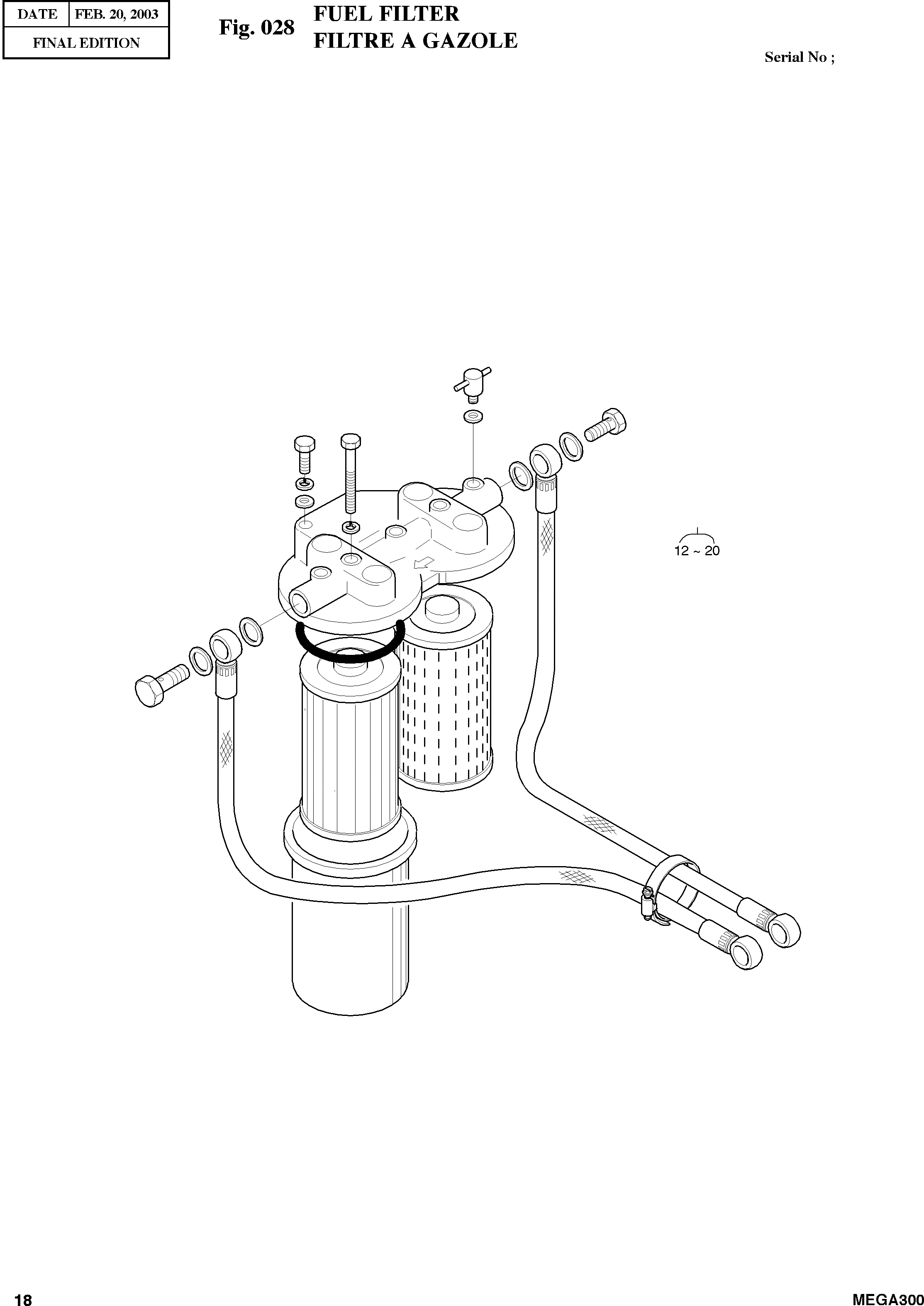

Запчасти Doosan Daewoo FUEL FILTER ENGINE PARTS

1

65.12501-7003

FUEL FILTER ASS'Y

desc: ENSEMBLE FILTRE A GAZOLE

1шт.

2

06.01493-4306

BOLT;HEX. M12X1.5X35

desc: BOULON A 6 PANS

2шт.

2

06.01953-3318

BOLT;HEX. M12X1.5X35

desc: BOULON A 6 PANS

2шт.

3

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

2шт.

3

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

4

06.15010-2313

WASHER M12

desc: RONDELLE M12

2шт.

4

06.15010-2313

WASHER M12

desc: RONDELLE M12

5

65.96341-0054

HOSE;FUEL(FILTER IN)

SERIAL: 200004

1шт.

5

65.96341-0097

HOSE;FUEL(FILTER IN)

SERIAL: 200005

1шт.

6

65.96341-0007

HOSE;FUEL(FILTER OUT)

SERIAL: 200004

1шт.

6

65.96341-0098

HOSE;FUEL(FILTER OUT)

SERIAL: 200005

1шт.

9

65.97460-0001

BAND;TENSION

desc: COLLIER

1шт.

10

65.90420-0004

SCREW;HOLLOW

desc: VIS CREUSE

2шт.

11

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

4шт.

12

65.12504-5002

COVER;FILTER

desc: COUVERCLE

1шт.

13

65.96507-0003

RING;SEAL

desc: BAGUE D'ETANCHEITE

2шт.

14

65.12509-5002

SCREW;BREATHER M8

desc: RENIFLARD M8

2шт.

15

06.56180-0711

RING;SEAL A8X12

desc: BAGUE

2шт.

15

06.56180-0811

RING;SEAL A8X12

desc: BAGUE

2шт.

16

06.01014-9120

BOLT;HEX. M8X75

desc: BOULON A 6 PANS

2шт.

16

06.01013-7122

BOLT;HEX. M8X85

desc: BOULON A 6 PANS

2шт.

17

65.12506-0006

PACKING

desc: RONDELLE D'ETANCHEITE

2шт.

18

65.12503-5002

ELEMENT;FUEL FILTER MICRO

desc: ELEMENT FILTRANT

1шт.

19

65.12503-5004

ELEMENT;FUEL FILTER MICRO

desc: ELEMENT FILTRANT

1шт.

20

65.12502-5002

HOUSING;FILTER

desc: LOGEMENT DE FILTRE

2шт.
