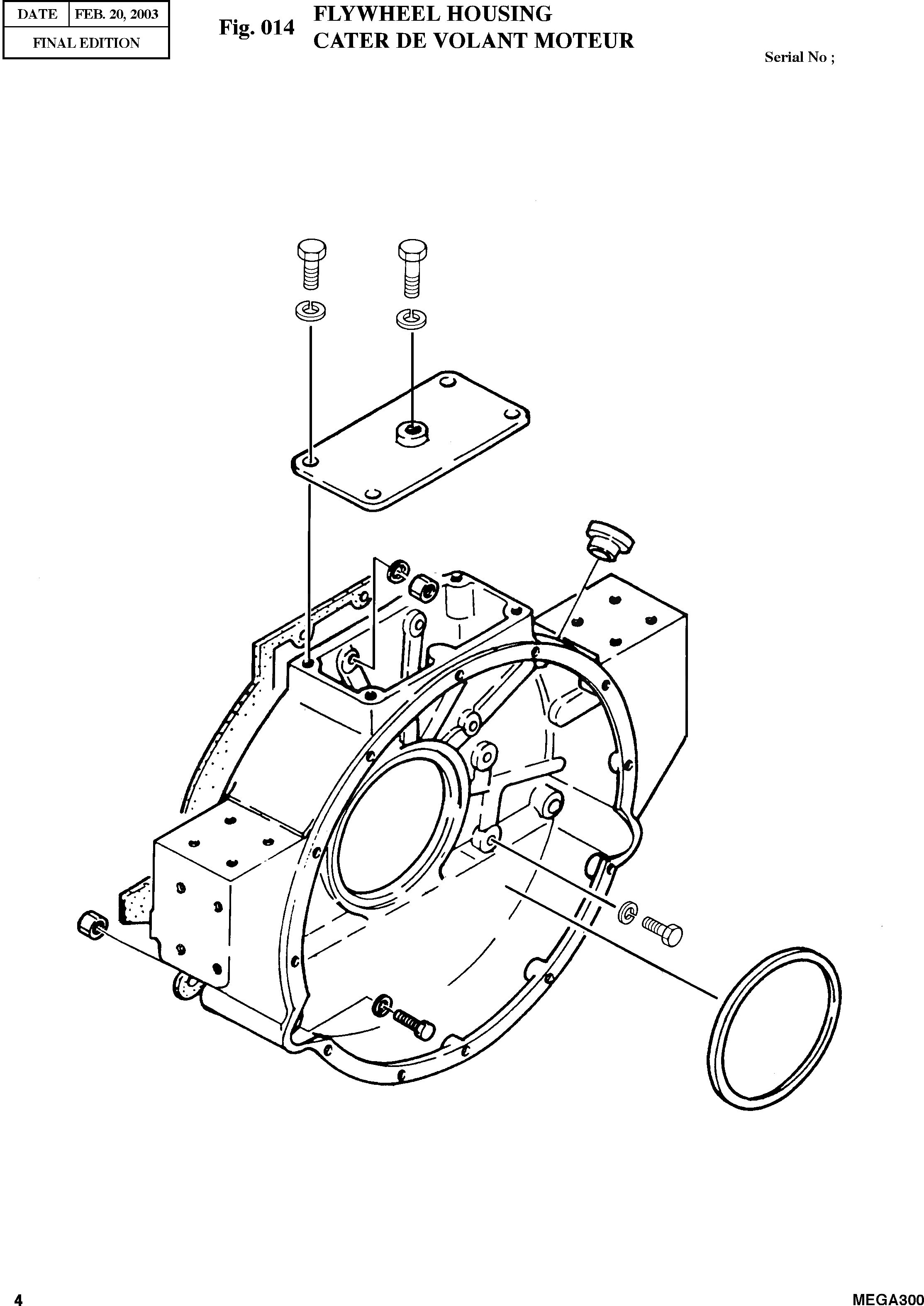

Запчасти Doosan Daewoo FLYWHEEL HOUSING ENGINE PARTS

1

65.01401-0172

HOUSING;FLY WHEEL

desc: CARTER DE VOLANT

1шт.

2

65.01904-0019

GASKET;FLY WHEEL HOUSING

SERIAL: 500054

1шт.

2

65.01904-0022

GASKET;FLY WHEEL HOUSING

SERIAL: 500055

1шт.

3

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

10шт.

3

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

2шт.

4

06.01493-4308

BOLT;HEX. M12X1.5X45

desc: BOULON A 6 PANS

8шт.

4

06.01943-3320

BOLT;HEX. M12X1.5X45

desc: BOULON A 6 PANS

8шт.

4

65.90001-6002

BOLT;HEX. M12X1.5X45

SERIAL: 400001

10шт.

5

06.11063-9216

NUT;HEX. M12X1.5

desc: ECROU 6 PANS

2шт.

6

65.96002-0003

PLUG;RUBBER

desc: BOUCHON CAOUTCHOUC

1шт.

7

06.02074-0317

BOLT;REMER M14X85

desc: BOULON A 6 PANS

2шт.

8

06.16731-2110

WASHER;SPRING A14

desc: RONDELLE ELASTIQUE A14

2шт.

9

06.11063-8217

NUT;HEX. M14

desc: ECROU HEXAGONAL M14

2шт.

12

65.01510-0025

SEAL;CRANK SHAFT(REAR)

SERIAL: 309999

1шт.

12

65.01510-0027

SEAL;CRANK SHAFT(REAR)

SERIAL: 400001

1шт.

13

65.91615-0010

COVER;BLIND

desc: COUVERCLE BORGNE

1шт.

14

06.01283-7215

BOLT;HEX. M10X25

desc: BOULON A 6 PANS

4шт.

14

06.01914-3215

BOLT;HEX. M10X25

desc: BOULON A 6 PANS

4шт.

15

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE. A10

4шт.

15

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE. A10

16

06.08092-2405

SCREW;PLUG M16X1.5

desc: BOUCHON FILETE

1шт.

17

06.56190-0708

RING;SEAL A18X24

desc: BAGUE D'ETANCHEITE

1шт.
