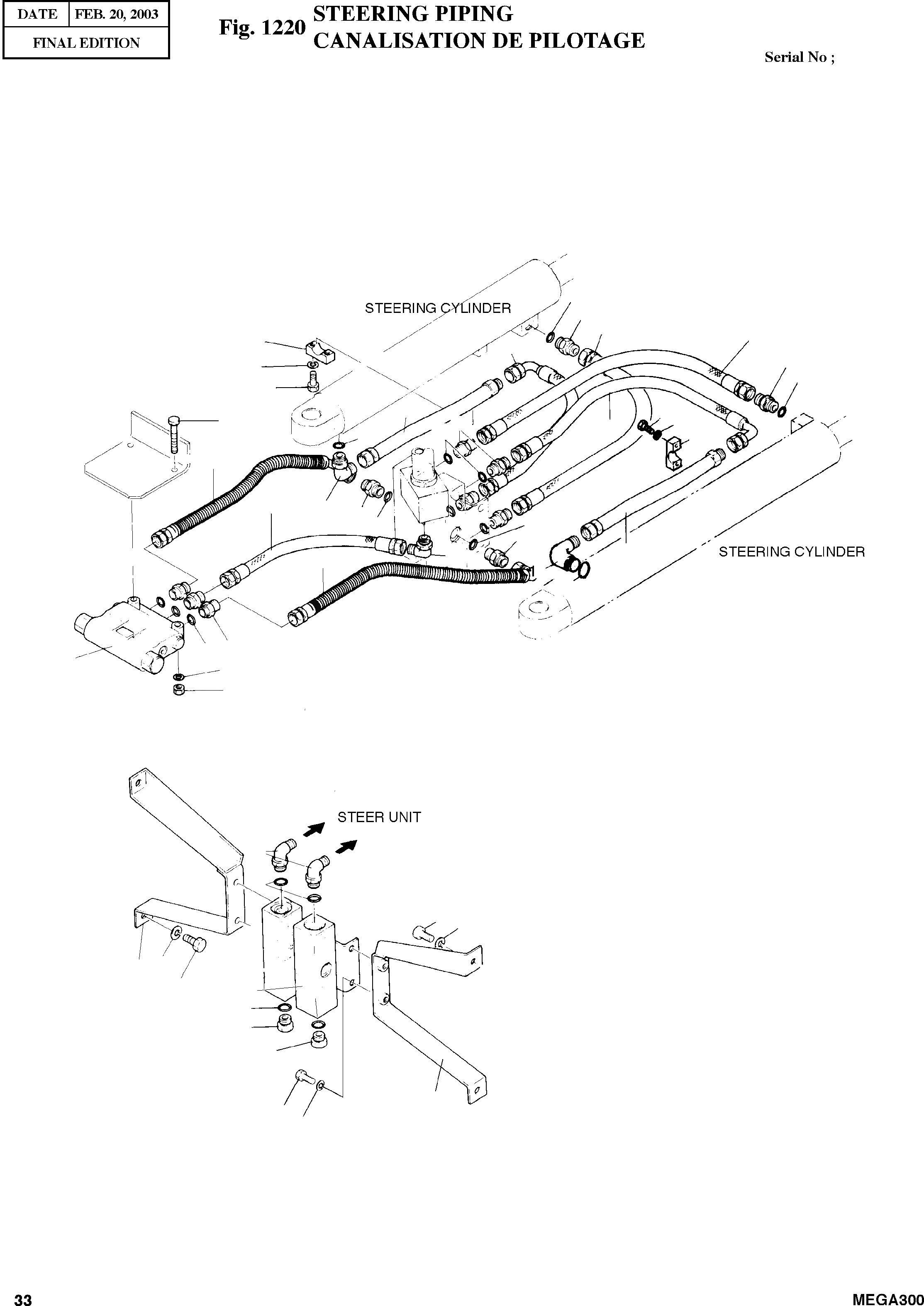

Запчасти Doosan Daewoo STEERING PIPING BODY PARTS

-

4400-4099

PIPING;STEERING

SC: D

-2шт.

1

4420-9212

VALVE;CUSHION

desc: VANNE

1шт.

2

S0559153

BOLT M10X1.5X80

desc: BOULON A 6 PANS

2шт.

3

S4012633

NUT M10X1.5

desc: ECROU

2шт.

4

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

10шт.

5

2181-1186D3

ELBOW PF-PT1/2

desc: COUDE

1шт.

6

2181-1126D3

ADAPTER PF1/2-UNF7/8

desc: RACCORD ADAPTATEUR

3шт.

7

2180-1026D1

O-RING

desc: JOINT TORIQUE

5шт.

8

2184-1071D9

HOSE PF1/2-630L

desc: TUYAU FLEXIBLE

4шт.

9

2184-1026D72

HOSE PF1/2-500L

desc: TUYAU FLEXIBLE

1шт.

10

2181-1126D6

ADAPTER;S PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

8шт.

11

S8000181

O-RING P18. 1/2"PF

desc: JOINT TORIQUE

10шт.

12

4183-4615

PIPE

SERIAL: 1-2

2шт.

12

4183-4615A

PIPE

SERIAL: 3

2шт.

13

4124-4042

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

14

S0558253

BOLT M10X1.5X35

desc: BOULON A 6 PANS

4шт.

15

2181-1702D2

ELBOW;S PFO1/2-PF1/2

desc: COUDE EN S

2шт.

16

2184-1026D61

HOSE PF1/2-735L

desc: TUYAU FLEXIBLE

2шт.

16

2184-1054D51

HOSE PF1/2-700L

SERIAL: 51

1шт.

17

4195-4526

BRACKET

SERIAL: 1-10

1шт.

17

4195-4526A

BRACKET

SERIAL: 11

1шт.

18

S0715053

BOLT M12X1.25X25

desc: BOULON A 6 PANS

4шт.

19

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

4шт.

20

2181-2419D3

ELBOW PFO1/2-PF1/2

SERIAL: 1-70

2шт.

20

2181-1702D1

ELBOW PFO3/4"-PF3/4"

SERIAL: 71

2шт.

21

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

22

4237-1064A

BLOCK;PORT

desc: BLOC

1шт.

23

2181-1950D5

PF3/4

desc: BOUCHON

2шт.

24

S8000241

O-RING PF3/4"

desc: JOINT TORIQUE

4шт.

27

4195-3242

BRACKET

SERIAL: 1-2

1шт.

27

4195-3242A

BRACKET

SERIAL: 3

1шт.

28

2184-1071D38

HOSE PF1/2-580L

desc: TUYAU FLEXIBLE

1шт.

29

2184-1054D52

HOSE PF1/2-650L

desc: TUYAU FLEXIBLE

1шт.

30

4237-1063A

BLOCK

SERIAL: 51

1шт.
