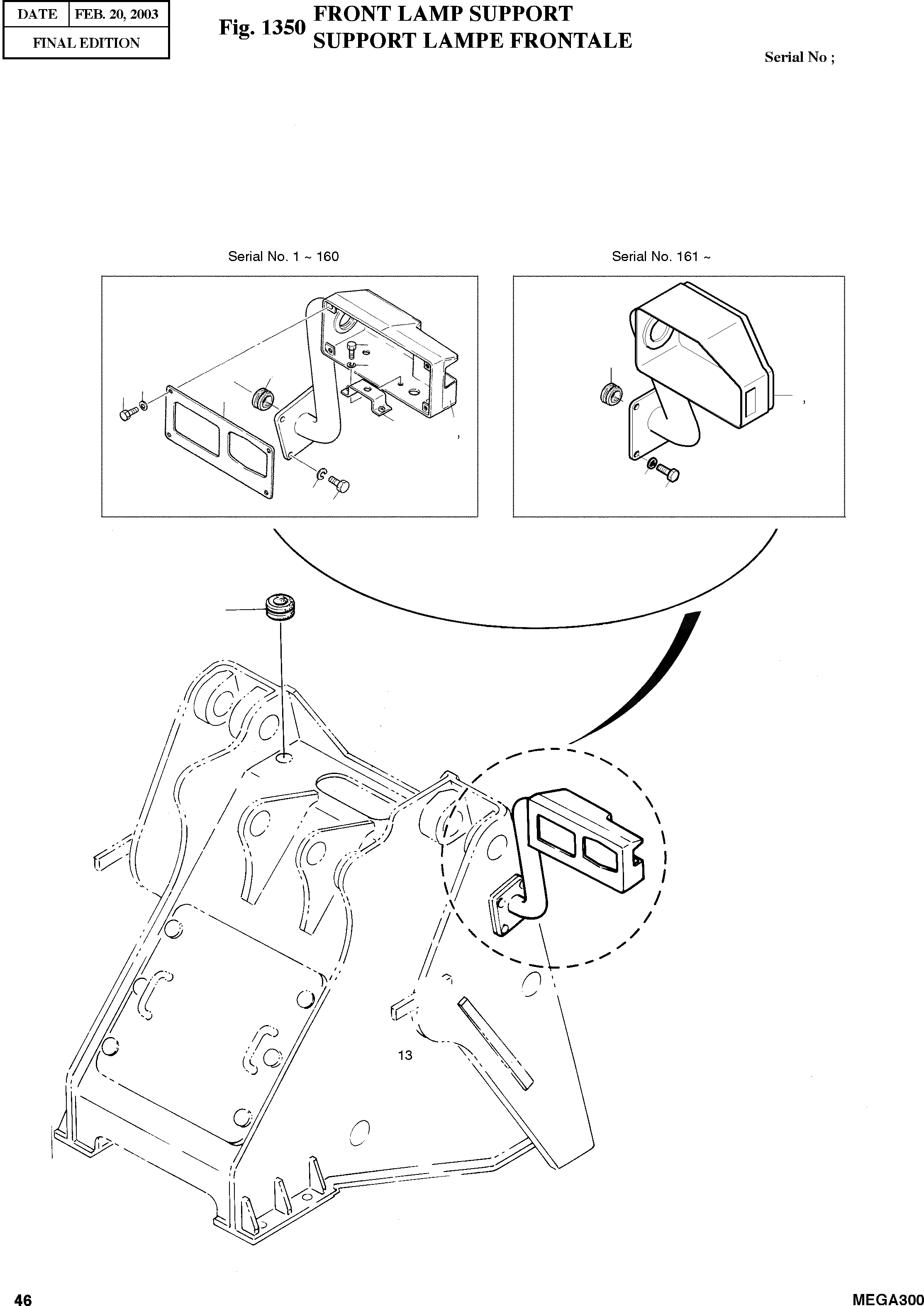

Запчасти Doosan Daewoo FRONT LAMP SUPPORT BODY PARTS

-

4195-4418

FRONT LAMP SUPPORT ASS'Y

SC: D

-2шт.

1

4195-4416

SUPPORT(RH)

SERIAL: 1-67

1шт.

1

4195-4416A

SUPPORT(RH)

SERIAL: 68

1шт.

1

4197-1099

SUPPORT(RH)

ICA: Y

1шт.

1

4197-1099A

SUPPORT(RH)

SERIAL: 150

1шт.

2

4195-4417

SUPPORT(LH)

SERIAL: 1-67

1шт.

2

4195-4417A

SUPPORT(LH)

SERIAL: 68

1шт.

2

4197-1100

SUPPORT(LH)

ICA: Y

1шт.

2

4197-1100A

SUPPORT(LH)

SERIAL: 150

1шт.

3

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

8шт.

4

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

8шт.

5

4160-4015A

GROMMET;RUBBER

desc: ETOUPE

4шт.

7

4191-2738

PLATE

desc: PLAQUE

2шт.

7

4191-2738A

PLATE

desc: PLAQUE

2шт.

7

4191-2738B

PLATE

SERIAL: 1-47

2шт.

7

4191-2738C

PLATE

SERIAL: 48-160

2шт.

8

S3458943

SCREW M6X1.0X10

SERIAL: 1-160

8шт.

8

S0504353

SCREW M6X1.0X10

SERIAL: 1-160

8шт.

9

S5102303

WASHER M6

SERIAL: 1-160

8шт.

10

4195-3104

BRACKET

SERIAL: 1-160

2шт.

11

S0508653

BOLT M8X1.25X16

SERIAL: 1-160

4шт.

12

S5102503

WASHER;SPRING M8

SERIAL: 1-160

4шт.
