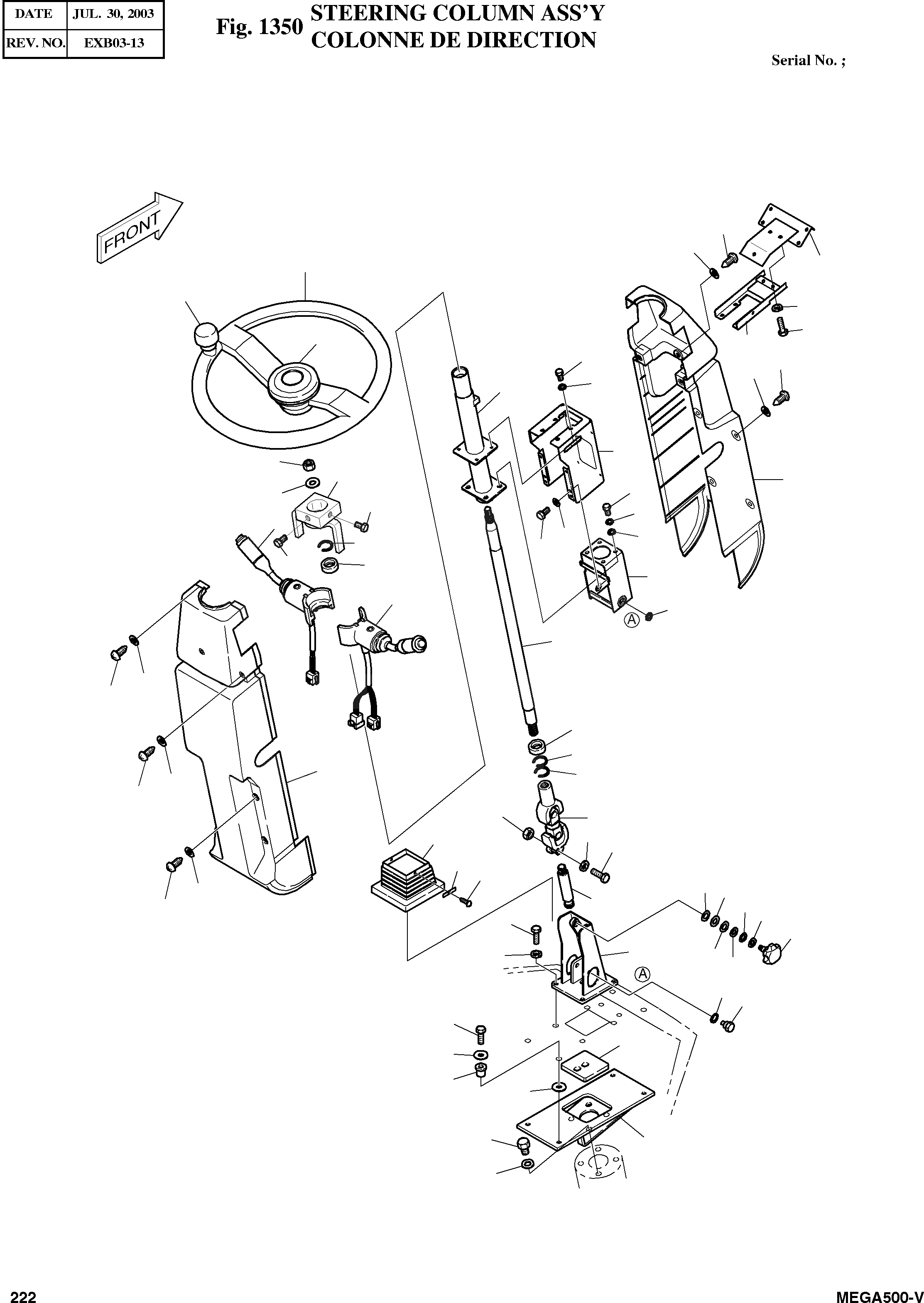

Запчасти Doosan Daewoo STEERING COLUMN ASSY BODY PARTS

-

303-00001C

STEERING COLUMN ASS'Y

SC: D

-2шт.

1

4197-2430C

BRACKET;BASE

desc: SUPPORT

1шт.

2

303-00002B

COLUMN

desc: PILIER

1шт.

3

354-00005A

SHAFT

desc: ARBRE

1шт.

4

4197-2431B

BRACKET;COLUMN

desc: SUPPORT

1шт.

5

4313-9003

JOINT;FLEX

desc: RACCORD

1шт.

6

4305-1017B

SHAFT

desc: ARBRE

1шт.

7

4161-2492B

FOAM

desc: EPONGE

1шт.

8

154-00012

WHEEL;STEERING

desc: VOLANT

1шт.

9

4142-1160C

STRIKER

desc: FRAPPER

1шт.

10

195-00886

BRACKET

desc: SUPPORT

1шт.

11

4161-9036

MOUNT;FLEX

desc: ENSEMBLE SUPPORT DE MONTAGE

4шт.

12

2120-2166D29

BOLT M10X1.5X40

desc: BOULON A 6 PANS

4шт.

13

S5010613

WASHER;PLAIN M10

desc: RONDELLE

8шт.

14

S4012733

NUT M12

desc: ECROU

1шт.

15

S5010313

WASHER;PLAIN M6

desc: RONDELLE

2шт.

16

2114-1058D46

WASHER

desc: RONDELLE

5шт.

17

S6153040

BEARING;NEEDLE

desc: PALIER

1шт.

18

S6510370

RING;RETAINER(C-TYPE)

desc: BAGUE

1шт.

19

S6001240

BEARING;BALL

desc: PALIER

1шт.

20

S6510420

RING;RETAINER(C-TYPE)

desc: ROND-TYPE C

1шт.

21

S0504353

BOLT M6X1.0X10

desc: BOULON A 6 PANS

4шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

8шт.

23

S0511753

BOLT M10X1.5X18

desc: BOULON A 6 PANS

8шт.

24

4549-6072

SWITCH;SELECTOR(L.H)

desc: SELECTEUR

1шт.

25

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

4шт.

26

4123-2424A

PIN

desc: BROCHE

2шт.

27

S5102903

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

2шт.

28

S0509253

BOLT M8X1.25X30

desc: BOULON A 6 PANS

1шт.

29

S6500200

RING;RETAINER(C-TYPE)

desc: BAGUE D'ETANCHEITE

1шт.

30

S4012533

NUT M8

desc: ECROU

1шт.

31

4197-2433B

BRACKET;COVER

desc: SUPPORT

1шт.

32

4627-1652A

COVER;FRONT 3T

desc: COUVERCLE

1шт.

33

4627-1653

COVER;REAR 3T

desc: COUVERCLE

1шт.

34

4197-2434C

BRACKET

desc: SUPPORT

1шт.

35

S0508853

BOLT M8X20

desc: BOULON A 6 PANS

4шт.

36

S5010503

WASHER;PLAIN M8

desc: RONDELLE PLATE

5шт.

37

2120-2166D8

SCREW M5X14

desc: BOULON A 6 PANS

11шт.

38

2120-2166D33

SCREW M4X0.7X10

desc: VIS

2шт.

39

2114-1898D4

WASHER;PLAIN M5

desc: RONDELLE

11шт.

40

4132-1145

KNOB

desc: BOSSE

1шт.

41

S5130903

WASHER;CONICAL SPRING M16

desc: RONDELLE ELASTIQUE M16

1шт.

42

S5010913

WASHER;PLAIN M16

desc: RONDELLE PLATE

2шт.

43

4161-2458

STOPPER

desc: ARRET

2шт.

44

4160-1339A

BOOT

desc: GAINE DE PROTECTION

1шт.

45

2114-1898D13

WASHER M4

desc: RONDELLE PLATE

2шт.

46

4114-1996

WASHER PL1.6

desc: RONDELLE

2шт.

47

S5021213

WASHER M22

desc: RONDELLE

2шт.

48

2114-1059D196

SHIM PL1.0

desc: CALE

2шт.

49

S3450823

SCREW M5X0.8X10

desc: VIS

2шт.

50

2114-1898D16

WASHER

desc: RONDELLE

8шт.

51

195-00803

BRACKET

desc: SUPPORT

1шт.

52

2114-1898D2

WASHER M8

desc: RONDELLE

2шт.

53

2120-2166D25

BOLT M10X16

desc: BOULON A 6 PANS

2шт.

54

132-00008

KNOB;STEERING WHEEL

desc: BOUTON

1шт.

55

160-00009

CAP;STEERING WHEEL

desc: BOUCHON

1шт.

56

4549-9418

SWITCH;COLUMN(R.H)

desc: INTERRUPTEUR

1шт.
