Запчасти Doosan Daewoo GREASE PIPING BODY PARTS

-

400-00101A

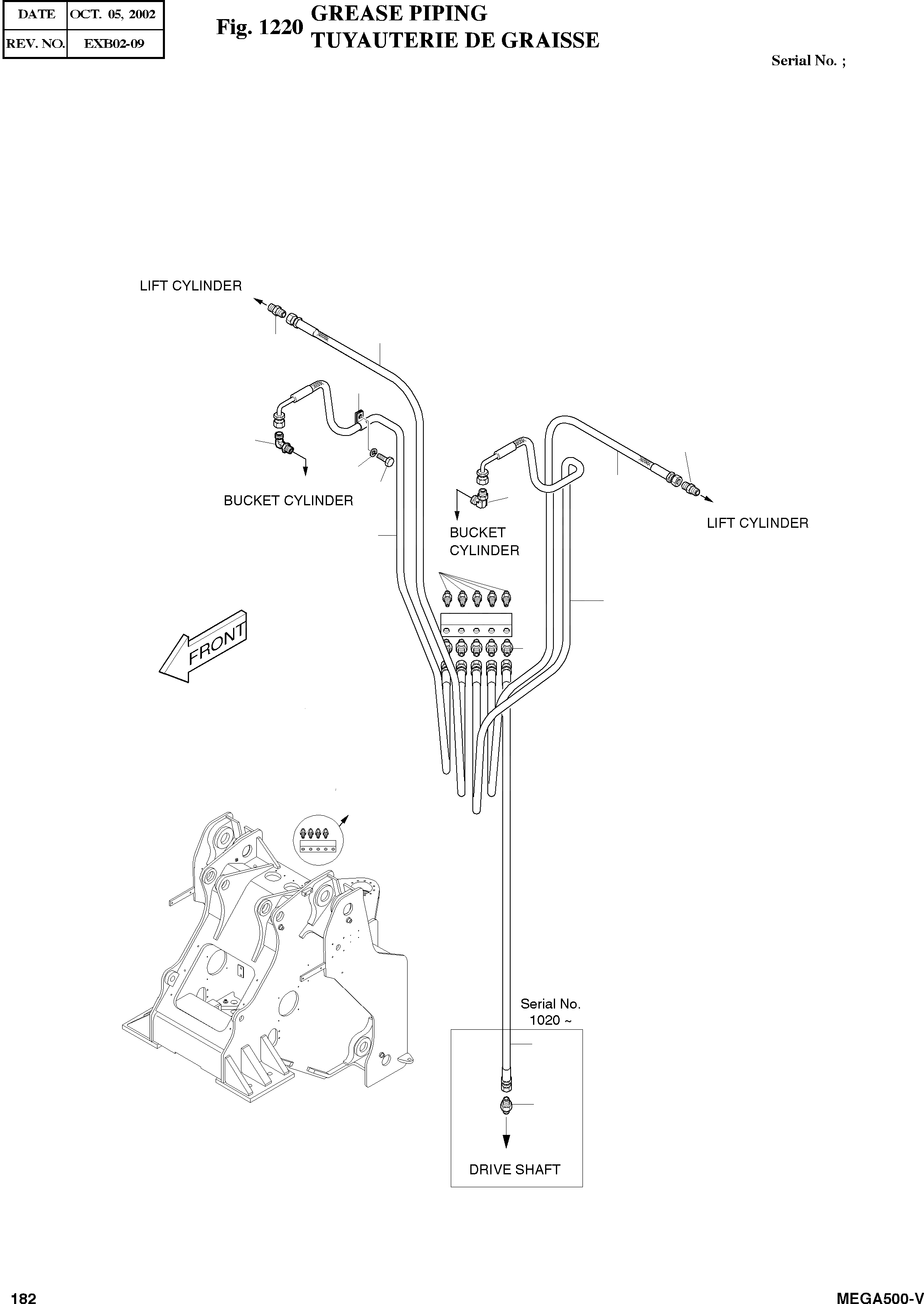

GREASE PIPING

SC: D

-2шт.

1

S6710041

NIPPLE PT1/8

SERIAL: 1001-1019

4шт.

1

S6710041

NIPPLE PT1/8

SERIAL: 1020

5шт.

3

2184-1045D148

HOSE PF1/4X1800L

desc: TUYAU FLEXIBLE

1шт.

4

2184-1060D118

HOSE PF1/4X2050L

desc: TUYAU FLEXIBLE

2шт.

5

2184-1045D221

HOSE PF1/4X1650L

desc: TUYAU FLEXIBLE

1шт.

6

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE M10

2шт.

7

2181-1110D30

ADAPTER PT1/8XPF1/4

SERIAL: 1001-1019

6шт.

7

2181-1110D30

ADAPTER PT1/8XPF1/4

SERIAL: 1020

8шт.

8

2124-1353D3

CLIP

desc: ATTACHE

2шт.

9

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

2шт.

10

2181-1111D11

ELBOW PT1/8XPF1/4

desc: COUDE

2шт.

16

2184-1045D176

HOSE-1300L

SERIAL: 1020

1шт.
