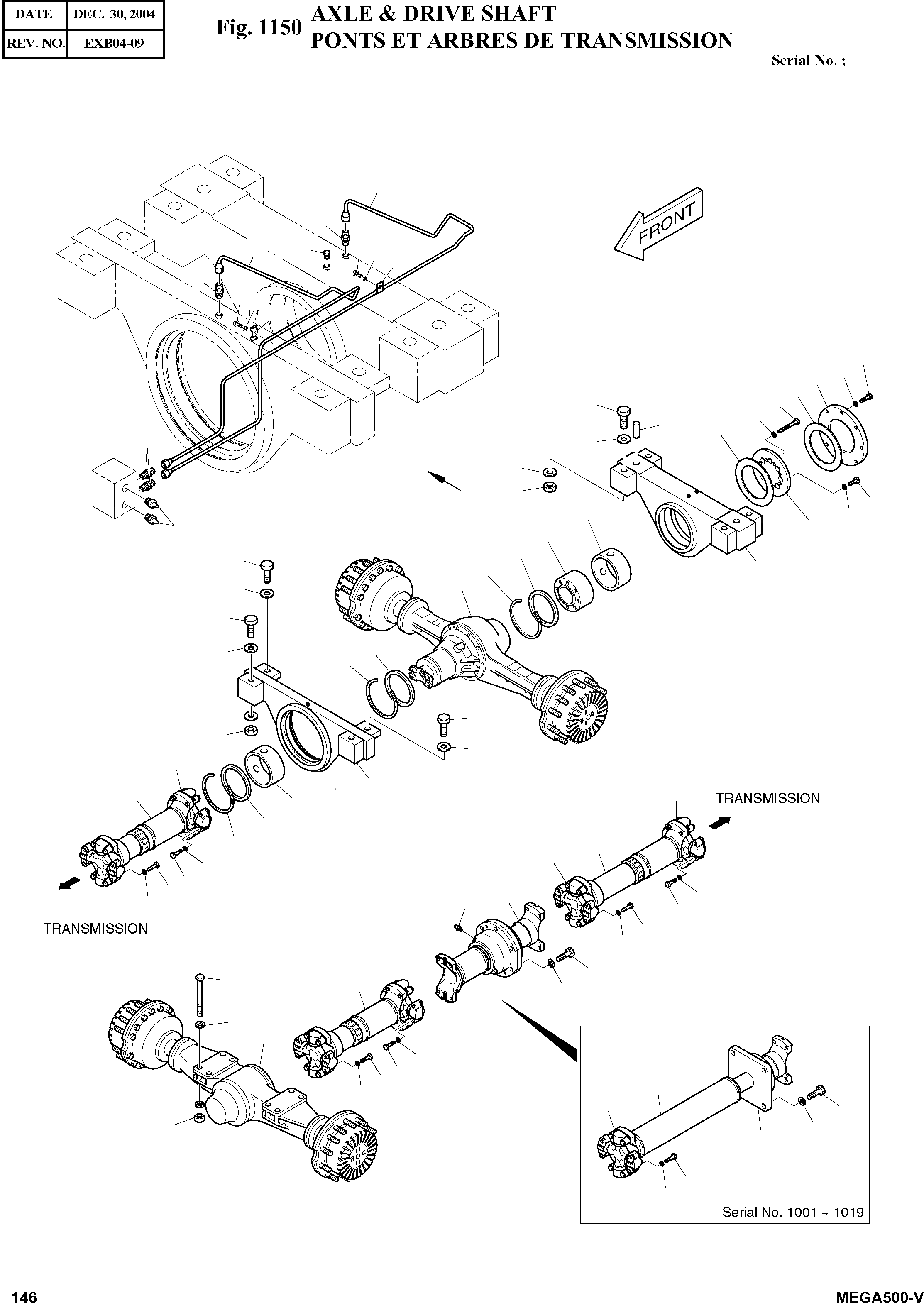

Запчасти Doosan Daewoo AXLE & DRIVE SHAFT BODY PARTS

-

211-00001

AXLE & DRIVE SHAFT ASS'Y

SC: D

-2шт.

1

211-00003

AXLE;FRONT

desc: AXE

1шт.

2

211-00005

AXLE;REAR

desc: AXE

1шт.

3

112-00004

DRIVE SHAFT;FRONT

SERIAL: 1001-1019

1шт.

3

112-00061

DRIVE SHAFT;FRONT

SERIAL: 1020

1шт.

3A

1100-9C

JOINT;UNIVERSAL

desc: . UNIVERSEL JOINT

2шт.

3B

700-UCF218

BEARING;FLANGE

SERIAL: 1001-1019

1шт.

4

112-00005

DRIVE SHAFT;CENTER

desc: ARBRE

1шт.

4A

1100-9C

JOINT;UNIVERSAL

desc: . UNIVERSEL JOINT

2шт.

5

112-00006

DRIVE SHAFT;REAR

desc: ARBRE

1шт.

5A

1100-9C

JOINT;UNIVERSAL

desc: . UNIVERSEL JOINT

2шт.

6

195-00007A

SUPPORT SUB ASS'Y;FRONT

desc: SUPPORT

1шт.

6A

408-00001

BUSHING

desc: . COUSSINET

1шт.

6B

115-00004

RING;RETAINING

desc: . BAGUE

1шт.

6C

2181-1919D10

ADAPTER

desc: . RACCORD ADAPTATEUR

1шт.

7

195-00008A

SUPPORT SUB ASS'Y;REAR

desc: SUPPORT

1шт.

7A

408-00002

BUSHING

desc: . COUSSINET

1шт.

7B

171-00004

SHAFT;PIVOT

desc: . ARBRE

1шт.

7C

114-00053

WASHER;THRUST

desc: . RONDELLE

1шт.

7D

355-00004

DISC

desc: . DISQUE

1шт.

7E

S5011161

WASHER;PLAIN M20

desc: . RONDELLE

10шт.

7F

S2227761

BOLT;SOCKET M20X2.5X55

desc: . BOULON

10шт.

7G

2181-1919D10

ADAPTER

desc: . RACCORD ADAPTATEUR

1шт.

7H

2181-1116D2

PLUG

desc: . BOUCHON

1шт.

10

115-00005

RING;RETAINING

desc: BAGUE

1шт.

11

180-00075

SEAL;OIL ©Є360

desc: JOINT

2шт.

13

114-00053

WASHER;THRUST

desc: RONDELLE

1шт.

14

180-00076

SEAL;OIL ©Є280

desc: JOINT

1шт.

16

621-00114

COVER

desc: COUVERCLE

1шт.

17

S5102901

WASHER;SPRING M16

SERIAL: 1001-1009

16шт.

17

S5102903

WASHER;SPRING M16

SERIAL: 1010

16шт.

18

S0765561

BOLT M16X1.5X65

SERIAL: 1001-1009

16шт.

18

S0765566

BOLT M16X1.5X65

SERIAL: 1010

16шт.

19

S5103102

WASHER;SPRING M20

SERIAL: 1001-1011

10шт.

19

S5103103

WASHER;SPRING M20

SERIAL: 1012

10шт.

20

120-00049A

BOLT M20X2.5X175

desc: BOULON A 6 PANS

10шт.

21

120-00047A

BOLT M36X3.0X180

desc: BOULON A 6 PANS

8шт.

22

114-00056

WASHER;HARDEND

SERIAL: 1001-1011

30шт.

22

114-00056A

WASHER;HARDEND

SERIAL: 1012

30шт.

23

S4033731

NUT M36X3.0

desc: ECROU

14шт.

24

120-00048A

BOLT M36X3.0X250

desc: BOULON A 6 PANS

6шт.

25

4123-2274A

PIN ©Є40X65L

desc: GOUJON

2шт.

28

2181-1919D9

ADAPTER

desc: RACCORD

2шт.

31

120-00118

BOLT M36X3.0X97

desc: BOULON A 6 PANS

2шт.

33

140-00045A

PIPE;REAR

desc: CONDUITE

1шт.

34

140-00046A

PIPE;FRONT

desc: CONDUITE

1шт.

37

4124-4047

CLIP;PIPE

desc: CLIP DE FIXATION

1шт.

38

2124-1248

CLIP;PIPE

desc: CLIP DE FIXATION

1шт.

39

S0508753

BOLT M8X1.25X18

desc: BOULON A 6 PANS

2шт.

40

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

2шт.

42

4114-1686

WASHER;SPRING

desc: RONDELLE ELASTIQUE M12

20шт.

43

120-00052

BOLT

desc: BOULON A 6 PANS

20шт.

44

S0570161

BOLT M20X2.5X65

SERIAL: 1001-1009

4шт.

44

S0570166

BOLT M20X2.5X65

SERIAL: 1010-1019

4шт.

44

S0570166

BOLT M20X2.5X65

SERIAL: 1020

6шт.

45

S5103101

WASHER;SPRING M20

SERIAL: 1001-1009

4шт.

45

S5103103

WASHER;SPRING M20

SERIAL: 1010-1019

4шт.

45

S5103103

WASHER;SPRING M20

SERIAL: 1020

6шт.

46

115-00006

RING;RETAINING

desc: BAGUE

1шт.

47

S6710041

NIPPLE;GREASE PT1/8

desc: GRAISSEUR

2шт.

48

112-00069

DRIVE SHAFT;FRONT

SERIAL: 1020

1шт.

48A

S6710041

NIPPLE

desc: . GRAISSEUR

1шт.
