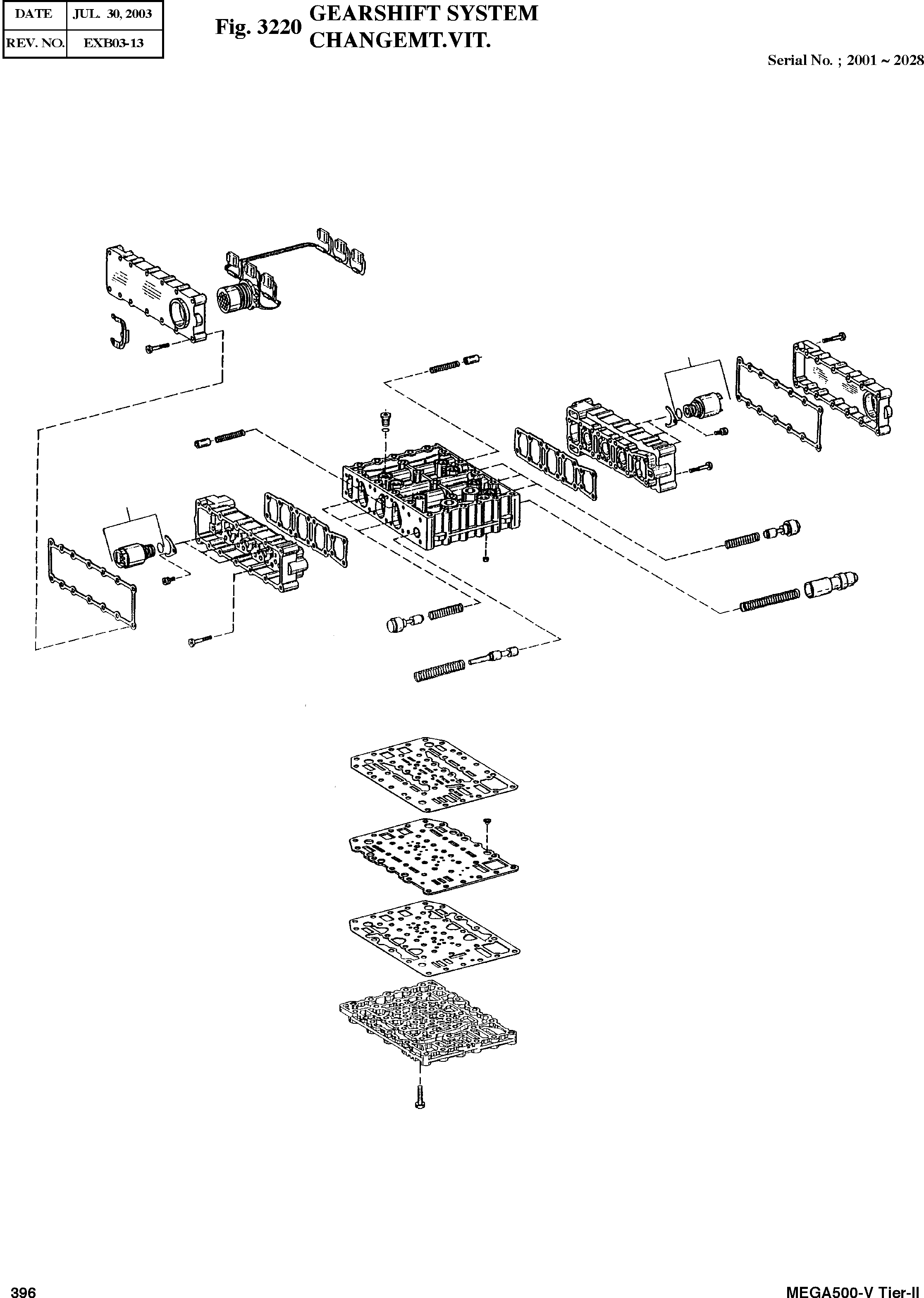

Запчасти Doosan Daewoo GEARSHIFT SYSTEM HYDRAULIC PARTS

10

4656 306 112

BLOCK;VALVE

desc: BLOC-VALVES

1шт.

12

0636 302 053

PLUG

desc: BOUCHON

8шт.

13

0634 303 280

O-RING

desc: JOINT TORIQUE

8шт.

20

0730 361 070

ORIFICE

desc: AJUTAGE

6шт.

30

4656 306 095

PISTON

desc: PISTON

6шт.

40

0732 042 538

SPRING;COMPR

desc: RESSORT PRESS.

6шт.

50

4656 306 013

PISTON

desc: PISTON

6шт.

60

0732 042 539

SPRING;COMPR

desc: RESSORT PRESS.

6шт.

70

4656 306 074

PISTON

desc: PISTON

1шт.

80

0732 042 631

SPRING;COMPR

desc: RESSORT PRESS.

1шт.

90

4656 306 123

PISTON;CONTROL

desc: PISTON REGLAGE

1шт.

110

0732 042 719

SPRING;COMPR

desc: RESSORT PRESS.

1шт.

150

4656 306 115

GASKET

desc: JOINT

1шт.

160

4656 306 116

HOUSING

desc: CARTER NEZ PONT

1шт.

170

0736 101 257

SCREW

desc: VIS

18шт.

180

0501 314 770

REGULATOR;PRESS

desc: REGUL. PRESSION

3шт.

190

1043 326 045

PLATE;FIXING

desc: TOLE SUPPORT

3шт.

200

0736 101 094

SCREW

desc: VIS

3шт.

210

4656 306 115

GASKET

desc: JOINT

1шт.

220

4656 306 116

HOUSING

desc: CARTER

1шт.

230

0736 101 257

SCREW

desc: VIS

18шт.

240

0501 314 770

REGULATOR;PRESS

desc: REGUL. PRESSION

3шт.

250

1043 326 045

PLATE;FIXING

desc: TOLE SUPPORT

3шт.

260

0736 101 094

SCREW

desc: VIS

3шт.

270

4656 206 006

HARNESS;WIRING

desc: FAISCEAU CABLES

1шт.

280

4656 306 064

GASKET

desc: JOINT

1шт.

290

4656 306 054

COVER

desc: COUVERCLE

1шт.

300

0736 101 257

SCREW

desc: VIS

14шт.

310

4656 306 064

GASKET

desc: JOINT

1шт.

320

4656 306 055

COVER

desc: COUVERCLE

1шт.

330

1058 327 026

CLAMP;RETAINING

desc: COLLIER

1шт.

340

0736 101 257

SCREW

desc: VIS

14шт.

350

4656 306 125

GASKET

desc: JOINT

1шт.

360

4656 306 126

SHEET;INTERM

desc: FEUILLE

1шт.

362

0501 316 715

SCREEN

desc: TAMIS

6шт.

370

4656 306 127

GASKET

desc: JOINT

1шт.

380

4656 306 128

PLATE;DUCT

desc: PLAQUE CANIVEAU

1шт.

390

0736 101 259

SCREW

desc: VIS

18шт.
