Запчасти Doosan Daewoo PILOT PIPING(2 LEVER-3 SPOOL)-OPT BODY PARTS

-

400-01270

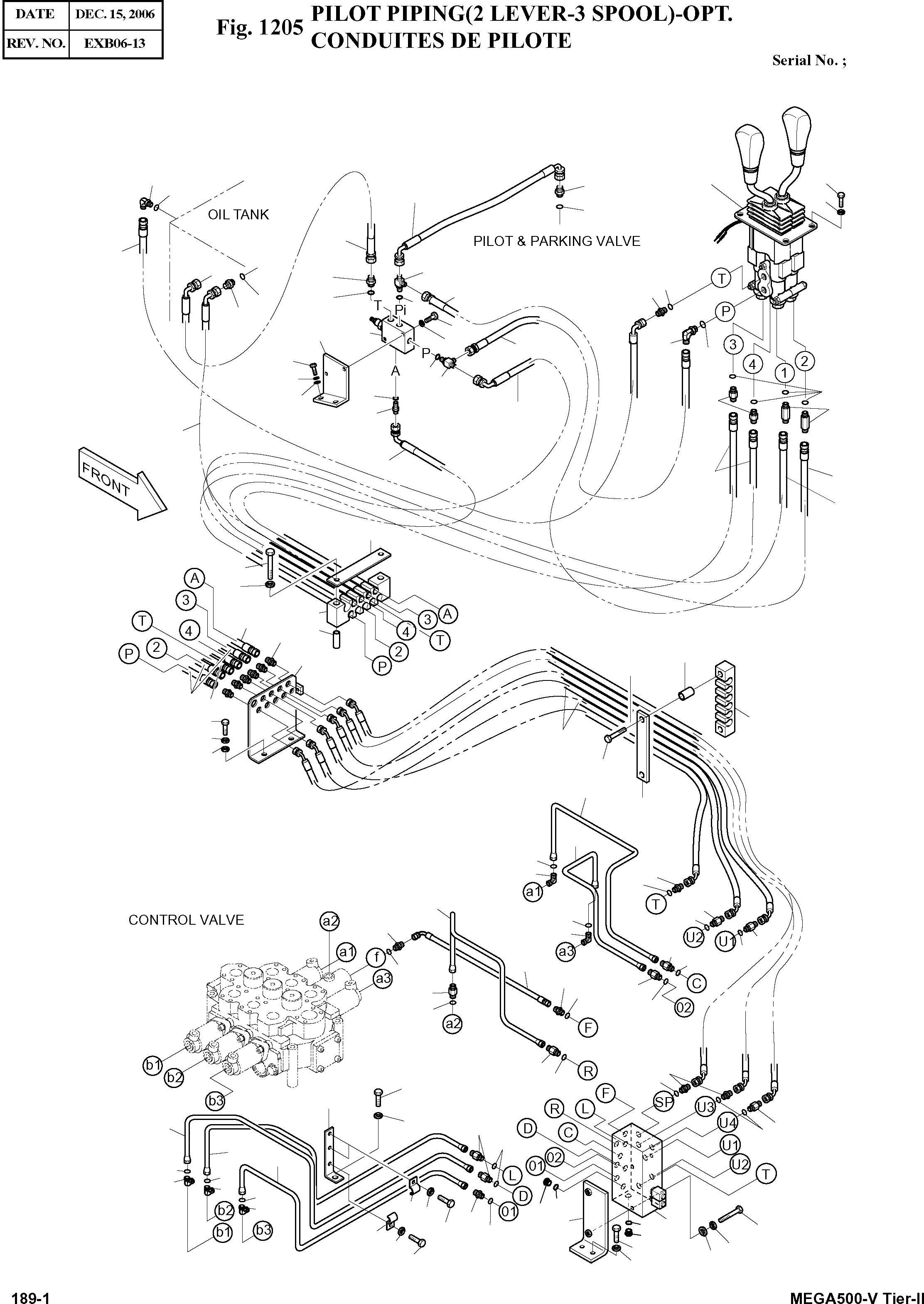

PILOT PIPING(2-LEVER 3 SPOOL)

SC: D

-2шт.

1

420-00361A

VALVE;REMOCON

SERIAL: 2001-2079

1шт.

1

420-00361C

VALVE;REMOCON

SERIAL: 2080

1шт.

2

S2204866

BOLT M6X1.0X20

desc: BOULON A 6 PANS

4шт.

3

S5110303

WASHER M6

desc: RONDELLE

4шт.

4

2181-1126D49

ADAPTER UNF9/16-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

5

2181-1126D134

ADAPTER;LONG UNF9/16-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

6

S0514953

BOLT M12X1.75X22

desc: BOULON A 6 PANS

2шт.

7

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

2шт.

8

S5010713

WASHER M12

desc: RONDELLE ELASTIQUE

2шт.

9

191-00077

PLATE

desc: PLAQUE

1шт.

10

2181-2718

ADAPTER 2-PF3/8

desc: RACCORD ADAPTATEUR

6шт.

11

140-00065A

PIPE;BUCKET DUMP(B1)

SERIAL: 2001-2034

1шт.

11

140-00065B

PIPE;BUCKET DUMP(B1)

SERIAL: 2035

1шт.

12

140-00062A

PIPE;BOOM DOWN(B2)

SERIAL: 2001-2034

1шт.

12

140-00062B

PIPE;BOOM DOWN(B2)

SERIAL: 2035

1шт.

13

S8040061

O-RING UNF 9/16

desc: JOINT TORIQUE

5шт.

15

2184-1046D126

HOSE;BM FLOAT(F) PF1/4

desc: TUYAU FLEXIBLE

1шт.

16

140-00066A

PIPE;BOOM UP(A2)

SERIAL: 2001-2034

1шт.

16

140-00066B

PIPE;BOOM UP(A2)

SERIAL: 2035

1шт.

17

140-00064A

PIPE;BUCKET CROWD(A1)

SERIAL: 2001-2034

1шт.

17

140-00064B

PIPE;BUCKET CROWD(A1)

SERIAL: 2035

1шт.

18

S8000141

O-RING PF3/82

desc: JOINT TORIQUE

24шт.

19

2181-1916D11

ADAPTER;LONG 3/8PFO-M16X1.5

desc: RACCORD ADAPTATEUR

3шт.

20

2181-2185D2

ELBOW 3/8PFO-M16X1.5

desc: COUDE

5шт.

21

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

11шт.

22

S0556353

BOLT M8X1.25X50

desc: BOULON A 6 PANS

4шт.

23

4124-1538

PLATE

desc: PLAQUE

1шт.

24

4124-1537A

CLAMP;RUBBER

desc: COLLIER

1шт.

25

4114-1718

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

26

2181-1126D27

ADAPTER;LONG PF3/8-PFO3/8

desc: RACCORD ADAPTATEUR

3шт.

28

2181-1916D10

ADAPTER;S 3/8PFO-M16X1.5

desc: RACCORD ADAPTATEUR

4шт.

29

S0557053

BOLT M8X1.25X85

desc: BOULON A 6 PANS

2шт.

30

2184-1036D125

HOSE 2-PF3/8

desc: JOINT TORIQUE

1шт.

31

2124-1353D1

CLIP

desc: CLIP

3шт.

32

S0508453

BOLT M8X1.25X12

desc: BOULON A 6 PANS

3шт.

33

191-00026

PLATE

desc: PLAQUE

1шт.

34

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

5шт.

35

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

1шт.

36

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

4шт.

37

2181-1126D7

ADAPTER;S PF3/8-PFO3/8

desc: RACCORD ADAPTATEUR

5шт.

38

191-00020

BRACKET

desc: SUPPORT

1шт.

39

4420-9435A

VALVE;PILOT

desc: VANNE

1шт.

40

2181-1702D5

ELBOW PF3/8-PFO3/8

desc: COUDE

1шт.

41

420-00081

VALVE;PILOT SEQUENCE

desc: VANNE PILOTE

1шт.

42

2184-1128D27

HOSE PF3/8

desc: TUYAU FLEXIBLE

6шт.

43

2181-1126D85

ADAPTER PF3/8-PFO1/4

desc: RACCORD ADAPTATEUR

1шт.

44

S8000111

O-RING PF1/4

desc: JOINT TORIQUE

4шт.

45

2184-1026D105

HOSE 2-PF3/8

desc: TUYAU FLEXIBLE

3шт.

46

2184-1061D193

HOSE 2-PF3/8

desc: TUYAU FLEXIBLE

1шт.

47

2184-1036D90

HOSE 2-PF3/8

desc: TUYAU FLEXIBLE

1шт.

48

2181-1951D20

TEE 2-PF3/8-PFO1/4

desc: TE

2шт.

49

S0556853

BOLT M8X1.25X75

desc: BOULON A 6 PANS

2шт.

50

124-00016

CLAMP;RUBBER

desc: COLLIER

1шт.

51

195-00206A

PLATE

desc: PLAQUE

1шт.

52

4114-1717

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

53

S5010513

WASHER M8

desc: RONDELLE ELASTIQUE

2шт.

55

2181-1126D36

ADAPTER PF1/4-PFO3/8

desc: RACCORD ADAPTATEUR

1шт.

56

181-00144D41

ADAPTER;ORIFICE PF1/4-PFO3/8

desc: RACCORD ADAPTATEUR

1шт.

58

2184-1036D268

HOSE 2-PF3/8

desc: TUYAU FLEXIBLE

1шт.

59

2184-1026D148

HOSE 2-PF3/8

desc: TUYAU FLEXIBLE

1шт.

60

2184-1026D148

HOSE 2-PF3/8

desc: TUYAU FLEXIBLE

1шт.

61

2181-1126D8

ADAPTER UNF3/4-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

62

S8040081

O-RING UNF3/4

desc: JOINT TORIQUE

1шт.

63

2181-1702D26

ELBOW UNFO9/16-PF3/8

desc: COUDE

1шт.

64

2184-1036D268

HOSE 2-PF3/8

desc: TUYAU FLEXIBLE

1шт.

65

195-02451

BRACKET

desc: SUPPORT

1шт.

66

S5010613

WASHER;PLAIN M10

desc: RONDELLE ELASTIQUE

2шт.

67

2181-1126D85

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

68

140-00060A

PIPE(OPTION B3)

desc: CONDUITE

1шт.

69

140-00061A

PIPE(OPTION A3)

desc: CONDUITE

1шт.

70

2181-1950D2

PLUG PFO3/8

desc: BOUCHON

2шт.

71

2184-1036D90

HOSE 2-PF 3/8

desc: TUYAU FLEXIBLE

1шт.
