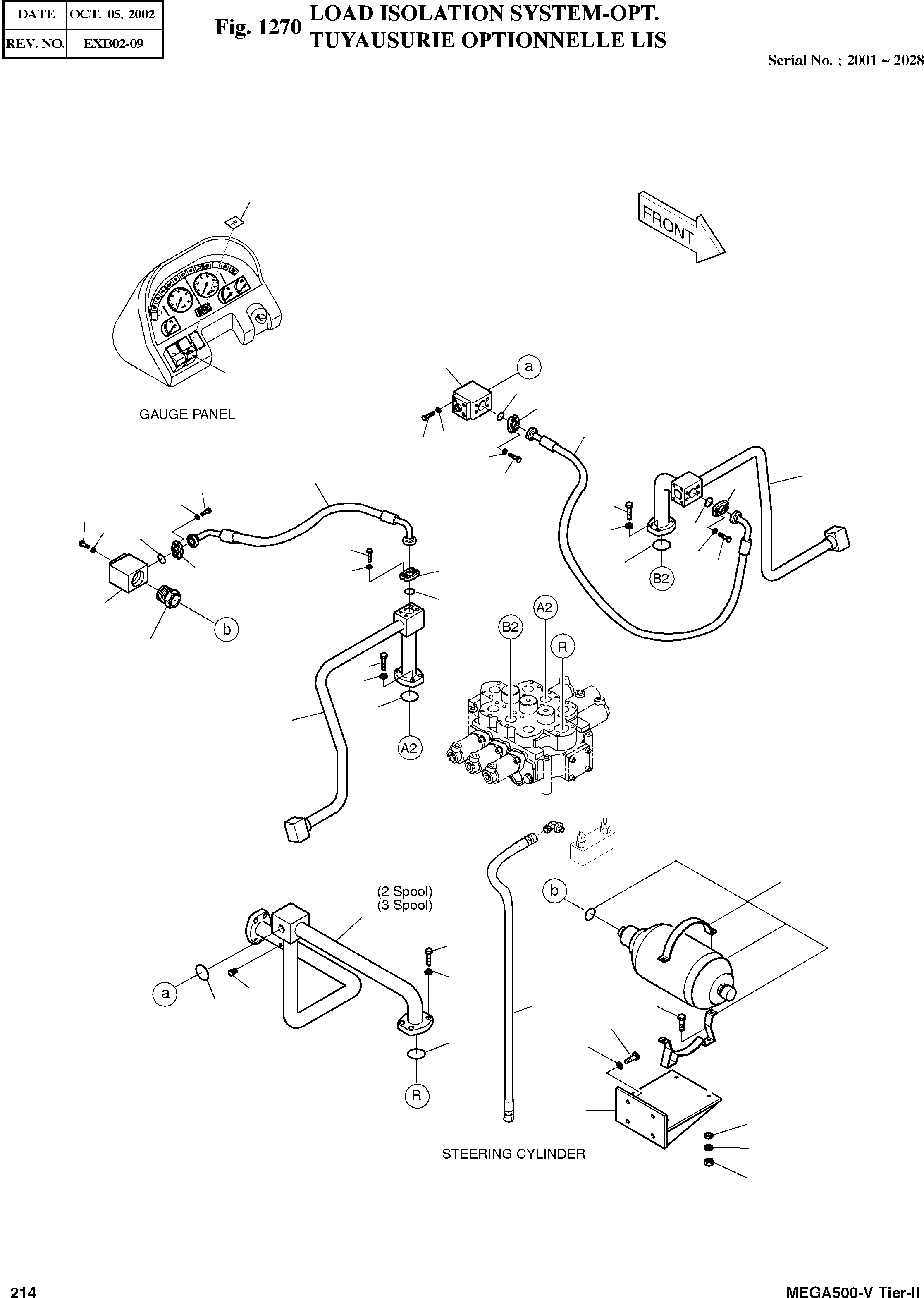

Запчасти Doosan Daewoo LOAD ISOLATION SYSTEM-OPT BODY PARTS

-

400-00170

LIS PIPING

SERIAL: 2001-2028

-2шт.

1

4420-9446C

VALVE;SOLENOID

desc: VANNE PILOTE

2шт.

3

4195-4873

SUPPORT

ICA: I

1шт.

4

193-00083

PIPE;RETURN 2-SPOOL(STD.)

desc: CONDUITE

1шт.

5

193-00084A

PIPE;UP('A2')

desc: CONDUITE

1шт.

6

193-00085A

PIPE;DOWN('B2')

desc: CONDUITE

1шт.

7

2184-1082D17

HOSE 1ЎИSAEX905L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1124D199

HOSE 1ЎИSAEX1200L

desc: TUYAU FLEXIBLE

1шт.

9

4181-2689

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

10

S5010513

WASHER;PLAIN M8

desc: RONDELLE M8

4шт.

11

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

4шт.

12

S4012533

NUT M8X1.25

desc: ECROU

4шт.

13

2181-9078

FLANGE;HALF 1ЎИ SAE

desc: FLASQUE EN DEUX PARTIES

8шт.

14

2180-1026D19

O-RING

desc: JOINT TORIQUE

6шт.

15

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

16шт.

16

S5110603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

24шт.

17

2181-2047

PLUG

desc: BOUCHON

1шт.

18

2180-1026D27

O-RING

desc: JOINT TORIQUE

1шт.

19

S2214266

BOLT;SOCKET M10X1.5X130

desc: BOULON 6 PANS CREUX

8шт.

20

S2215466

BOLT;SOCKET M12X1.75X40

desc: BOULON A 6 PANS CREUX

8шт.

21

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

4шт.

23

DS2055634

HOSE PF3/4-1020L

desc: TUYAU FLEXIBLE

1шт.

24

2180-1026D24

O-RING

desc: JOINT TORIQUE

2шт.

26

S5110703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

12шт.

27

S0515153

BOLT M12X1.75X28

desc: BOULON A 6 PANS

4шт.

28

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

4шт.

29

4460-9038

ACCUMULATOR ASS'Y

ICA: I

1шт.

32

193-00086

PIPE;RETURN 3-SPOOL(OPT.)

desc: CONDUITE

1шт.

33

2549-9096

SWITCH;TOGGLE

desc: INTERRUPTEUR

1шт.

34

2190-2036D3

INSERT;SWITCH

desc: INSERTION

1шт.
