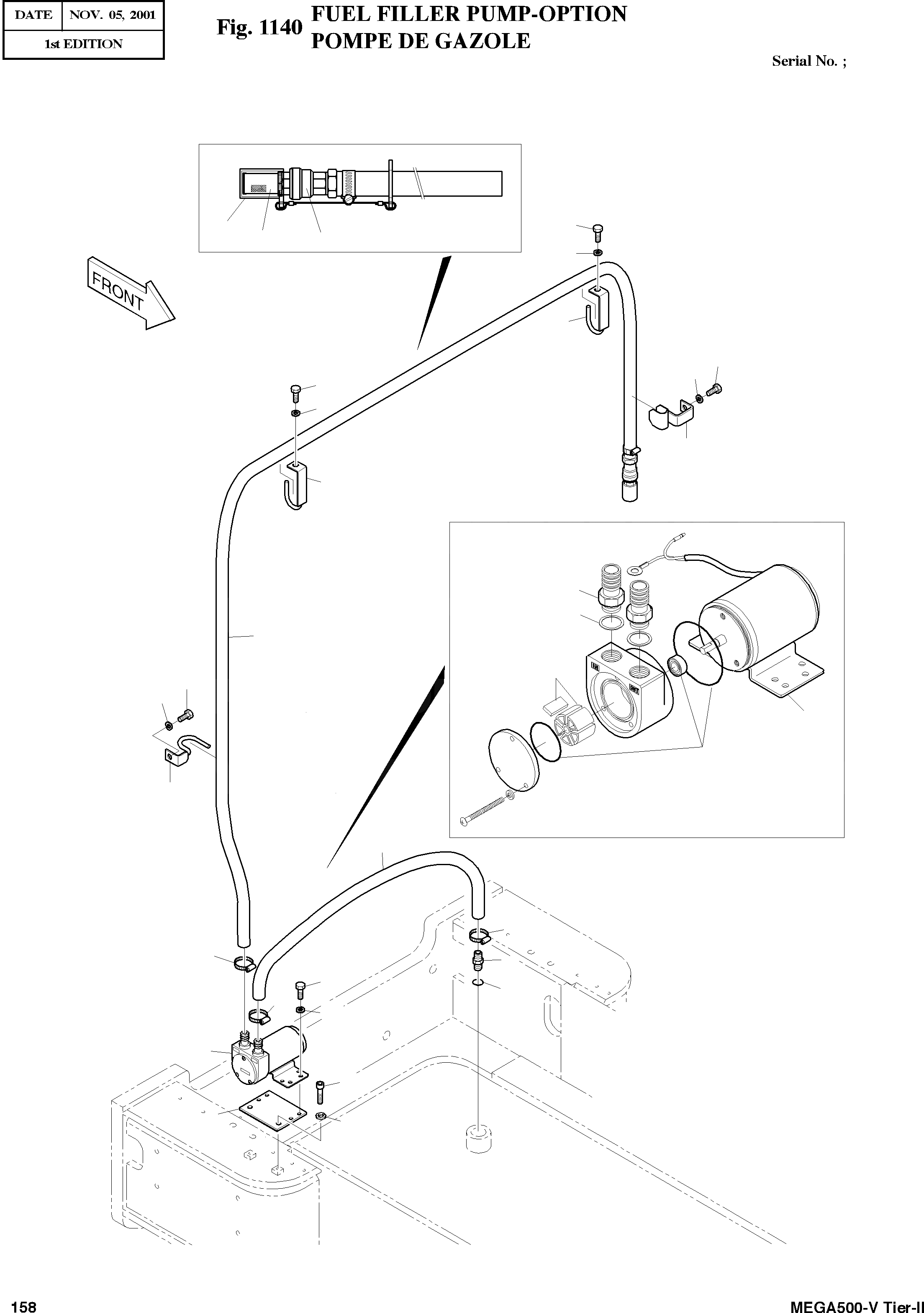

Запчасти Doosan Daewoo FUEL FILLER PUMP-OPTION BODY PARTS

-

401-00337

FUEL PUMP ASS'Y

SC: D

-2шт.

1

2401-1278A

PUMP;FUEL TRANSFER

desc: POMPE A GAZOLE

1шт.

1A

2181-2755B

ADAPTER

desc: . RACCORD ADAPTATEUR

2шт.

1B

S8180321

SEAL;WASHER

desc: . RONDELLE JOINT

2шт.

1C

523-00003

MOTOR;FUEL TRANSFER PUMP

desc: . MOTEUR

1шт.

1D

407-00001

VANE KIT

desc: . KIT

1шт.

1E

2401-1276KT

SEAL KIT

desc: . KIT DE JOINT

1шт.

2

2181-2104D11

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

3

185-00195D6

HOSE 1000L

desc: TUYAU FLEXIBLE

1шт.

4

185-00167D2

HOSE ASS'Y 3000L

desc: TUYAU FLEXIBLE

1шт.

4B

2420-1258

VALVE;CHECK

desc: . CARTOUCHE DE VANNE

1шт.

4C

2471-1152

STRAINER

desc: . CREPINE

1шт.

4D

2160-1336

CAP;STRAINER

desc: . BOUCHON

1шт.

5

S8450023

CLIP;HOSE

desc: COLLIER

3шт.

6

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

7

S2211766

BOLT;SOCKET M10X1.5X18

desc: BOULON A 6 PANS

2шт.

8

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

2шт.

9

4197-2325

BRACKET

desc: SUPPORT

1шт.

10

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

11

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

12

S0511553

BOLT M10X1.5X14

desc: BOULON A 6 PANS

4шт.

13

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

14

150-00002

HOOK

desc: CROCHET

1шт.

15

150-00003

HOOK

desc: CROCHET

2шт.

16

150-00005A

HOOK

desc: CROCHET

1шт.
