Запчасти Doosan Daewoo EMERGENCY STEERING PIPING-OPT BODY PARTS

-

400-00158

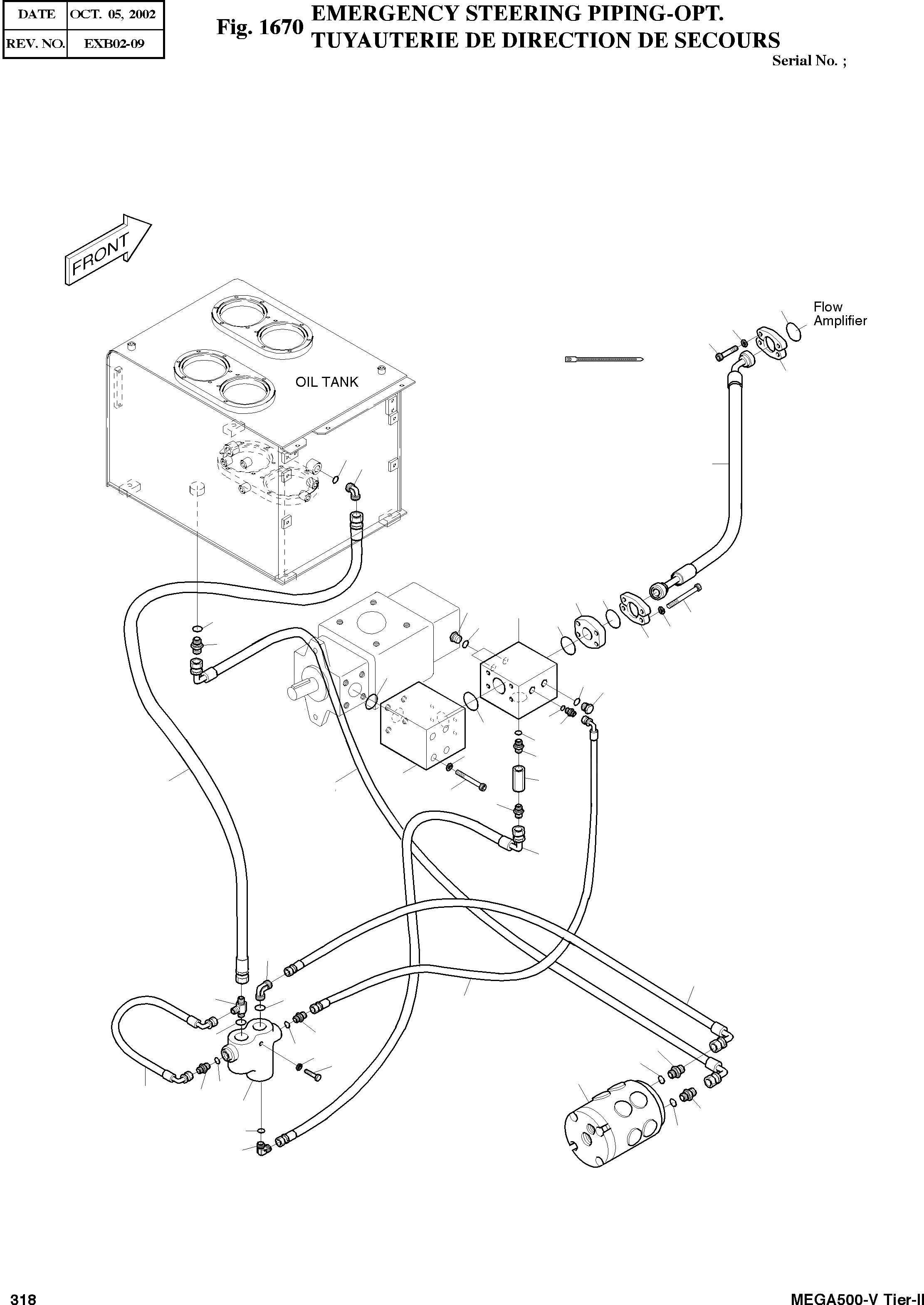

EMERGENCY STEERING PIPING

SC: D

-2шт.

1

4401-9256

PUMP;EMER. STEER

desc: POMPE

1шт.

2

4420-9534

VALVE;PRIORITY

desc: VANNE

1шт.

3

2181-1890D2

PLUG

desc: BOUCHON

3шт.

4

4420-9344A

SENSOR;EMERGENCY

desc: CAPTEUR

1шт.

5

DS2059365

HOSE PF3/4-2100L

desc: TUYAU FLEXIBLE

1шт.

6

2184-1036D156

HOSE PF1/2-1320L

desc: TUYAU FLEXIBLE

1шт.

7

2184-1036D323

HOSE PF3/4-1200L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1026D194

HOSE PF3/4-2500L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1036D165

HOSE PF1/4-1540L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1061D72

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

11

DS2039056

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

12

S0556953

BOLT M8X1.25X80

SERIAL: 2001-2017

2шт.

12

S0556753

BOLT M8X1.25X70

SERIAL: 2018

2шт.

13

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

14

2181-1126D22

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

15

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

16

2181-1920D14

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

17

2181-1951D25

TEE PF1/4-2PF3/8

desc: TE

1шт.

18

2180-1026D23

O-RING

desc: JOINT TORIQUE

5шт.

19

4215-1003D7

FLANGE;HALF

desc: BRIDE

4шт.

20

S2217266

BOLT;SOCKET M12X1.75X130

desc: BOULON A 6 PANS CREUX

4шт.

21

S5110703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

12шт.

22

S8000241

O-RING

desc: JOINT TORIQUE

3шт.

23

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

24

2181-1702D14

ELBOW

desc: COUDE

1шт.

25

423-00021

BLOCK;VALVE

desc: BLOC

1шт.

26

2124-1084D1

CLIP;BAND

desc: TUYAU FLEXIBLE

8шт.

27

S2215366

BOLT M12X1.75X35

desc: BOULON A 6 PANS CREUX

4шт.

28

181-00133

FLANGE

desc: BRIDE

1шт.

29

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

30

2181-1702D2

ELBOW

desc: COUDE

1шт.

31

S2217466

BOLT;SOCKET M12X1.75X150

desc: BOULON A 6 PANS CREUX

4шт.

32

2181-1110D28

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

38

2181-1917D44

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

39

S8180341

PACKING

desc: RONDELLE ETANCHE

1шт.

40

4181-2550

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

41

S8180521

SEAL RING

desc: BAGUE D'ETANCHEITE

1шт.

42

2181-1126D14

ADAPTER

desc: RACCORD

3шт.

43

2181-1702D66

ELBOW

desc: COUDE

1шт.

44

2420-1029

VALVE;CHECK

desc: CLAPET DE RETENUE

1шт.
