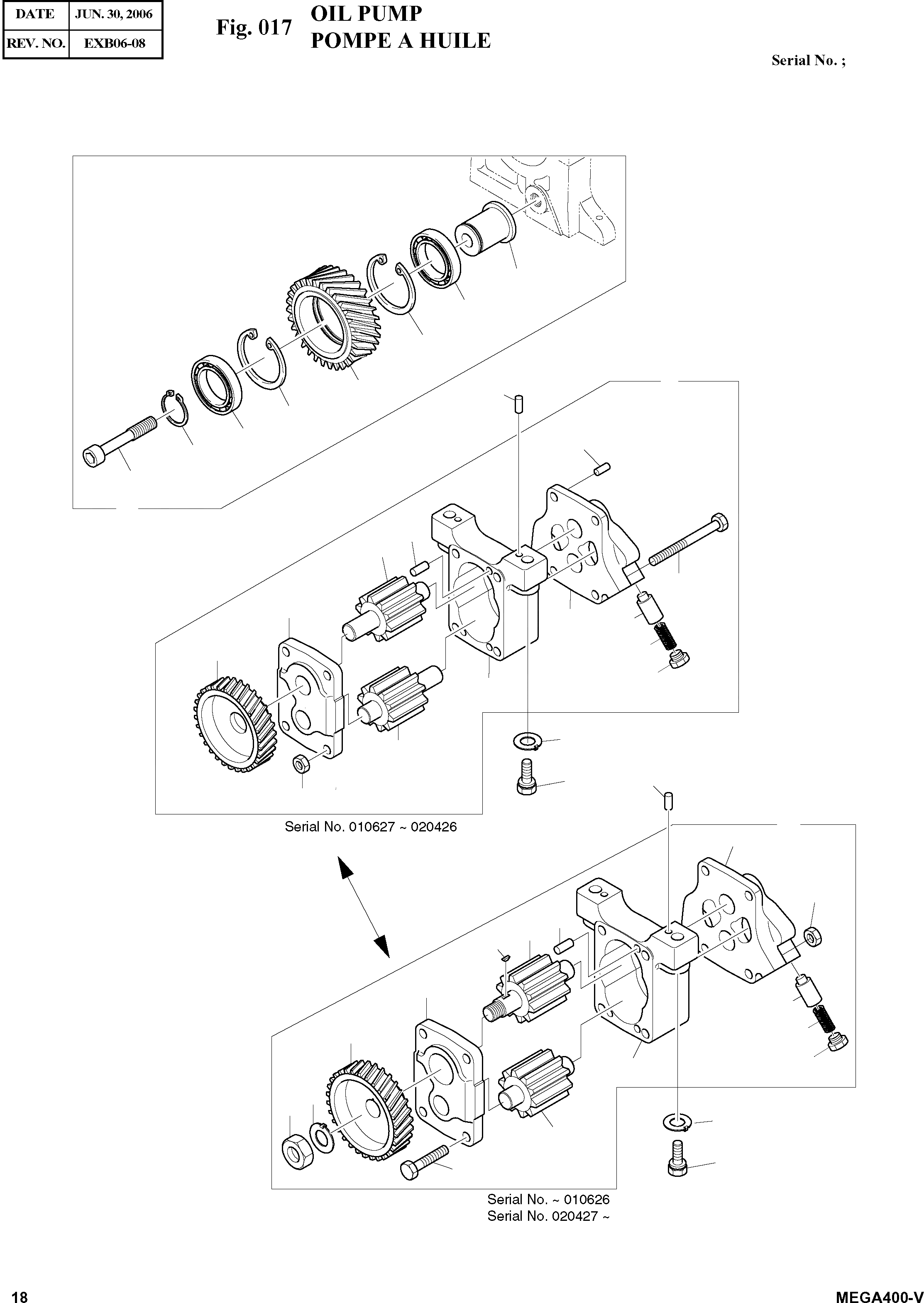

Запчасти Doosan Daewoo OIL PUMP ENGINE PARTS

1

65.05200-6004A

IDLE GEAR ASS'Y(2~7)

SC: D

1шт.

2

65.05204-0003A

GEAR;IDLE

desc: . PIGNON

1шт.

3

06.31420-0314

BEARING;BALL

desc: . ROULEMENT A BILLES

2шт.

4

06.29020-0132

RING;SNAP

desc: . BAGUE ELASTIQUE

2шт.

5

65.05205-0018

PIN;IDLE GEAR

desc: . GOUPILLE DE PIGNON FOU

1шт.

6

06.29010-0125

RING;SNAP 30X2

desc: . CIRCLIP

1шт.

7

65.90030-0009

BOLT;HEX. SOCKET HEAD

desc: . BOULON 6 PANS CREUX

1шт.

8

65.05100-6042A

OIL PUMP ASS'Y(9~23)

SERIAL: 010626

1шт.

8

65.05100-6050

OIL PUMP ASS'Y(9~23)

SERIAL: 020426

1шт.

8

65.05100-6042A

OIL PUMP ASS'Y(9~23)

SERIAL: 020427

1шт.

9

65.05201-0008A

GEAR;OIL PUMP DRIVE

SERIAL: 010626

1шт.

9

65.05201-0010

GEAR;OIL PUMP DRIVE

SERIAL: 020426

1шт.

9

65.05201-0008A

GEAR;OIL PUMP DRIVE

SERIAL: 020427

1шт.

10

65.05102-0015

HOUSING;OIL PUMP

SC: D

1шт.

11

65.05104-5004

GEAR;PUMP

SERIAL: 010626

1шт.

11

65.05104-5008

GEAR;PUMP

SERIAL: 020426

2шт.

11

65.05104-5004

GEAR;PUMP

SERIAL: 020427

1шт.

12

65.05104-5005

GEAR;PUMP

SERIAL: 010626

1шт.

12

65.05104-5005

GEAR;PUMP

SERIAL: 020427

1шт.

13

65.05103-5008

OIL PUMP COVER ASS'Y(RR)

SERIAL: 010626

1шт.

13

65.05103-5020

OIL PUMP COVER ASS'Y(RR)

SERIAL: 020426

1шт.

13

65.05103-5008

OIL PUMP COVER ASS'Y(RR)

SERIAL: 020427

1шт.

14

65.05103-5006A

OIL PUMP COVER ASS'Y(FR)

SERIAL: 010626

1шт.

14

65.05103-5028

OIL PUMP COVER ASS'Y(FR)

SERIAL: 020426

1шт.

14

65.05103-5006A

OIL PUMP COVER ASS'Y(FR)

SERIAL: 020427

1шт.

15

06.22022-0907

PIN;DOWEL

SERIAL: 010626

4шт.

15

06.22022-0909

PIN;DOWEL

SERIAL: 020426

4шт.

15

06.22022-0907

PIN;DOWEL

SERIAL: 020427

4шт.

16

06.01013-9118

BOLT;HEX. M8X65

desc: . BOULON A 6 PANS

4шт.

17

65.90510-0012

NUT;LOCK

desc: . ECROU DE BLOCAGE

4шт.

18

06.29141-0207

KEY;WOODRUFF

SERIAL: 010626

1шт.

18

06.29141-0207

KEY;WOODRUFF

SERIAL: 020427

1шт.

19

06.16050-0311

WASHER;LOCK

SERIAL: 010626

1шт.

19

06.16050-0311

WASHER;LOCK

SERIAL: 020427

1шт.

20

06.11053-9217

NUT;HEX

SERIAL: 010626

1шт.

20

06.11053-9217

NUT;HEX

SERIAL: 020427

1шт.

21

65.05410-0007

PLUNGER

SC: D

1шт.

22

65.97601-0105

SPRING

SC: D

1шт.

23

65.90310-0104

PLUG;SCREW

SC: D

1шт.

24

06.22022-0907

PIN;DOWEL 6M6X10

desc: GOUPILLE D'AJUSTAGE

2шт.

25

06.01013-9215

BOLT;HEX. M10X50

desc: BOULON 6 PANS

2шт.

26

65.90801-0038

WASHER;LOCK

SERIAL: 020226

2шт.

26

65.90801-0018

WASHER;LOCK

SERIAL: 020227

2шт.
