Запчасти Doosan Daewoo PILOT PIPING(2 LEVER-3 SPOOL) OPTION PARTS

-

K1009067

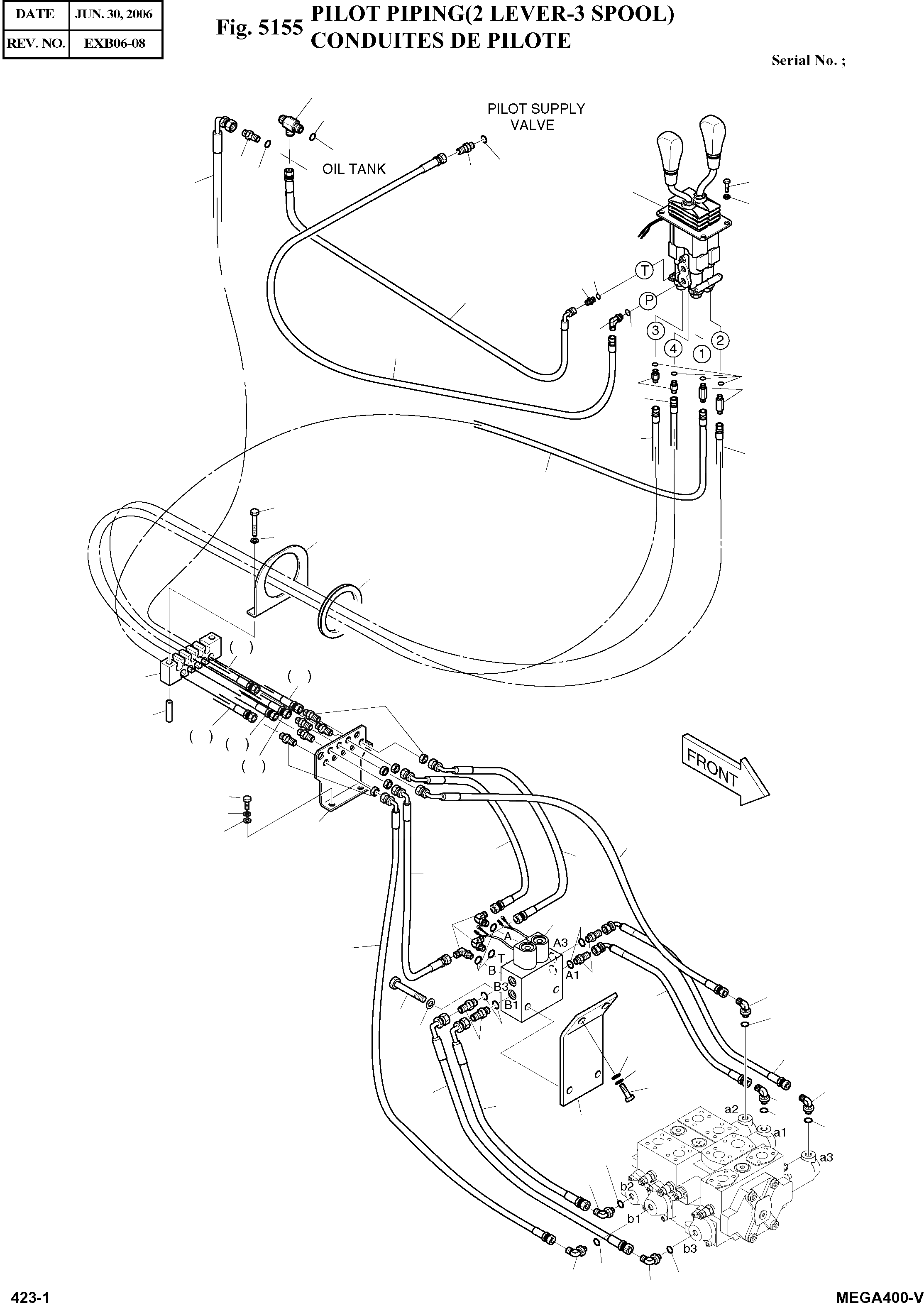

PILOT PIPING (2 LEVER-3 SPOOL)

SC: D

-2шт.

1

420-00361A

VALVE;REMOCON

SERIAL: 3001-3375

1шт.

1

420-00361C

VALVE;REMOCON

SERIAL: 3376

1шт.

2

S2204866

BOLT

desc: BOULON A 6 PANS

4шт.

3

S5110303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

4

2181-1126D49

ADAPTER

desc: ADAPTEUR

2шт.

5

2181-1126D134

ADAPTER

desc: ADAPTEUR

2шт.

6

124-00016

CLAMP; RUBBER

desc: COLLIER

1шт.

7

4114-1717

SPACER;TUBE

desc: BAGUE D'ECARTEMENT

2шт.

8

195-01072

BRACKET

desc: SUPPORT

1шт.

9

2160-1004D57

GROMMET

desc: MANCHON CAOUTCHOUC

1шт.

10

191-00363

PLATE

desc: PLAQUE

1шт.

11

S0556853

BOLT M8X1.25X75

desc: BOULON A 6 PANS

2шт.

12

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

13

S0514953

BOLT

desc: BOULON A 6 PANS

2шт.

14

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

15

S5010713

WASHER;PLAIN M12

desc: RONDELLE

4шт.

16

2181-2718

ADAPTER;JOINT

desc: ADAPTEUR

5шт.

17

S8000141

O-RING

desc: JOINT TORIQUE

16шт.

18

2181-1702D5

ELBOW

desc: COUDE EN S

9шт.

19

2181-1126D7

ADAPTER

desc: ADAPTEUR

6шт.

20

S8040061

O-RING

desc: JOINT TORIQUE

5шт.

22

2184-1036D251

HOSE;90-ST 2500L

desc: TUYAU FLEXIBLE

1шт.

24

2184-1026D221

HOSE;ST-ST 2270L

desc: TUYAU FLEXIBLE

1шт.

25

2184-1026D160

HOSE;ST-ST 1700L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1026D123

HOSE;ST-ST 1650L

desc: TUYAU FLEXIBLE

1шт.

27

2184-1026D160

HOSE;ST-ST 1700L

desc: TUYAU FLEXIBLE

1шт.

29

2184-1026D160

HOSE;ST-ST 1700L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1060D233

HOSE;ST-45 1100L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1060D10

HOSE;ST-45 600L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1060D162

HOSE;ST-45 1150L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1060D10

HOSE;ST-45 600L

desc: TUYAU FLEXIBLE

1шт.

37

S8040081

O-RING

desc: JOINT TORIQUE

1шт.

38

2181-1126D8

ADAPTER

desc: ADAPTEUR

1шт.

39

2181-1702D26

ELBOW

desc: COUDE EN S

1шт.

45

2181-1951D16

TEE

desc: TE

1шт.

46

2184-1036D245

HOSE;ST-90 2200L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1060D17

HOSE;ST-45 660L

desc: TUYAU FLEXIBLE

1шт.

48

2184-1060D28

HOSE;ST-45 850L

desc: TUYAU FLEXIBLE

1шт.

49

2184-1060D20

HOSE;ST-45 800L

desc: TUYAU FLEXIBLE

1шт.

50

2184-1060D123

HOSE;ST-45 1000L

desc: TUYAU FLEXIBLE

1шт.

51

S0556653

BOLT M8X1.25X65

desc: BOULON A 6 PANS

2шт.

52

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

2шт.

53

195-02504A

BRACKET

desc: SUPPORT

1шт.

54

420-00438A

SOLENOID V/V

desc: SOUPAPE A SOLENOIDE

1шт.

55

2184-1060D7

HOSE;ST-45 550L

desc: TUYAY FLEXIBLE

1шт.
