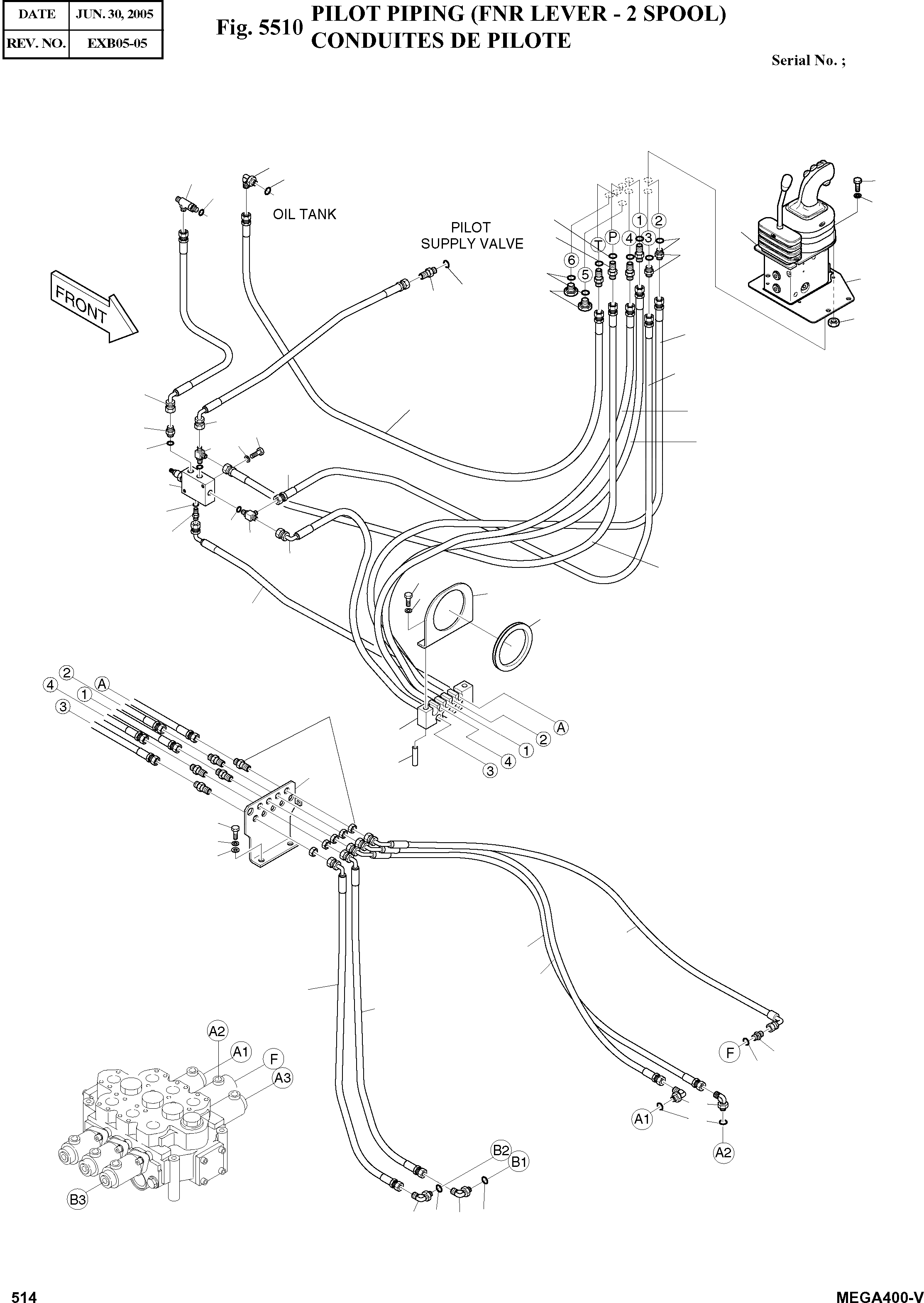

Запчасти Doosan Daewoo PILOT PIPING (FNR LEVER - 2 SPOOL) OPTION PARTS

-

K1006825

PILOT PIPING

SC: D

-2шт.

1

426-00240

VALVE;REMOCON

desc: VANNE DE COMMAND A DISTANCE

1шт.

2

S2204866

BOLT M6X1.0X20

desc: BOULON A 6 PANS CREUX

4шт.

3

S5110303

WASHER

desc: RONDELLE ELASTIQUE

4шт.

4

2181-1917D57

ADAPTER

desc: ADAPTEUR

4шт.

5

S8180211

SEAL;RING

desc: BAGUE D'ETANCHEITE

8шт.

6

124-00016

CLAMP;RUBBER

desc: COLLIER

1шт.

7

4114-1717

SPACER

desc: BAGUE D'ECARTEMENT

2шт.

8

195-01072

BRACKET

desc: SUPPORT

1шт.

9

2160-1004D57

GROMMET

desc: MANCHON CAOUTCHOUC

1шт.

10

191-00363

PLATE

desc: PLAQUE

1шт.

11

S0556853

BOLT M8X1.25X75

desc: BOULON A 6 PANS

2шт.

12

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

13

S0514953

BOLT M12X1.75X22

desc: BOULON A 6 PANS

2шт.

14

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

15

S5010713

WASHER

desc: RONDELLE

2шт.

16

2181-2718

ADAPTER;JOINT 2PF3/8

desc: ADAPTEUR

5шт.

17

S8000141

O-RING

desc: JOINT TORIQUE

8шт.

18

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

5шт.

19

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: ADAPTEUR

1шт.

20

420-00081

VALVE;SEQUENCE

desc: VALVE D'CORDRE

1шт.

21

S0556353

BOLT M8X1.25X50

desc: BOULON A 6 PANS

2шт.

22

S8000111

O-RING

desc: JOINT TORIQUE

4шт.

23

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: ADAPTEUR

2шт.

24

2181-1951D20

TEE PFO1/4X2PF3/8

desc: TE

2шт.

25

621-02609

PLATE

desc: PLAQUE

1шт.

26

2184-1026D448

HOSE PF3/8-2000L

desc: TUYAU FLEXIBLE

2шт.

27

2184-1026D248

HOSE PF3/8-2500L

desc: TUYAU FLEXIBLE

1шт.

28

2181-1917D55

ADAPTER PFO1/4-PF3/8

desc: ADAPTEUR

2шт.

29

2184-1026D221

HOSE PF3/8-2270L

desc: TUYAU FLEXIBLE

1шт.

30

2184-1026D160

HOSE PF3/8-1700L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1026D123

HOSE PF3/8-1650L

desc: TUYAU FLEXIBLE

1шт.

32

2181-2667

PLUG

desc: BOUCHON

2шт.

34

2184-1036D229

HOSE PF3/8-1400L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1036D268

HOSE PF3/8-1900L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1036D113

HOSE PF3/8-1730L

desc: TUYAU FLEXIBLE

1шт.

37

2184-1036D209

HOSE PF3/8-850L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1060D162

HOSE PF3/8-1150L

desc: TUYAU FLEXIBLE

2шт.

39

2184-1060D163

HOSE PF3/8-1250L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1076D74

HOSE PF3/8-1300L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1060D232

HOSE PF3/8-1200L

desc: TUYAU FLEXIBLE

1шт.

43

181-00144D5

ADAPTER PFO3/8-PF3/8

desc: ADAPTEUR

1шт.

44

2181-1951D16

TEE

desc: TE

1шт.

46

S4012333

NUT M8X1.25

desc: ECROU

4шт.
