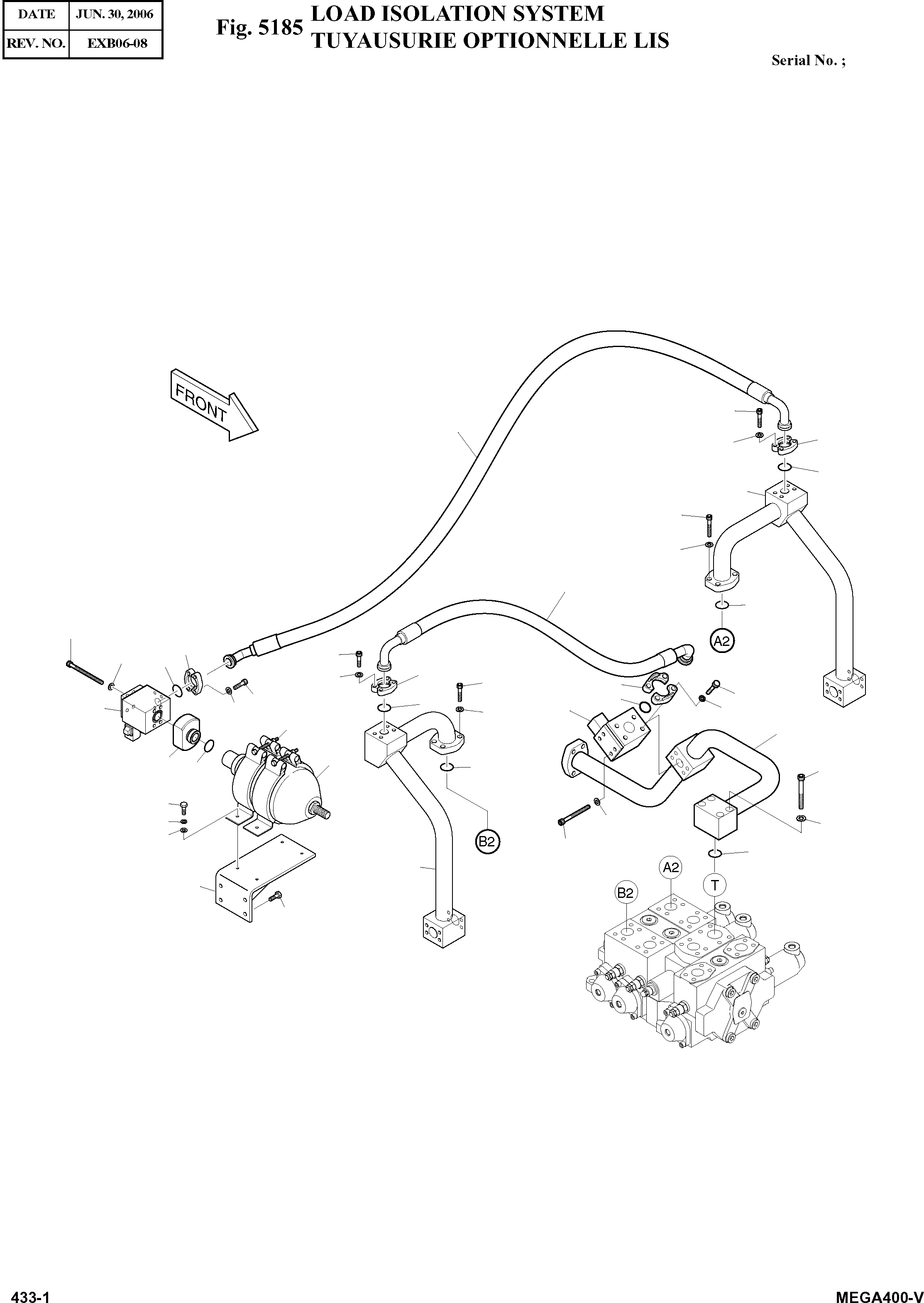

Запчасти Doosan Daewoo LOAD ISOLATION SYSTEM OPTION PARTS

-

K1009012

LIS PIPING

SC: D

-2шт.

1

460-00037B

ACCUMULATOR KIT (20BAR)

desc: RESERVOIR

1шт.

2

4420-9446C

VALVE;SOLENOID

desc: SOUPAPE A SOLENOIDE

2шт.

3

181-00379A

ADAPTER

desc: ADAPTEUR

1шт.

4

S8000381

O-RING

desc: JOINT TORIQUE

1шт.

5

K1009013

PIPE

desc: TUYAU

1шт.

6

K1009014

PIPE

desc: TUYAU

1шт.

7

K1008722

PIPE

desc: TUYAU

1шт.

8

DS2045384

HOSE PF1-1120L

desc: TUYAU FLEXIBLE

1шт.

9

DS2045385

HOSE PF1-800L

desc: TUYAU FLEXIBLE

1шт.

10

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

11

2181-9078

FLANGE;SPLIT

desc: BRIDE

8шт.

12

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON DE PLOT

16шт.

13

2180-1026D23

O-RING

desc: JOINT TORIQUE

2шт.

14

S2215466

BOLT;SOCKET M12X1.75X40

desc: BOULON DE PLOT

8шт.

15

S5110703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

12шт.

16

2180-1026D24

O-RING

desc: JOINT TORIQUE

1шт.

17

S2214266

BOLT;SOCKET M10X1.5X130

desc: BOULON DE PLOT

8шт.

18

S5110603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

24шт.

19

195-00622A

BRACKET

desc: SUPPORT

1шт.

20

2120-2196D4

BOLT;SET M10X1.5X30

desc: BOULON A 6 PANS

4шт.

21

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

22

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

23

2114-1058D29

WASHER

desc: RONDELLE PLATE

4шт.

24

S2216166

BOLT;SOCKET

desc: BOULON DE PLOT

4шт.

25

124-00275A

CLAMP;ACCUMULATOR

desc: COLLIER

2шт.
