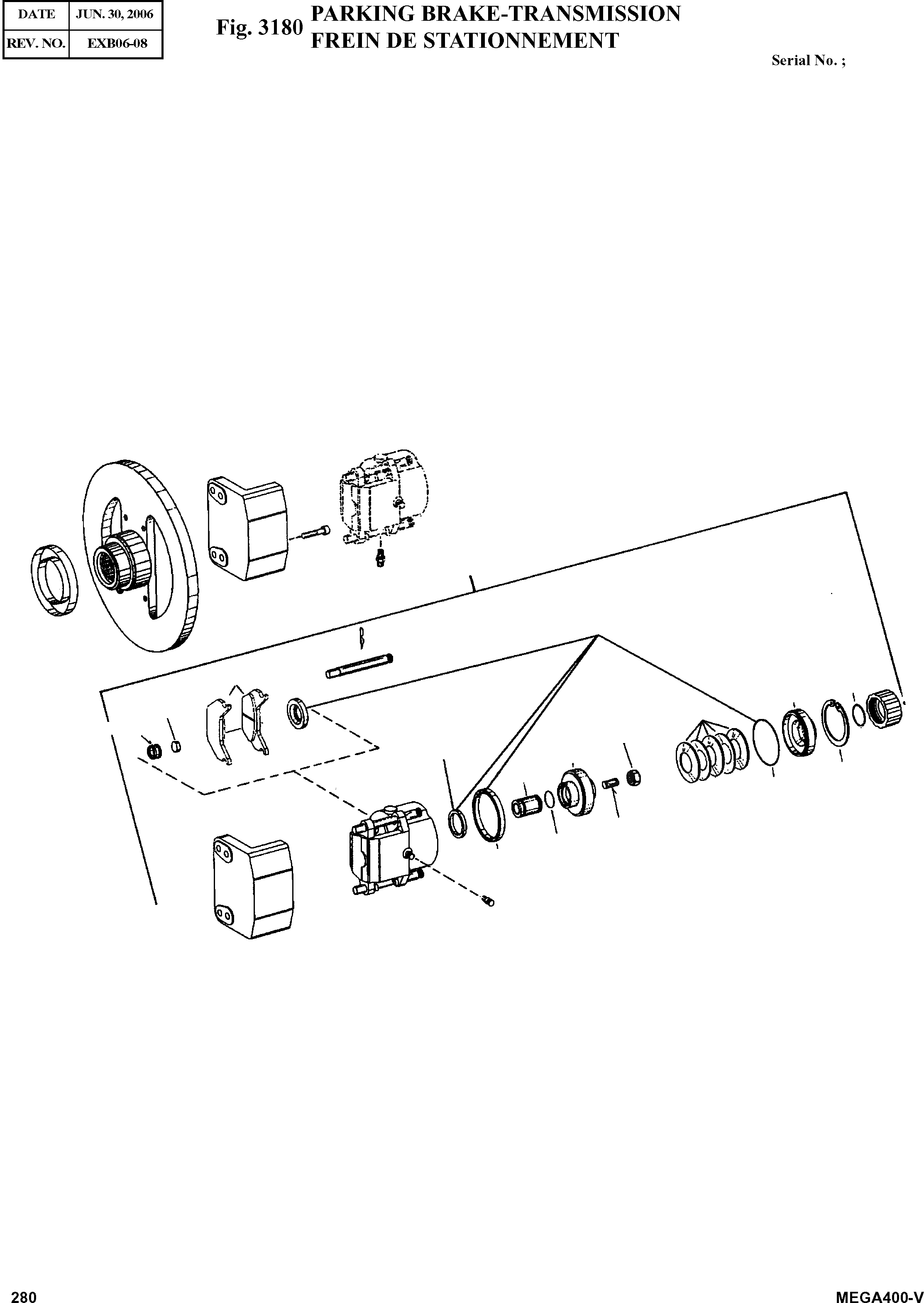

Запчасти Doosan Daewoo PARKING BRAKE-TRANSMISSION HYDRAULIC PARTS

-

K9000130

PARKING BRAKE

SC: D

1шт.

10

K9000003

PARKING BRAKE ASS'Y

desc: FREIN DE STATIONNEMENT

1шт.

1

K9000007

BRAKE

desc: . FREIN

1шт.

2

K9000021

PISTON

desc: .. PISTON

1шт.

3

K9000022

RING;PRESSURE

desc: .. BAGUE D'ETANCHEITE

1шт.

4

K9000117

PIN;PRESSURE

desc: .. GOUPILLE

1шт.

6

K9000118

DAUERMAGNET

desc: .. DAUERMAGNET

2шт.

7

K9000119

RING;CLEARANCE

desc: .. BAGUE D'ETANCHEITE

2шт.

11

K9000121

SPRING;CUP

desc: .. RESSORT

5шт.

12

K9000120

O-RING

desc: .. JOINT TORIQUE

1шт.

14

2.115-00294

RING;RETAINING

desc: .. ANNEAU DE SOUTIEN

1шт.

15

K9000026

CAP;SCREW

desc: .. CHAPEAU

1шт.

16

K9000027

O-RING

desc: .. JOINT TORIQUE

1шт.

17

K9000005

BREATHER

desc: .. RENIFLARD

1шт.

18

K9000025

SCREW;SET

desc: .. VIS

1шт.

19

K9000051

NUT;HEX

desc: .. ECROU

1шт.

20

K9000018

PIN

desc: .. GOUPILLE

1шт.

21

K9000019

PIN;SPRING COTTER

desc: .. GOUPILLE

2шт.

30

K9000010

BRAKE LINING SET

desc: .. FREIN

1шт.

31

K9000015

SEAL KIT

desc: .. KIT DE JOINT

1шт.

31A

K9000016

Ў¦ CAP;DUST

SC: D

1шт.

31B

K9000017

Ў¦ U-RING

SC: D

1шт.

31C

K9000023

Ў¦ U-RING

SC: D

1шт.

31D

K9000024

Ў¦ O-RING

SC: D

1шт.

32

K9000020

BEARING

desc: .. ROULEMENT

1шт.

60

K9000160

FLANGE;OUTPUT

desc: BRIDE

1шт.

70

2.461-00010

SHEET;SCREEN

desc: TOLE DE PROT.

1шт.

78

K9000046

SCREW

desc: VIS

4шт.

80

K9000052

UNION;PIPE

desc: TUYAU

1шт.
