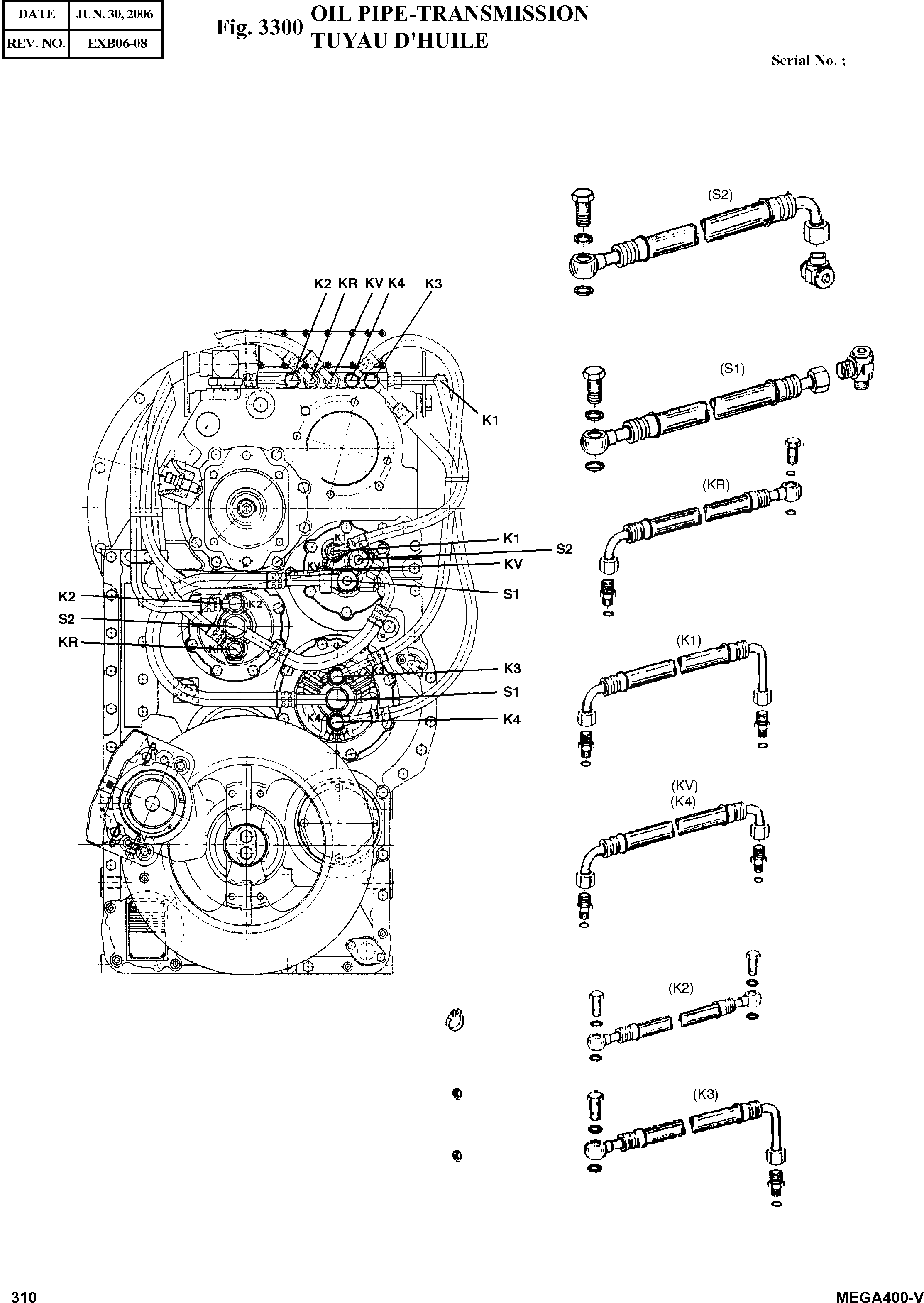

Запчасти Doosan Daewoo OIL PIPE-TRANSMISSION HYDRAULIC PARTS

-

K9000131

OIL PIPE

SC: D

1шт.

10

2.181-00457

UNION;PIPE

desc: TUYAU

2шт.

24

K9000008

PIPE;HOSE

desc: TUYAU

1шт.

30

K9000004

PIPE;HOSE

desc: TUYAU

1шт.

81

2.120-00691

SCREW

desc: VIS

1шт.

82

2.180-00346

O-RING

desc: JOINT TORIQUE

1шт.

90

2.180-00350

O-RING

desc: JOINT TORIQUE

2шт.

102

2.180-00346

O-RING

desc: JOINT TORIQUE

1шт.

151

2.120-00793

SCREW

desc: VIS

1шт.

152

1.180-00103

O-RING

desc: JOINT TORIQUE

1шт.

154

2.181-00438

SOCKET

desc: SOCKET

8шт.

155

1.180-00103

O-RING

desc: JOINT TORIQUE

8шт.

220

K9000116

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

230

2.184-00077

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

250

2.184-00076

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

260

2.184-00071

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

290

K9000122

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

300

K9000006

HOSE;PIPE

desc: TUYAU FLEXIBLE

1шт.

431

2.120-00690

SCREW

desc: VIS

3шт.

432

1.180-00103

O-RING

desc: JOINT TORIQUE

3шт.

440

1.180-00102

O-RING

desc: JOINT TORIQUE

4шт.

460

2.124-00085

CLAMP;HOSE

desc: FIXATION DE TUYAU

2шт.

470

1.114-00263

WASHER

desc: RONDELLE

1шт.

520

2.121-00255

NUT;HEX

desc: ECROU

1шт.

530

K9000113

SCREW

desc: VIS

1шт.
