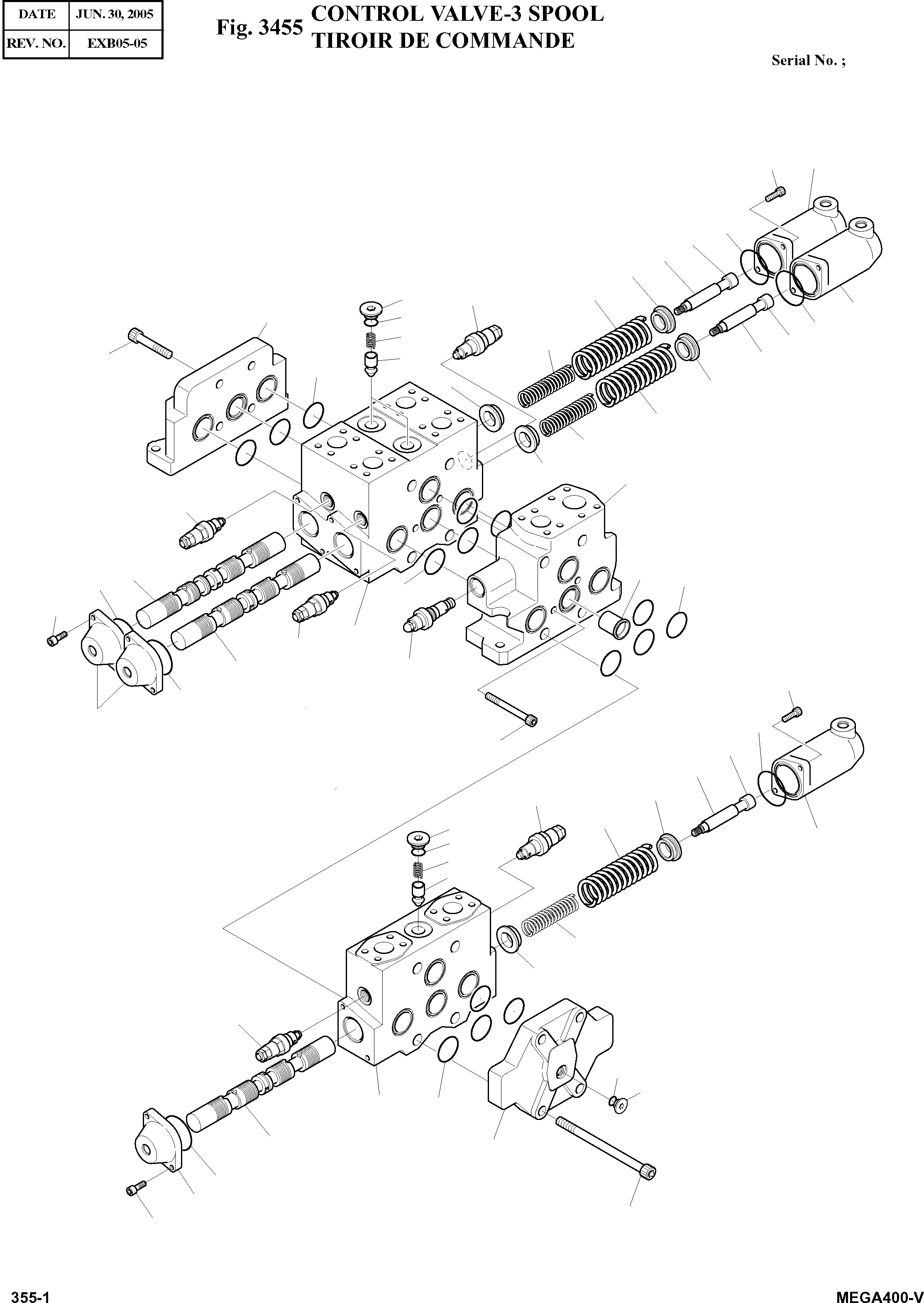

Запчасти Doosan Daewoo CONTROL VALVE-3 SPOOL HYDRAULIC PARTS

-

K1007988

CONTROL VALVE-3 SPOOL

desc: TIROIR DE COMMANDE

1шт.

101

-

SECTION;VALVE

SC: D

1шт.

102

K9001256

SECTION;P END

desc: BLOC

1шт.

103

K9001257

COVER;END

desc: COUVERCLE

1шт.

104

-

CASING

SC: D

1шт.

161

S8000501

O-RING

desc: JOINT TORIQUE

15шт.

201

K9001258

COVER;SPRING

desc: COUVERCLE

3шт.

202

K9001259

COVER;SPRING

desc: COUVERCLE

3шт.

204

K9001260

PLATE

desc: PLAQUE

1шт.

253

2181-1890D2

PLUG

desc: BOUCHON

1шт.

261

S8010651

O-RING

desc: JOINT TORIQUE

3шт.

263

S8010551

O-RING

desc: JOINT TORIQUE

3шт.

264

S8000111

O-RING

desc: JOINT TORIQUE

1шт.

273

S2212061

SCREW

desc: VIS

12шт.

301

-

SPOOL

SC: D

1шт.

302

-

SPOOL

SC: D

1шт.

303

-

SPOOL

SC: D

1шт.

332

K9001261

SEAT

desc: SIEGE

6шт.

335

K9001262

STOPPER

desc: CHAPEAU

2шт.

336

K9001263

BOLT

desc: BOULON

3шт.

337

K9001264

STOPPER

desc: CHAPEAU

1шт.

371

K9001265

SPRING

desc: RESSORT

3шт.

372

K9001266

SPRING

desc: RESSORT

1шт.

373

K9001267

SPRING

desc: RESSORT

2шт.

511

K9001268

POPPET

desc: POPPET

3шт.

522

K9001269

SPRING

desc: RESSORT

3шт.

551

2181-1890D6

PLUG

desc: BOUCHON

3шт.

561

S8000291

O-RING

desc: JOINT TORIQUE

3шт.

601

K9001270

MAIN RELIEF VALVE ASS'Y

desc: SOUPAPE DE SECURITE

1шт.

602

K9001271

OVER LOAD RELIEF V/V ASS'Y

desc: SOUPAPE DE SECURITE

4шт.

603

K9001272

OVER LOAD RELIEF V/V ASS'Y

desc: SOUPAPE DE SECURITE

1шт.

702

K9001273

SLEEVE

desc: SLEEVE

1шт.

971

K9001274

SCREW

desc: VIS

4шт.

972

S2224871

SCREW

desc: VIS

4шт.

973

S2210561

SCREW

desc: VIS

2шт.
