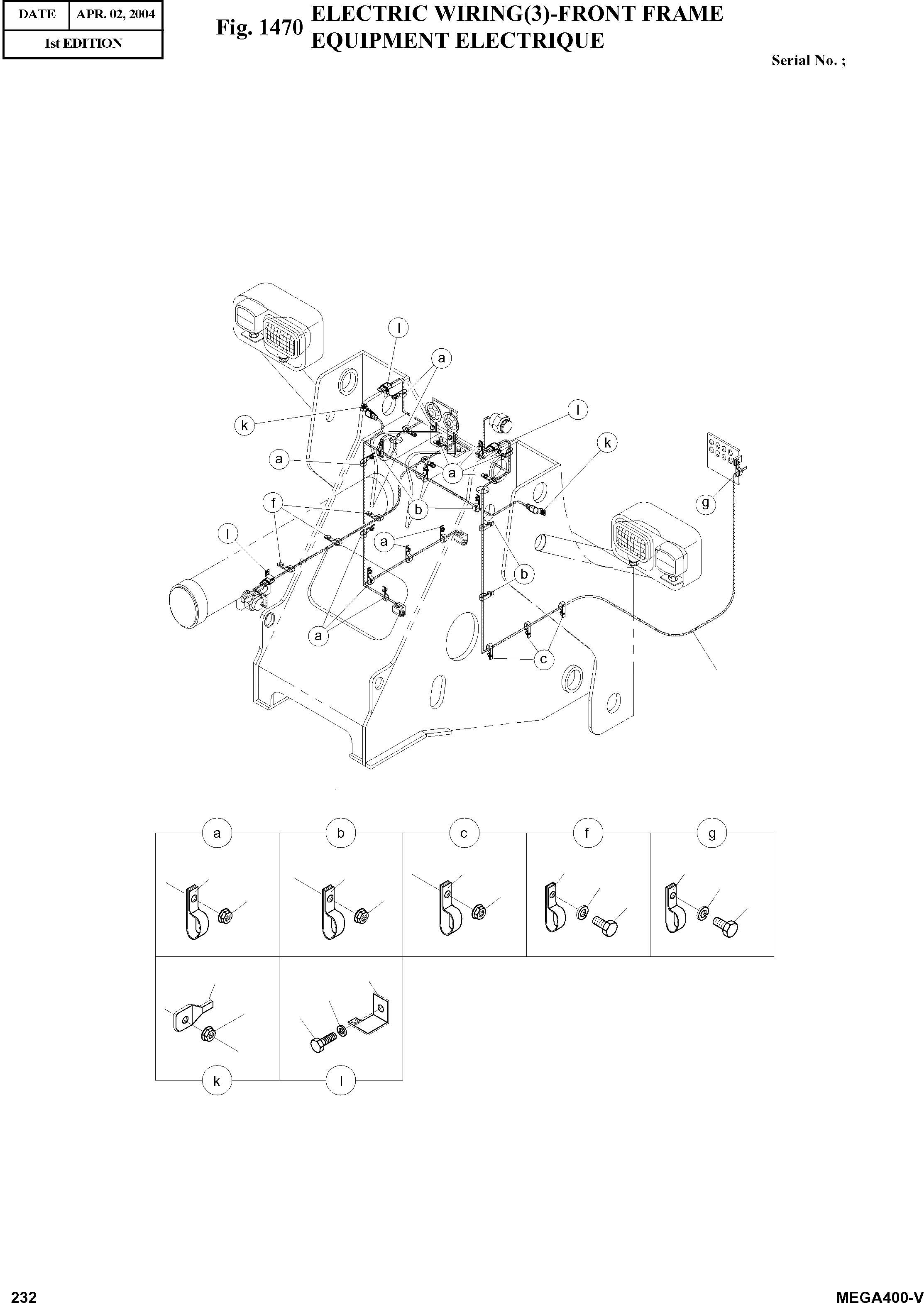

Запчасти Doosan Daewoo ELECTRIC WIRING(3)-FRONT FRAME BODY PARTS

-

500-00036

ELECTRIC PARTS(3)

SC: D

-2шт.

4

530-00445

HARNESS;FRONT FRAME

desc: FAISCEAU

1шт.

21

2195-3500

BRACKET;HOUSING

desc: SUPPORT

3шт.

22

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

3шт.

23

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

3шт.

25

2197-1661

BRACKET;HOUSING

desc: SUPPORT

2шт.

27

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

4шт.

28

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

30

2124-1509D1

CLIP D12/M8

desc: ATTACHE

16шт.

31

2124-1509D2

CLIP D18/M8

desc: ATTACHE

5шт.

32

2124-1509D3

CLIP D24/M8

desc: ATTACHE

4шт.

35

2121-1305

NUT M8X1.25

desc: ECROU

23шт.
