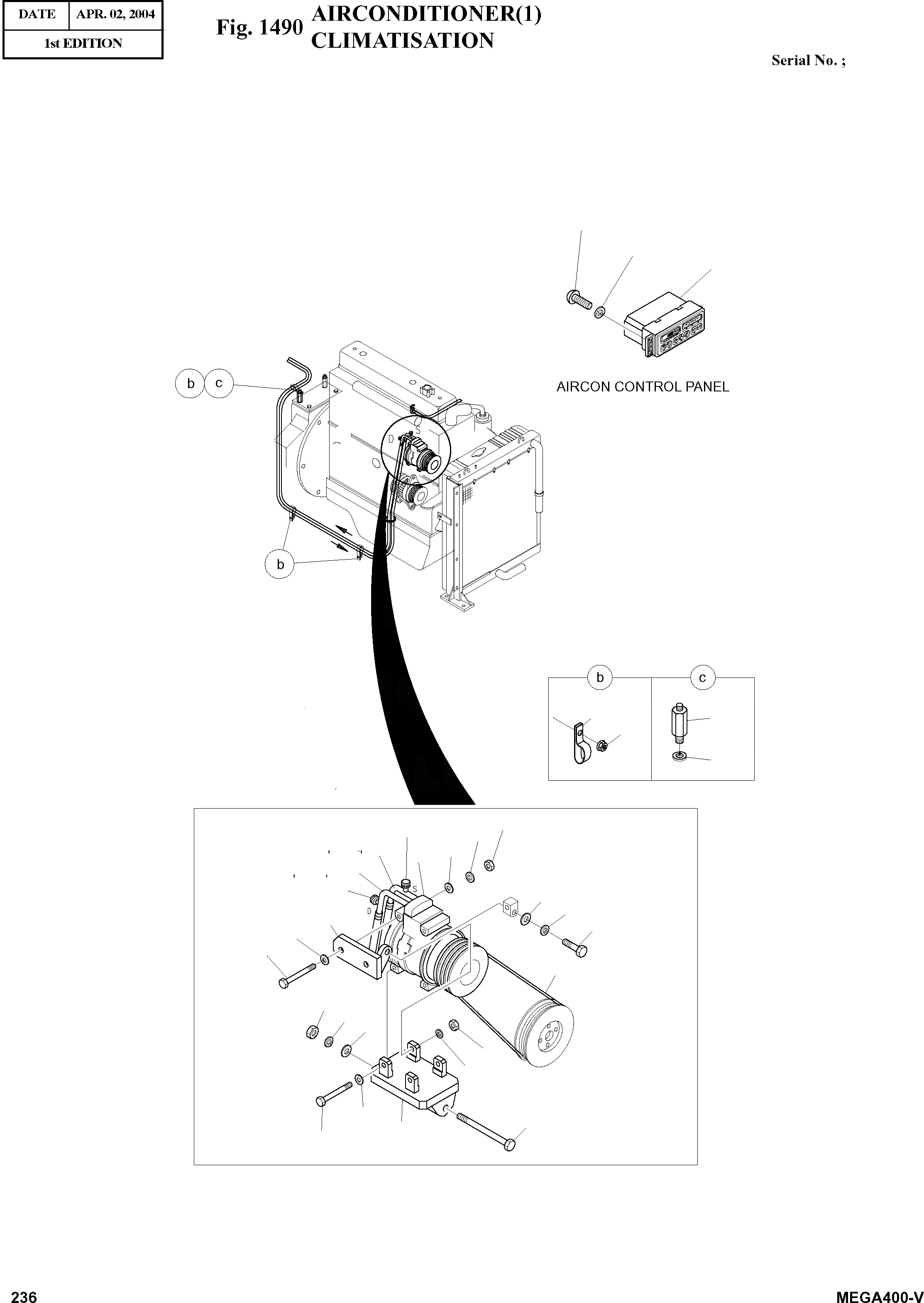

Запчасти Doosan Daewoo AIRCONDITIONER(1) BODY PARTS

-

920-00014

COOLER & HEATER ASS'Y

SC: D

-2шт.

1

2543-9031A

PANEL;AIRCON CONTROL

desc: MODULE DE COMMANDE

1шт.

2

S3450583

SCREW M4X0.7X12

desc: VIS

4шт.

3

S5000113

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

4

2208-6013B

COMPRESSOR

desc: COMPRESSEUR

1шт.

5

S0557553

BOLT M8X1.25X110

desc: BOULON A 6 PANS

2шт.

6

S0557453

BOLT M8X1.25X105

desc: BOULON A 6 PANS

2шт.

7

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

8

S5010513

WASHER;PLAIN

desc: RONDELLE PLATE

6шт.

9

S4012533

NUT M8X1.25

desc: ECROU

4шт.

10

2106-1019D20

V-BELT 4PK 1540L

desc: COURROIE

1шт.

11

195-00465A

BRACKET;COMPRESSOR(LOWER)

desc: SUPPORT

1шт.

12

2120-1036D14

BOLT M10X1.5X175

desc: BOULON A 6 PANS

1шт.

13

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

14

S4012633

NUT

desc: ECROU

1шт.

15

195-00464A

BRACKET;COMPRESSOR(UPPER)

desc: SUPPORT

1шт.

16

S0760753

BOLT M12X1.25X50

desc: BOULON A 6 PANS

1шт.

17

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

18

2114-1058D54

WASHER

desc: RONDELLE PLATE

1шт.

19

185-00074B

HOSE;DISCHARGE 3450L

desc: TUYAU FLEXIBLE

1шт.

19A

2180-6089

O-RING(CONDENSER)

desc: . JOINT TORIQUE

1шт.

19B

2180-6088

O-RING(COMPRESSOR)

desc: . JOINT TORIQUE

1шт.

19C

1.161-00018

CAP;CHECK PORT(H)

desc: . CHAPEAU

1шт.

20

185-00075B

HOSE;SUCTION 4100L

desc: TUYAU FLEXIBLE

1шт.

20A

2180-6086

O-RING(COMPRESSOR)

desc: . JOINT TORIQUE

1шт.

20B

2180-6087

O-RING(EVAPORATOR)

desc: . JOINT TORIQUE

1шт.

20C

1.161-00019

CAP;CHECK PORT(L)

desc: . CHAPEAU

1шт.

28

2114-1058D1

WASHER

desc: RONDELLE PLATE

1шт.

44

2124-1509D6

CLIP D42/M8

desc: ATTACHE

3шт.

45

2121-1305

NUT

desc: ECROU

3шт.

46

2120-2185A

BOLT;STUD M10X1.5X15/M8

desc: BOULON DE GOUJON

1шт.

47

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.
