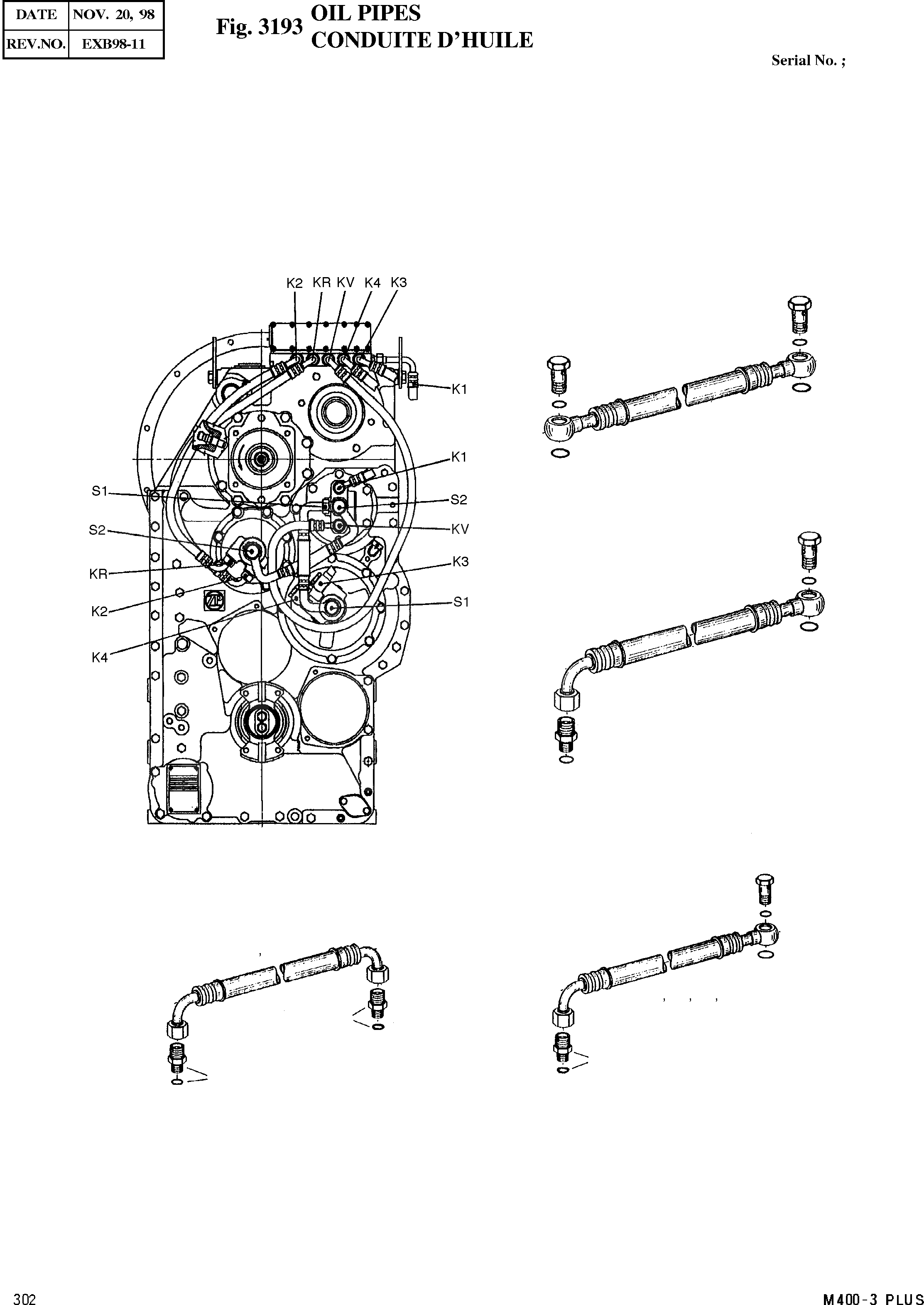

Запчасти Doosan Daewoo OIL PIPES HYDRAULIC PARTS

10

0737 835 182

UNION SCREW

desc: VIS

4шт.

20

0634 306 202

O-RING

desc: JOINT TORIQUE

4шт.

40

4475 280 028

SCREW IN SLEEVE

desc: RACCORD FILETE

8шт.

70

0634 306 523

O-RING

desc: JOINT TORIQUE

4шт.

80

0737 835 185

UNION SCREW

desc: VIS

3шт.

90

0634 303 259

O-RING

desc: JOINT TORIQUE

3шт.

102

0634 304 287

O-RING

desc: JOINT TORIQUE

3шт.

200

0501 209 068

OIL PIPE(S2)

desc: TUYAU D'HUILE

1шт.

210

0501 209 069

HOSE PIPE(S1)

desc: TUYAU

1шт.

220

0750 147 216

HOSE PIPE(KV)

desc: TUYAU

1шт.

230

0899 310 722

HOSE PIPE(KR)

desc: TUYAU

1шт.

250

0501 210 013

HOSE PIPE(K1)

desc: TUYAU

1шт.

260

0501 207 968

HOSE PIPE(K2)

desc: TUYAU

1шт.

290

0750 147 125

HOSE PIPE(K3)

desc: TUYAU

1шт.

300

0750 147 125

HOSE PIPE(K4)

desc: TUYAU

1шт.

410

0637 880 804

UNION PIPE

desc: RACCORD A VIS

1шт.

420

0634 304 287

O-RING

desc: JOINT TORIQUE

1шт.
